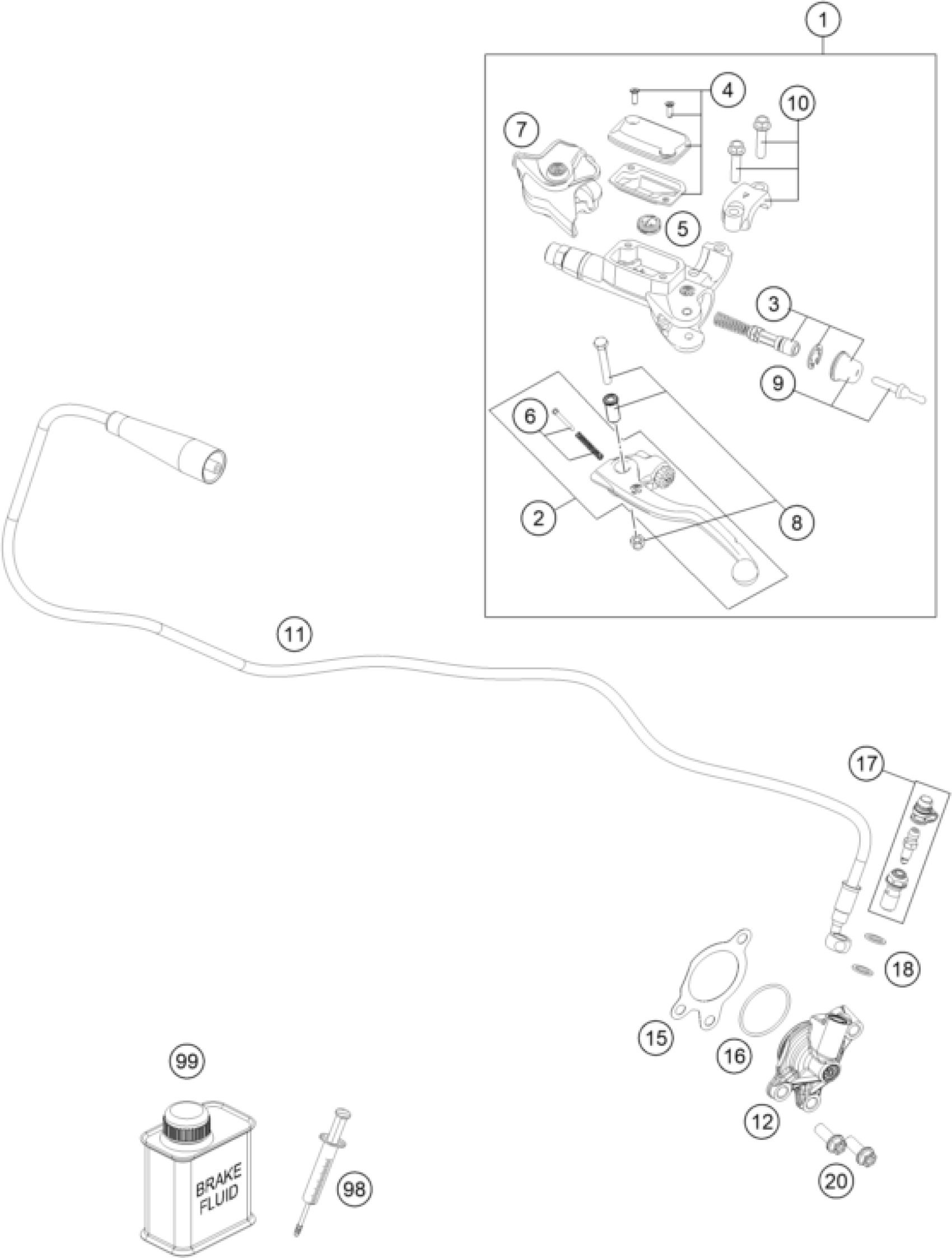

KTM 250 XC-F 2023 CLUTCH CONTROL Diagram

#

Description

Price

1

MASTER CYLINDER CPL.

79202030044

Unavailable

2

Clutch lever cmpl. BREMBO 06

54802031000

Unavailable

3

REP. KIT PISTON 9MM

79202032044

Unavailable

4

COVER HYD. CLUTCH CPL. 2014

5480200310030

Unavailable

5

VALVE

54802051000

Unavailable

6

BOLT KPL.

54802052000

Unavailable

7

PROTECTION CAP 06

54802037000

Unavailable

8

Lever screw cmpl. 06

54802038100

Unavailable

9

Push rod cmpl.

54802046000

Unavailable

10

CLAMP CPL. 06

54802005100

Unavailable

11

CLUTCH PIPE

79232063000

Unavailable

99

Brake fluid DOT5.1 0,25L

00062030000

Unavailable

12

OUTPUT CYLINDER CPL.

79232061044

Unavailable

15

Seal, slave cylinder

79232065100

Unavailable

16

O-ring 30x1.5 NBR 70

0770300015

Unavailable

17

BLEEDER SCREW CPL.

79032064000

Unavailable

18

SEAL RING CU DIN7603- 8X12X1

0603082121

Unavailable

98

VENT INJEKTION HYDR. CLUTCH

50329050000

Unavailable

20

HH collar screw M6x16 TX30

0025060166

Unavailable
