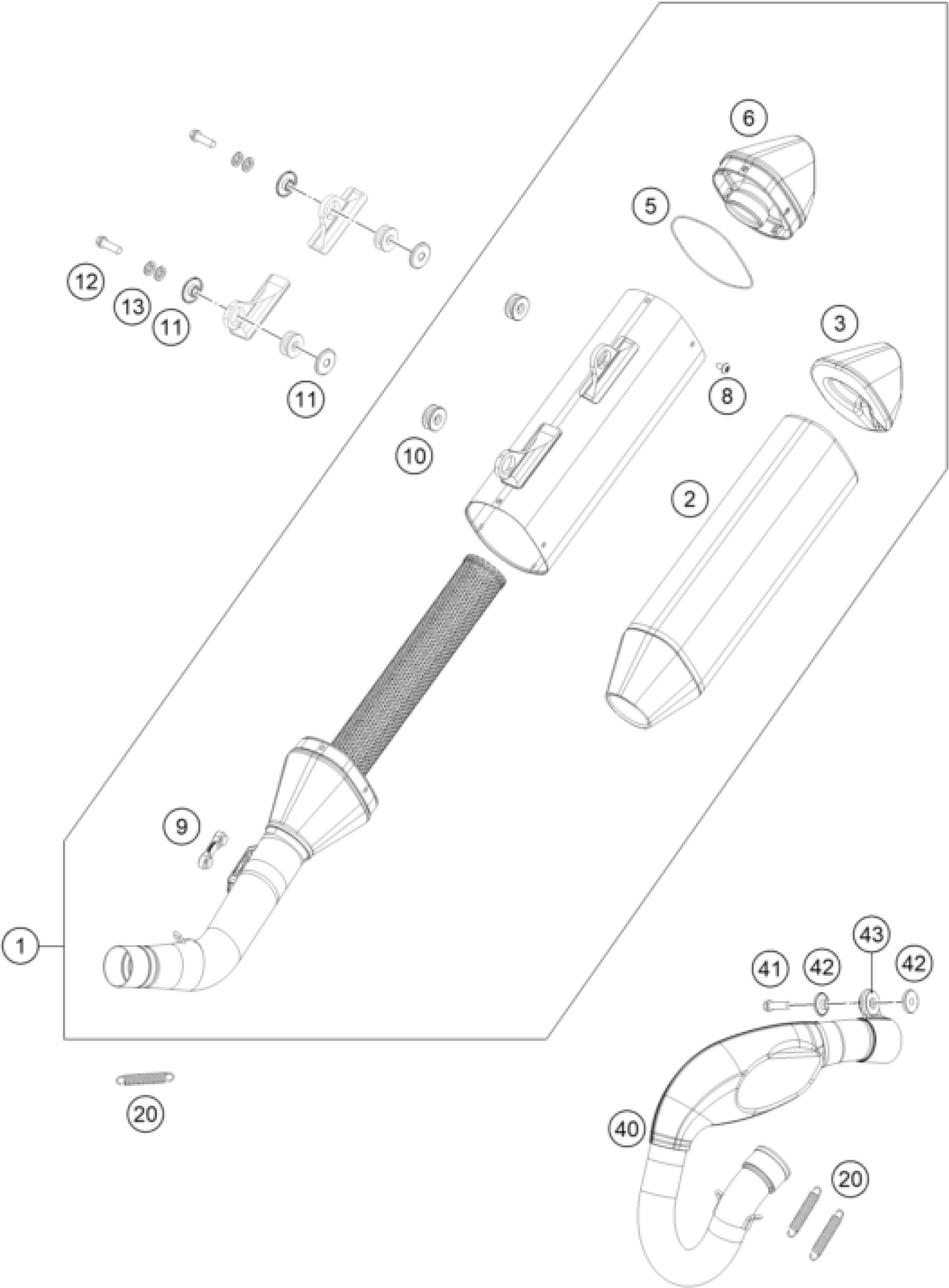

KTM 250 XC-F 2019 EXHAUST SYSTEM Diagram

#

Description

Price

1

Silencer

79105079000

Unavailable

2

Rockwool preformed

79105078520

Unavailable

3

Rockwool preformed

79105078080

Unavailable

5

O-RING 80,00X2,00 VITON

0770800021

Unavailable

6

Endcap cpl.

79105079060

Unavailable

8

SCREW TORX M5X10

78105081010

Unavailable

9

exhaust spacer

79105098000

Unavailable

10

DAMP. COMPON. BLACK

77205068000

Unavailable

11

BUSHING 7.5x12x28x8.3 11

77205169000

Unavailable

12

HH collar screw M6x35 TX30

0025060356

Unavailable

13

Pair of washers M6 NORDLOCK

50233041000

Unavailable

20

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

Unavailable

40

exhaust mainfold 250 SX-F

79105007000

Unavailable

41

HH collar screw M8x25

0025080256

Unavailable

42

BUSHING 8.5x12x28x8.3

77805069000

Unavailable

43

Damper gray

79105068000

Unavailable
