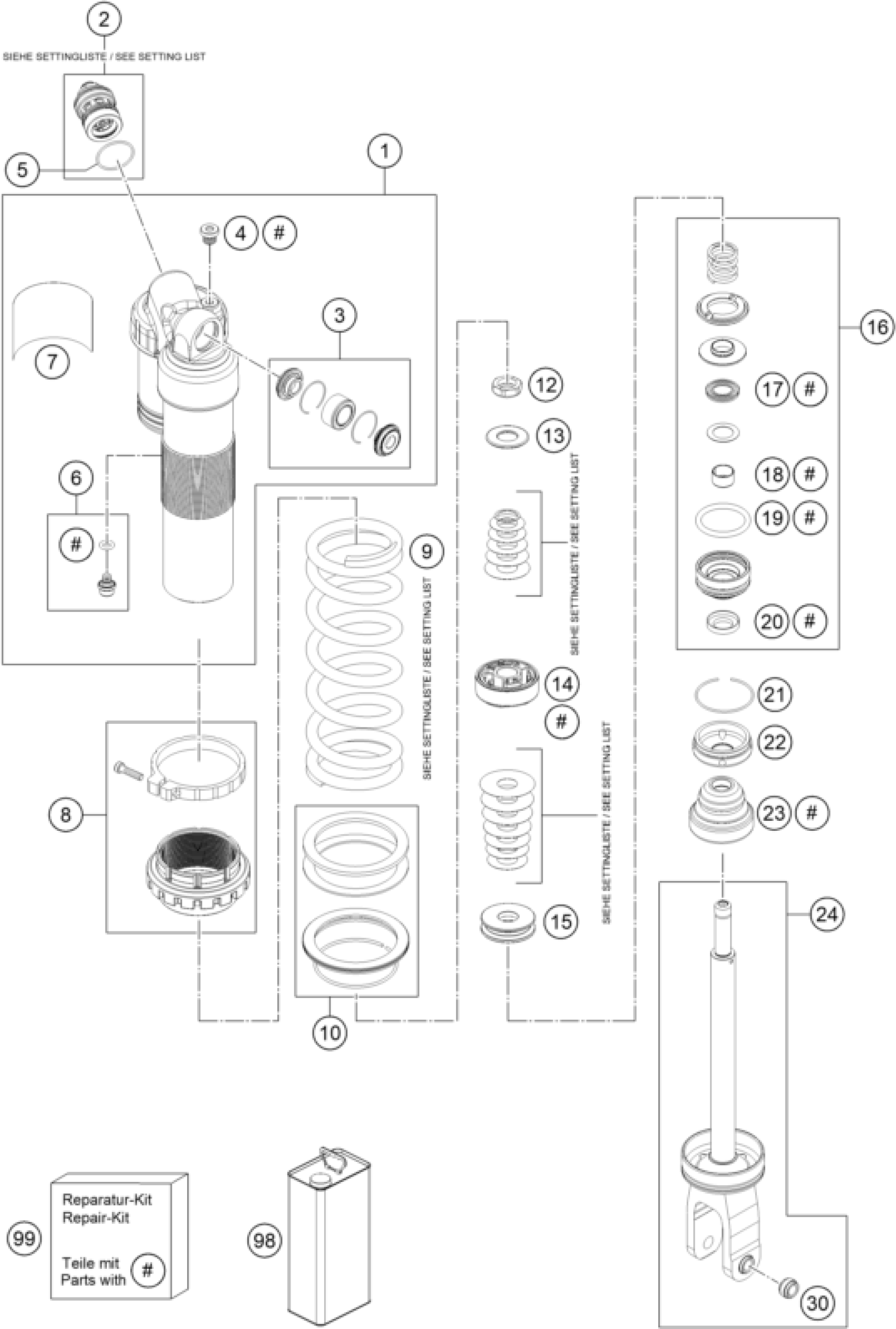

KTM 250 XC-F 2018 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

1

MONOSHOCK UPPER PART CPL.

50181144S1

Unavailable

3

Ball joint bearing kit 12mm

R12025

Unavailable

4

HS cylinder-head screw R1/8 l8

50180095

Unavailable

5

O-ring 25x1,5 Viton70

50180218

Unavailable

6

PLUG SCREW M5X6 CPL.

36120151S

Unavailable

7

Sticker WP warning 55x92

52000146

Unavailable

8

Spring retainer M58,1x2 plasti

50180991S

Unavailable

10

SPRING PLATE SET

50180824S

Unavailable

12

Locking nut M12x1 h7,5 WAF19

50181112

Unavailable

13

Rebound disc 12x34x2 h0

50181092

Unavailable

14

Piston 12x49,6x20 cpl.

50181030E

Unavailable

15

Rebound disc 12x43x12,5 h8

50181091

Unavailable

16

Sealholder 50x28 cpl.

50180603SA

Unavailable

17

Seal ring cpl. 18x30x5

50180605S

Unavailable

18

Guide bushing 18x20x12

46180119

Unavailable

19

O-ring 41x5 NBR70

50180103

Unavailable

20

Dirt scarper NOK 18mm black

50180606

Unavailable

21

Round-wire snap ring 53x1,75

50180126

Unavailable

22

Cover 50x6 h16

50180626

Unavailable

23

Rubber pad 18x58x46 black

50181100

Unavailable

24

MONOSHOCK BOTTOM PART CPL.

50181148S1

Unavailable

30

Bush M10x12/15/13x9,5

46811205

Unavailable

98

SHOCK ABSORBER FLUID 5 LT

50180751S1

Unavailable

99

REP. KIT 5018 LINK 2016 US/HQV

R12029

Unavailable

2

Compression cpl.

50181101S17

Unavailable

2

DCC link 2017 cpl.

50181101S18

Unavailable

2

Compression cpl.

50181101S11

Unavailable

2

Compression cpl.

50181101S23

Unavailable

9

Spring 255 36 N/MM

91210128S

Unavailable

9

SPRING 260 39 N/MM

91210123S

Unavailable

9

SPRING 260 42 N/MM

91210124S

Unavailable

9

SPRING 260 45 N/MM

91210100S

Unavailable

9

SPRING 260 48 N/MM

91210101S

Unavailable

9

SPRING 260 51 N/MM

91210102S

Unavailable

2

Compression cpl.

50181101S19

Unavailable

2

DCC LINK 2017 CPL.

50181101S14

Unavailable

9

Mainspring (62/65) 33-250 damp

91210126

Unavailable

9

Mainspring (62/65) 30-250 damp

91210129

Unavailable

9

SPRING 260 54 N/MM

91210103S

Unavailable

9

SPRING 260 57 N/MM

91210104S

Unavailable

9

SPRING 260 60 N/MM

91210105S

Unavailable
