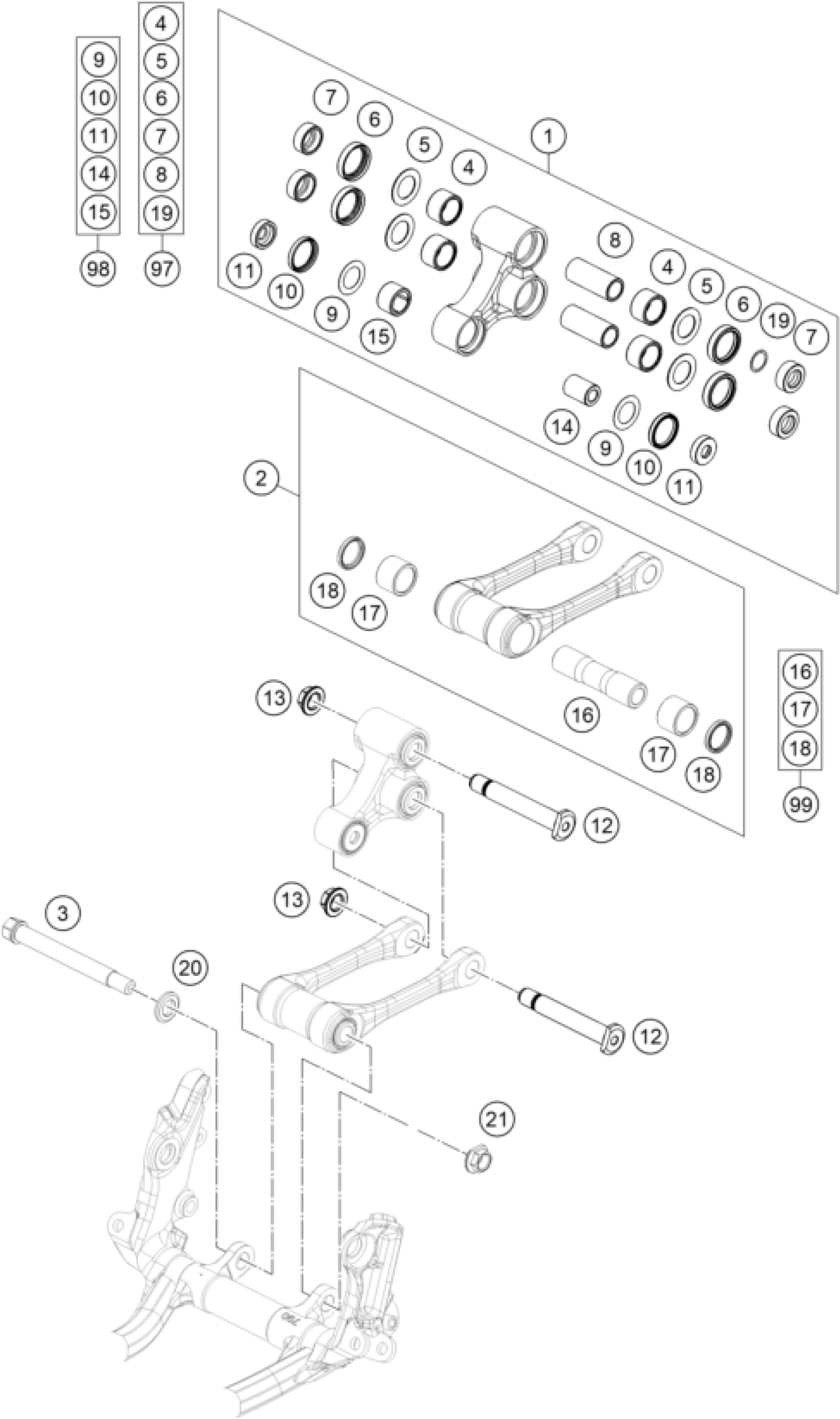

KTM 250 XC-F 2018 PRO LEVER LINKING Diagram

#

Description
Price

3

BOLT TIE-ROD BEARING M14

77404084000

Unavailable

4

Needle bushing HK 2016 / 20x26

54603097000

Unavailable

5

Shim 20x31.9x1

59033080000

Unavailable

6

radial shaft seal 25x32x7

0760253270

Unavailable

7

Bucket f. shaft seal ring 25X1

77204080130

Unavailable

8

Bushing sleeve 15x20x48

54603081000

Unavailable

9

Shim 29.75x19x0.4

50180604

Unavailable

10

Radial shaft seal 24X30X5

0760243050

Unavailable

11

Bucket f. shaft seal ring 24x6

77204080020

Unavailable

12

Bolt triangle lever arm M14x1.

77204085000

Unavailable

13

hex nut M14x1.5 WS17

77204087000

Unavailable

1

TRIANGLE LEVER CPL. SX 2017

7900408014401

Unavailable

2

PULLROD CPL. SX 2016

7900408304401

Unavailable

14

Bearing sleeve 10x18x25.5

77204080010

Unavailable

15

NEEDLE BUSH HN1816 RS 18/24/16

0618182416

Unavailable

16

Bearing sleeve for pull rod 16

79004084010

Unavailable

17

NEEDLE BEARING HK2220 22X28X20

0618222820

Unavailable

18

Radial shaft seal G22x28x4

0760222841

Unavailable

19

Steel washer 15.2x19x0.1

54603090010

Unavailable

19

STEEL WASHER 15,2X19X0,2

54603090020

Unavailable

19

STEEL WASHER 15,2X19X0,3

54603090030

Unavailable

20

WASHER TIE-ROD BEARING M14

77404084010

Unavailable

21

Hex. nut M14x1.5 WS17

77404084120

Unavailable

97

TRIANGLE LEVER REP. KIT REAR

77204080110

Unavailable

98

TRIANGLE LEVER REP. KIT FRONT

77204080090

Unavailable

99

PULL ROD REP. KIT SX-F

79004083010

Unavailable
