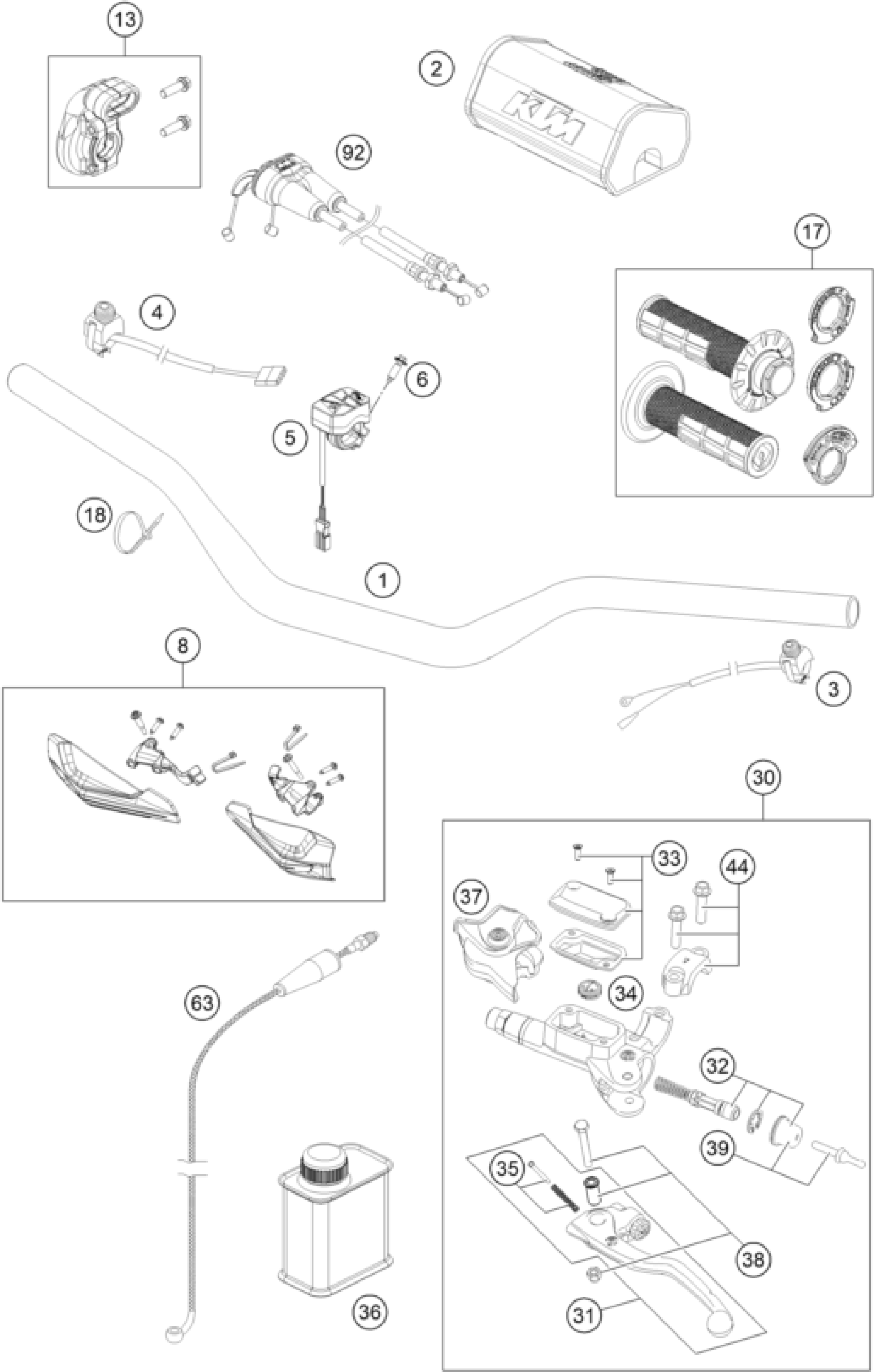

KTM 250 XC-F 2017 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

HANDLEBAR D=28MM

7900200100030

Unavailable

2

BAR PAD

79002002000

Unavailable

3

Kill switch

50311089200

Unavailable

4

STARTER BUTTON GREY 13

78111074000

Unavailable

8

HAND GUARDS CPL.L/S+R/S ORANGE

77702179000EB

Unavailable

13

THROTTLE CONTROL CASING CPL.

79002010025

Unavailable

17

GRIP SET

79002021100

Unavailable

18

Cable tie 200/4.6mm black

44011076200

Unavailable

18

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

30

MASTER CYLINDER CPL.

79202030044

Unavailable

31

Clutch lever cmpl. BREMBO 06

54802031000

Unavailable

32

REP. KIT PISTON 9MM

79202032044

Unavailable

33

COVER HYD. CLUTCH CPL. 2014

5480200310030

Unavailable

34

VALVE

54802051000

Unavailable

35

BOLT KPL.

54802052000

Unavailable

36

Brake fluid DOT5.1 0,25L

00062030000

Unavailable

37

PROTECTION CAP 06

54802037000

Unavailable

38

Lever screw cmpl. 06

54802038100

Unavailable

39

Push rod cmpl.

54802046000

Unavailable

44

CLAMP CPL. 06

54802005100

Unavailable

63

CLUTCH PIPE

79232063000

Unavailable

92

THROTTLE CABLE CPL. 4STROKE

79002091000

Unavailable

6

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable

5

MAP SWITCH

79039074000

Unavailable
