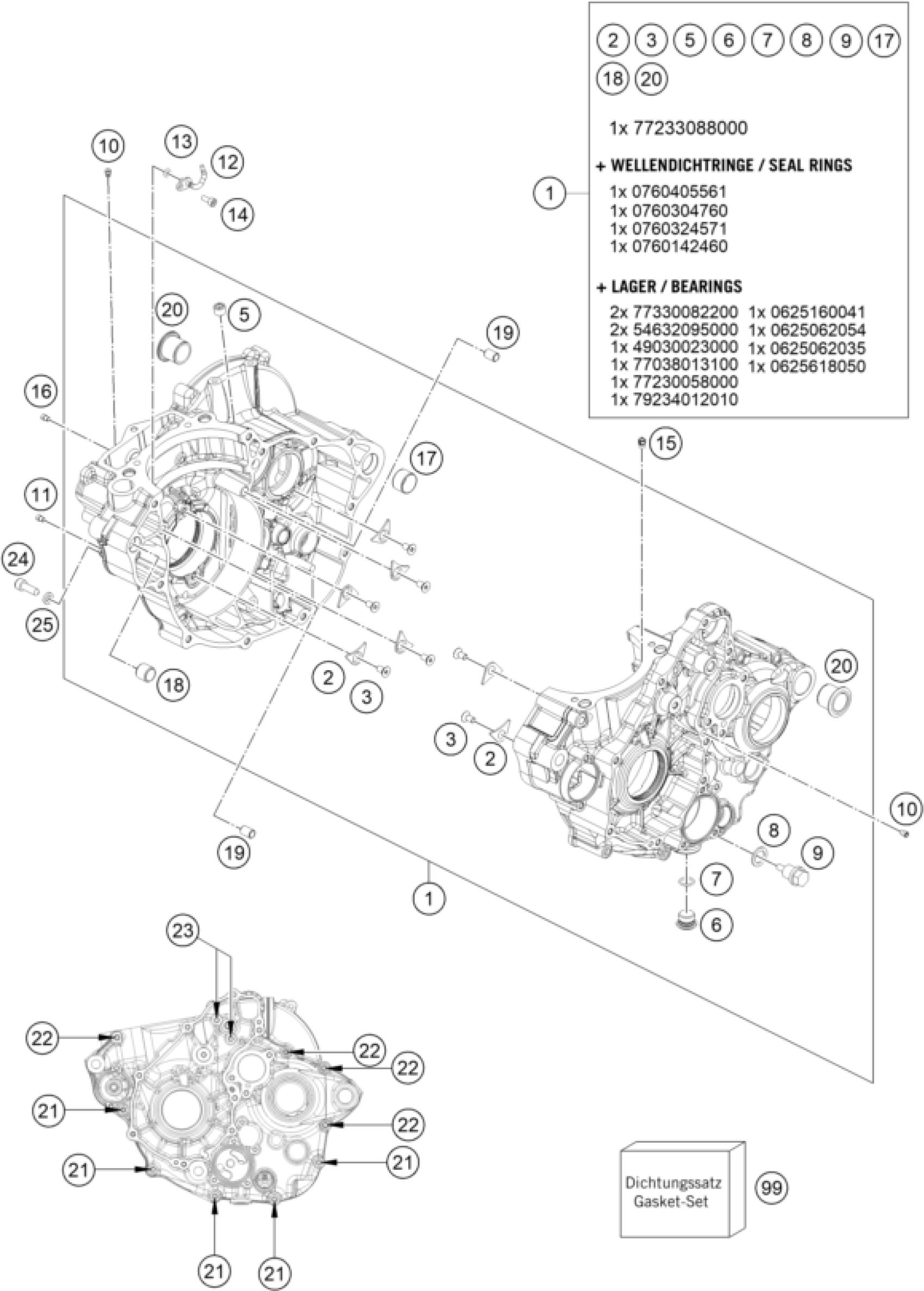

KTM 250 XC-F 2017 ENGINE CASE Diagram

#

Description
Price

7

O-ring 11x1.5 VITON

0770110015

Unavailable

6

HOLDING BOLT M14X1,5

78036081000

Unavailable

8

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

9

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

Unavailable

10

OIL JET ''60'' M4

80030058060

Unavailable

11

JET 44-031/150

77030058150

Unavailable

12

OIL JET ANGLED 50

81230164050

Unavailable

13

O-RING 3,5X2,00 NBR

0770035020

Unavailable

14

AH.SCREW DIN0912-M 4X10

0912040103

Unavailable

15

oil jet 50 M5

60030063050

Unavailable

16

JET 100 BING(44-031/180) M4

59030058000

Unavailable

17

DOWEL 17 X 19 X 12

59030024000

Unavailable

18

DOWEL BUSHING 13,8X11X12

54630027000

Unavailable

19

dowel sleeve 6x8x11.5

59030023000

Unavailable

20

Housing bush

79230010000

Unavailable

21

HH collar screw M6x55 TX30

0025060556

Unavailable

22

HH COLLAR SCREW M6X65 TX30

0025060656

Unavailable

23

HH COLLAR SCREW M6X70 TX30

0025060706

Unavailable

24

LOCATING SCREW M8 L=25

77730080000

Unavailable

25

CU-SEAL RING 8 X 14 X 3

58030081000

Unavailable

99

GASKET KIT ENGINE 250 SX-F

79230099000

Unavailable

1

ENGINE CASE CPL.

79230000033

Unavailable

2

RETAINING PLATE F. CS BEARING

75030085000

Unavailable

3

INT. TORX FLAT HEAD M5X12 T25

0019050121S

Unavailable

5

pipe plug DIN 906 M10x1

0906100100

Unavailable
