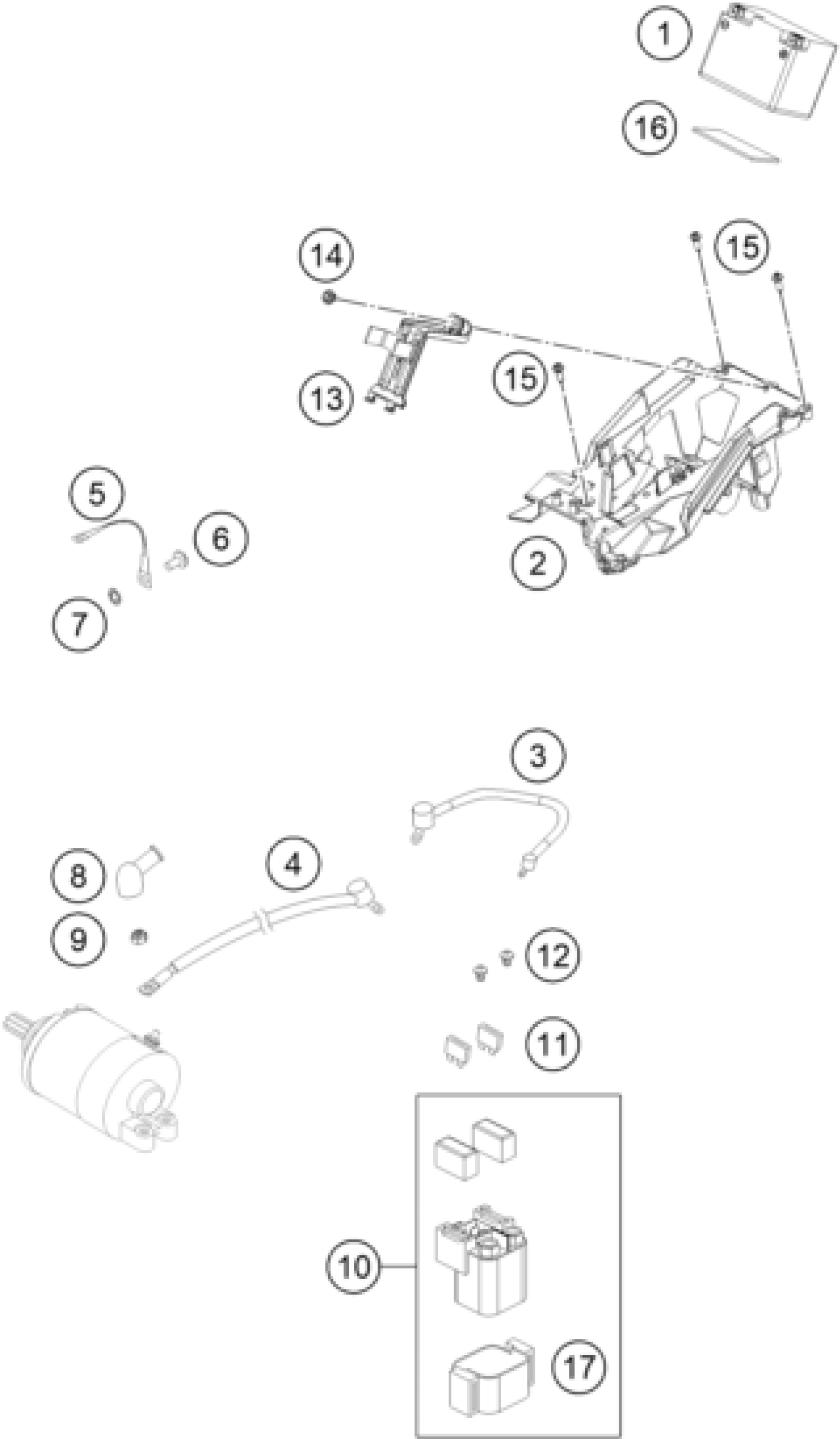

KTM 250 XC-F 2017 BATTERY Diagram

#

Description
Price

9

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

3

WIRING HARNESS BATTERY DUKE'99

58711086000

Unavailable

1

LITHIUM ION BATTERY 5S

77311953000

Unavailable

2

BATTERY BOX

79011055100

Unavailable

4

STARTERCABLE 700 MM '97

58411059100

Unavailable

5

GROUND CABLE D=6MM L=140MM '97

58411097100

Unavailable

6

EJOT SPIRAL SCREW SF M5X10-K

0009050106

Unavailable

7

CONTACT WASHER M6 VSV-K6

58411098100

Unavailable

10

Starter reley 12V 99

58211058000

Unavailable

15

SCREW FOR PLASTIC K60X20 SW6

0017060205

Unavailable

8

Protection cap for starter eng

77240099000

Unavailable

11

Plug-in fuse, big 10A

58011109110

Unavailable

12

Oval head screw ISO 7380 M 6X8

0902060083

Unavailable

13

BATTERY BOX SUPPORT

79011056100

Unavailable

14

SPECIAL SCREW M6X12,5 WS=8

59001092050

Unavailable

16

METAMOLL 90X45X3MM 03

59003001099

Unavailable

17

BRACKET RUBBER F.STARTRELAY 07

58211058050

Unavailable
