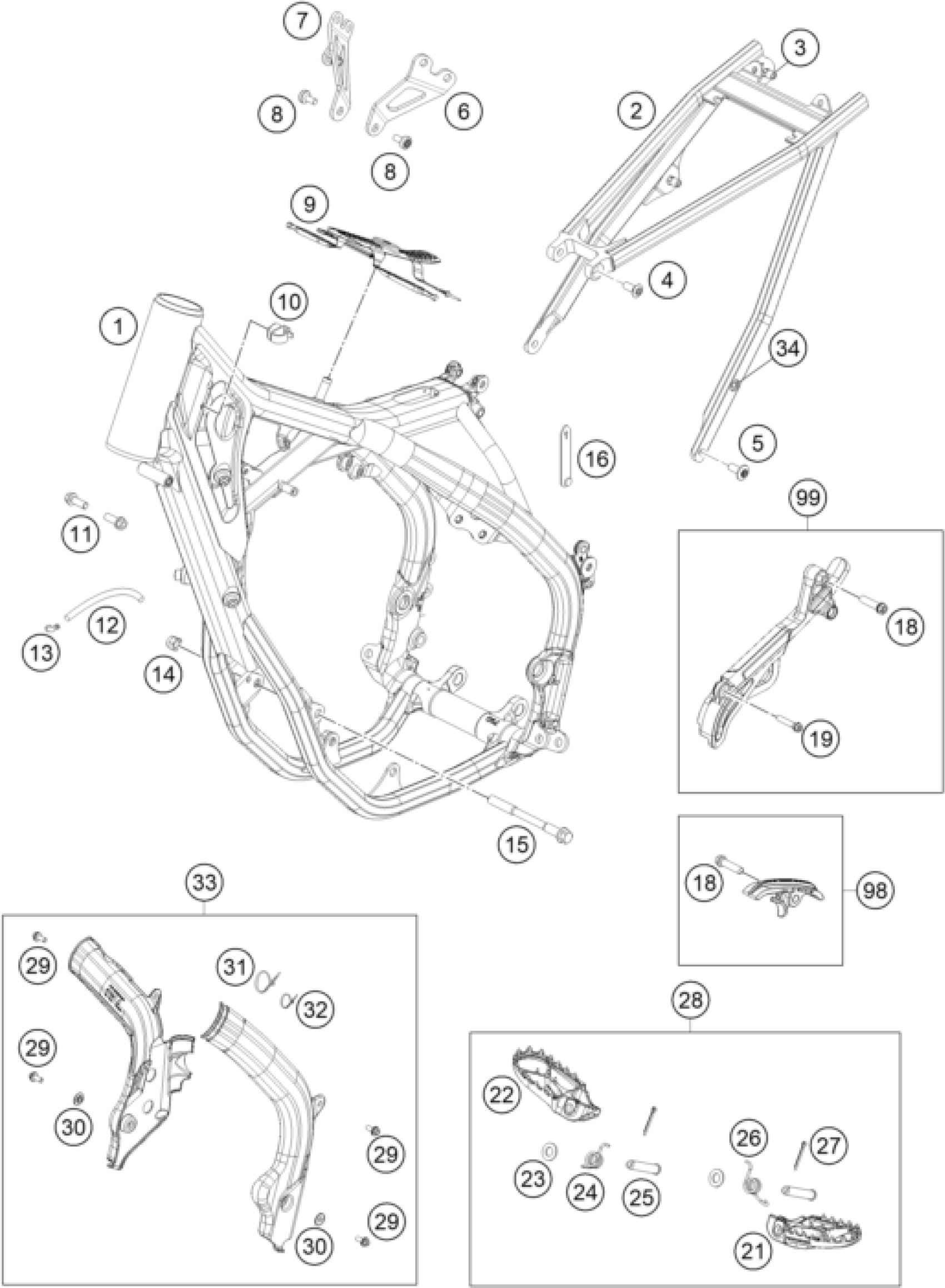

KTM 250 XC-F 2016 FRAME Diagram
#
2
SUBFRAME 2016
79003002000
Unavailable
4
FLAT HEAD SCREW M. ISA45 M8X20
0019080206S
Unavailable
5
Special screw M8X18 TORX45 SL
79003003000
Unavailable
6
ENGINE BRACE L/S
79003013000
Unavailable
7
REINFORCING RIGHT CPL.
79003014044
Unavailable
8
AH-COLLAR SCREW M8X15 TORX45
0035080156S
Unavailable
9
TANK REST RUBBER
79007012000
Unavailable
10
CABLE SUPPORT KHS NR.150-47610
58111076000
Unavailable
11
HH collar screw M8x16 TX40 SL
0025080166S
Unavailable
12
PVC-HOSE 7X10 PER METER
55007016001
Unavailable
15
engine brac.scr. M10x115
77203014000
Unavailable
16
RUBBER CABLE TIE 75MM 03
60011093075
Unavailable
18
HH collar screw M8x30
0025080306
Unavailable
19
HH collar screw M6x30 TX30
0025060306
Unavailable
21
FOOTREST L/S 2016
79003040000
Unavailable
22
FOOTREST R/S 2016
79003041000
Unavailable
23
washer DIN 125 A 10.5
0125100003
Unavailable
24
FOOTREST SPRING R/S 2016
79003044000
Unavailable
25
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
Unavailable
26
FOOTREST SPRING L/S 2016
79003045000
Unavailable
27
PIN DIN0094-3,2X25 STEEL
0094032253
Unavailable
28
FOOT PEGS SET CPL. 2016
79003040033
Unavailable
3
BLIND RIVET NUT EM6-60LF/HX
77303139000
Unavailable
13
ANGLE PIECE '97
50303089000
Unavailable
14
SELF LOCKING NUT M10 CU WS=14
54310086100
Unavailable
1
FRAME ''790P2'' BLACK
7900300110033
Unavailable
29
HH COLLAR SCREW M 5X12 WS=6
0014050123
Unavailable
30
Bush f. frame protection 03
54803092060
Unavailable
31
CABLE TIE 300/4,8MM BLACK
44011076305
Unavailable
32
CABLE TIE 140/2,5MM BLACK
44011076140
Unavailable
33
FRAME PROTECTION SET BLACK
7900309400033
Unavailable
34
BLIND RIVET NUT M6 KNURLED
79003002080
Unavailable
98
CHAIN SLIDING KIT BELOW CPL.16
79003053010
Unavailable
99
SPROCKET COVER KIT
79003096010
Unavailable
