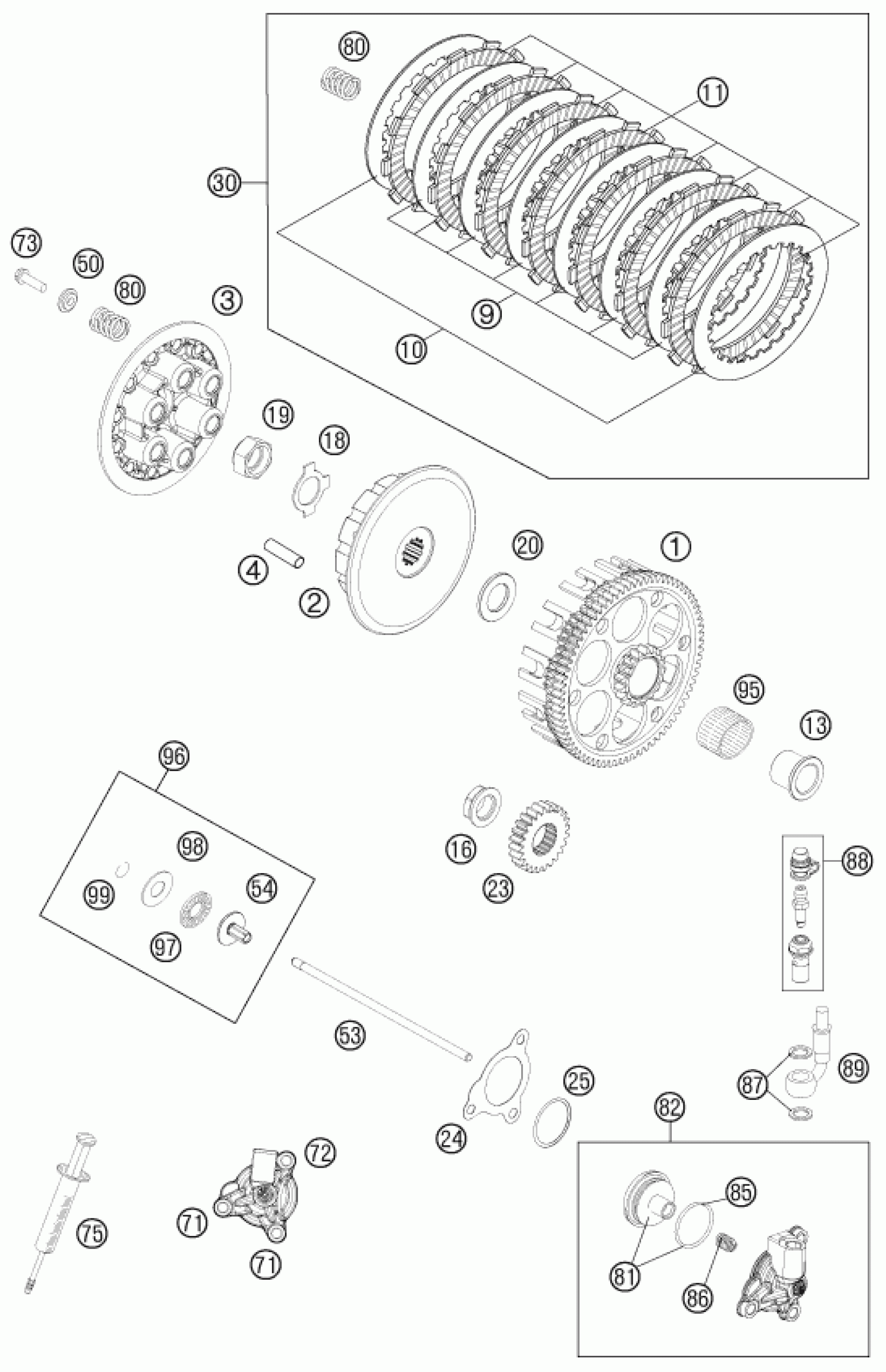

KTM 250 XC-F 2013 CLUTCH Diagram

#

Description
Price

1

OUTER CLUTCH CPL.

77232001073

Unavailable

2

INNER CLUTCH HUB

77232002000

Unavailable

3

PRESSURE PLATE

77232003000

Unavailable

4

DRIVING SLEEVE D=7,95 L=38

77232004000

Unavailable

9

INTERMEDIATE DISC 1,4MM 2002

59032010200

Unavailable

10

INTERMEDIATE DISC 1MM 2002

59032010100

Unavailable

11

LINING DISC 2MM 04

59032011100

Unavailable

13

INNER RING

77232015000

Unavailable

16

NUT PRIMARY WHEEL

77230029000

Unavailable

18

SHEET METAL LOCK

77232018000

Unavailable

19

HEXAGON NUT M18X1,5

77232019000

Unavailable

20

WASHER 21,8 X 37 X 3

77232009100

Unavailable

23

PRIMARY GEAR 24T.

77232023024

Unavailable

24

GASKET F. OUTPUT CYLINDER

77232062000

Unavailable

25

O-ring 30x1.5 NBR 70

0770300015

Unavailable

30

CLUTCH KIT 350 SX-F 11-15

78132010010

Unavailable

50

SPRING RETAINER 6,2X12X18X3,6

59032006000

Unavailable

53

PUSH ROD

77232054000

Unavailable

54

PRESSURE PIECE

78032057000

Unavailable

71

HH collar screw M6x16 TX30

0025060166

Unavailable

72

HH collar screw M6x35 TX30

0025060356

Unavailable

73

HH collar screw M6x25 TX30

0025060256

Unavailable

75

VENT INJEKTION HYDR. CLUTCH

50329050000

Unavailable

80

CLUTCH SPRING 2,4X40 200'98

52332005000

Unavailable

81

PISTON CPL.

77232066000

Unavailable

82

OUTPUT CYLINDER CPL.

77232061044

Unavailable

85

O-RING

54832067000

Unavailable

86

PRESSURE SPRING

54832069000

Unavailable

87

CU-SEAL RING DIN7603-10X16X1

42013226000

Unavailable

88

BLEEDER SCREW CPL. 05

62513020000

Unavailable

89

CLUTCH PIPE 06

54832063000

Unavailable

95

NEEDLE BEARING K26X30X22ZW.KSE

56532095000

Unavailable

96

PRESSURE PIECE CPL. 08

78032057044

Unavailable

97

AXIAL NEEDLE BEARING AXK 1226

54637097200

Unavailable

98

AXIAL WASHER AS1226 12X26X1

54637098200

Unavailable

99

CIRCLIP DIN7993-RW12

0993012000

Unavailable
