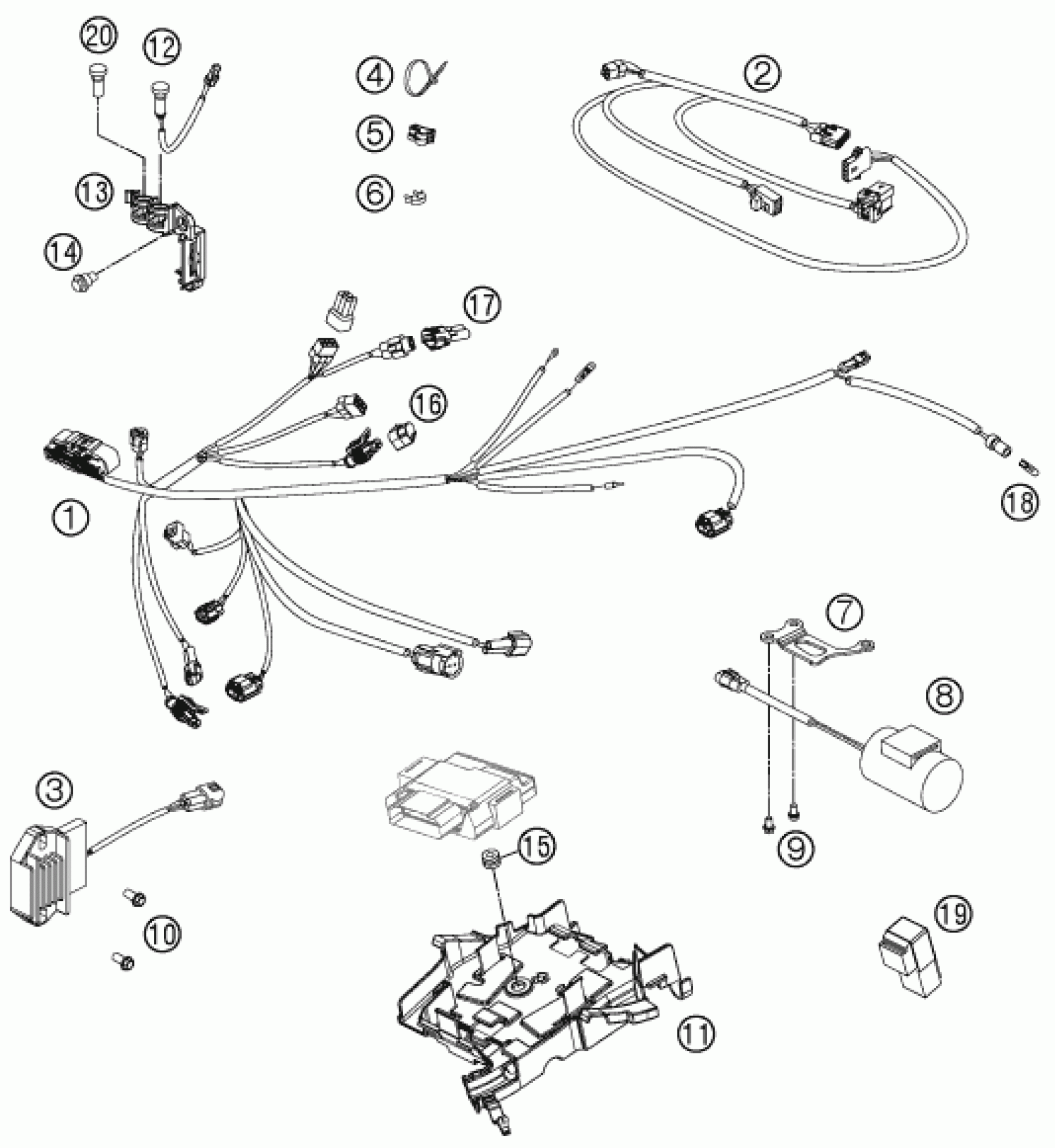

KTM 250 XC-F 2011 WIRING HARNESS Diagram

#

Description
Price

18

BULB 12V 2,3W (W2X4,6D)

49111425200

Unavailable

1

WIRING HARNESS EFI XC-F 2012

77211075000

Unavailable

2

WIRING HARNESS E-START

77111085000

Unavailable

3

Voltage regulator

77211034000

Unavailable

4

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

4

Cable tie 200/4.6mm black

44011076200

Unavailable

4

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

5

Line guide

83013026000

Unavailable

6

WIRING HOLDER 16MM

57013072100

Unavailable

7

RETAINING PLATE CONDENSATOR

77211036000

Unavailable

8

CONDENSATOR

77111035000

Unavailable

9

HH collar screw M6x10 TX30

0025060106

Unavailable

10

HH collar screw M6x20 TX30

0025060206

Unavailable

11

ELECTRIC BOX

77211094000

Unavailable

15

PLUG SFL13

55009086000

Unavailable

16

DUMMY PLUG MAPSELECTSWITCH

77211010050

Unavailable

17

END PLUG CAN-BUS 08

69011040000

Unavailable

19

RELAY CM1A-R-12V-H80 07

61111057000

Unavailable

20

INDICATOR LIGHT RESERVE

81214086000

Unavailable

12

INDICATOR LIGHT LED YELLOW FI

81214083000

Unavailable

13

SUPPORT INDICATOR LIGHT XC

77214098100

Unavailable

14

SPECIAL SCREW M6X12,5 WS=8

59001092050

Unavailable
