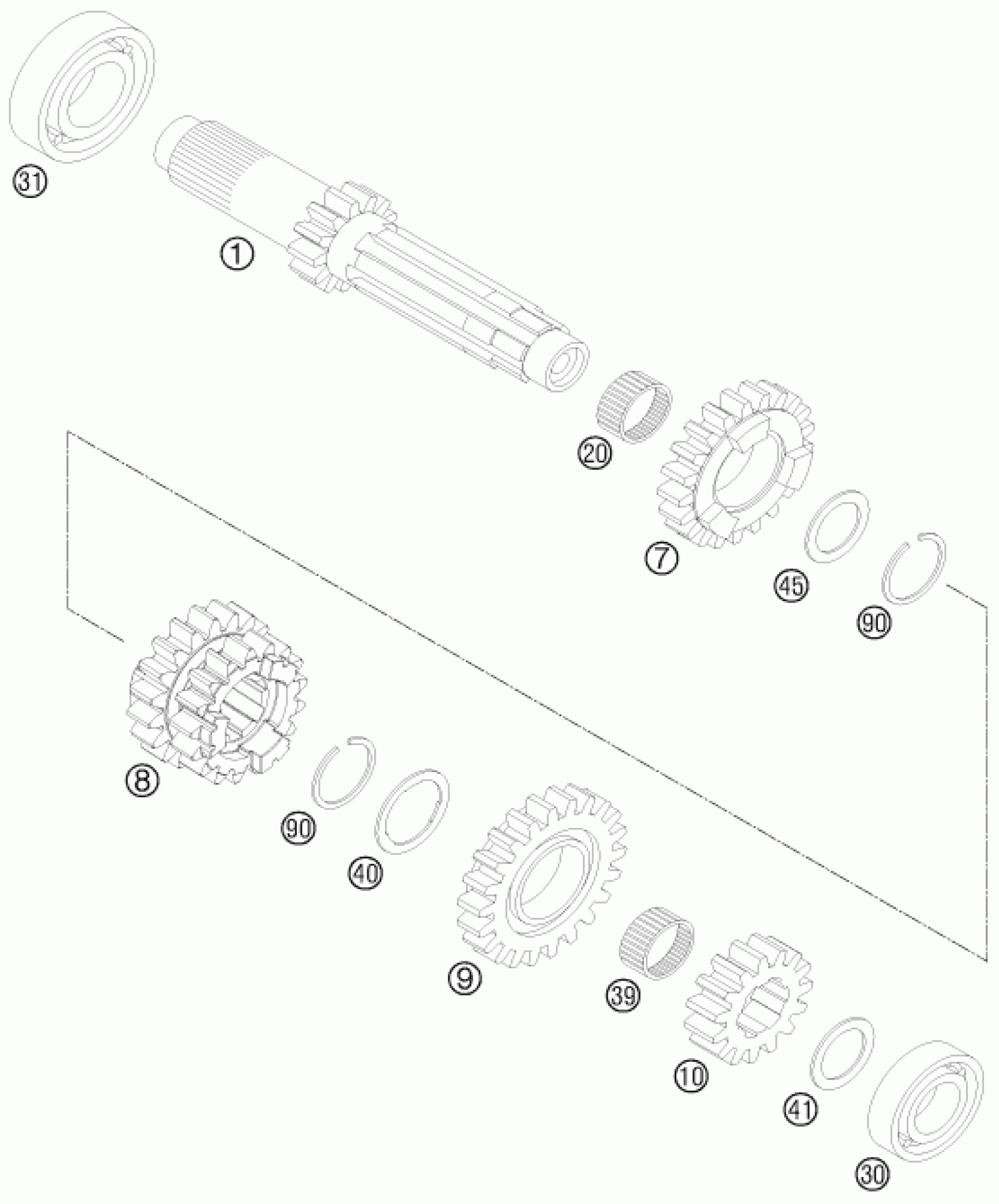

KTM 250 XC-F 2011 TRANSMISSION I - MAIN SHAFT Diagram

#

Description
Price

1

MAIN SHAFT CPL. Z=13 ''B13''

77033101000

Unavailable

7

IDLER G. 5TH G=23 ''5B23''

77033105000

Unavailable

8

SLIDING G.3/4. G19/23-T''B1923

77033103000

Unavailable

9

IDLER G. 6TH G.26 ''6B26''

77033106000

Unavailable

10

SOLID GEAR 2ND G.17-T''2B17''

77033102000

Unavailable

20

NEEDLE BEAR.K 22X26X10 DIVIDED

0405222611

Unavailable

30

GROOVED BALL B. 16003 C4 J1

0625160031

Unavailable

31

BALL BEARING 6004 TN9 C4

0625060042

Unavailable

39

NEEDLE CAGE K18X22X10 PARTED

50133099000

Unavailable

40

STOP DISC 05

77033021000

Unavailable

41

STOP DISK 17,2X24X1

50333030000

Unavailable

45

STOP GEAR 22X28.5X1 05

77033020000

Unavailable

90

LOCK RING 22X1,2

50133090000

Unavailable
