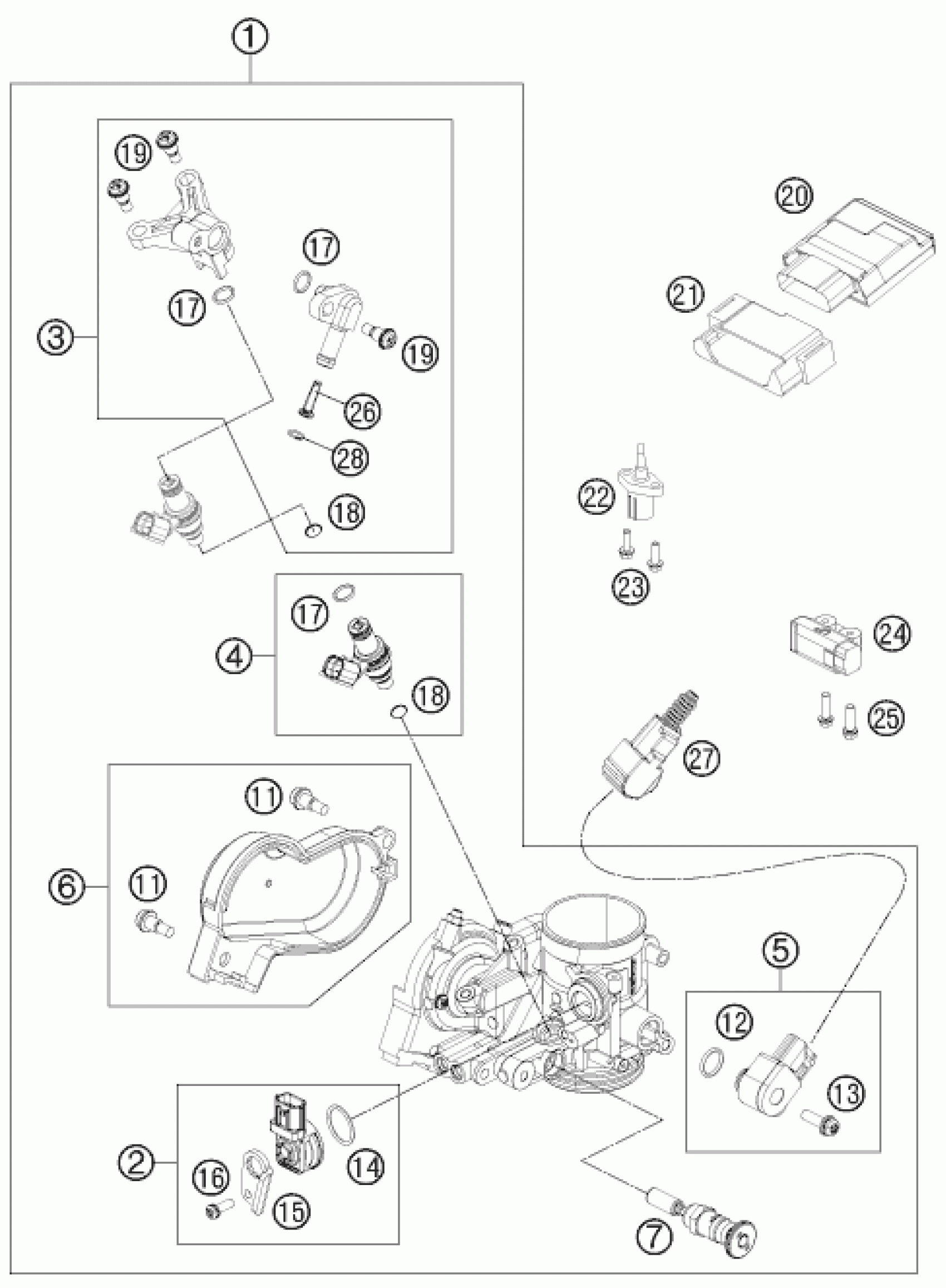

KTM 250 XC-F 2011 THROTTLE BODY Diagram

#

Description

Price

1

THROTTLE BODY

77141001000

Unavailable

2

MAP SENSOR CPL. 09

81241085044

Unavailable

3

FUEL RAIL CPL. 09

81241013044

Unavailable

4

INJECTOR KIT CPL.

77141023144

Unavailable

5

TPS KPL. 09

81241077044

Unavailable

6

THROTTLE COVER CPL. 09

81241056044

Unavailable

7

STARTER VALVE COMP.

81241060000

Unavailable

11

SPECIAL SCREW AH

81241056020

Unavailable

12

O-RING THROTTLE POS. SENSOR

61041077010

Unavailable

13

SPECIAL SCREW

81241077030

Unavailable

14

O-RING

75041085010

Unavailable

15

PLATE 09

81241085020

Unavailable

16

SPECIAL SCREW

81241085030

Unavailable

17

O-RING 7,2x2,2

75041023020

Unavailable

18

SEAL RING

75041023010

Unavailable

19

SCREW SHOULDER

75041013010

Unavailable

20

ELECTRONIC CONTROL UNIT

81241031100

Unavailable

21

RUBBER BRACKET ECU

77241031050

Unavailable

22

AMBIENT-AIR TEMPERATURE SENSOR

61041080000

Unavailable

23

HH collar screw M5x16 TX30

0025050166

Unavailable

24

ROLLOVER SENSOR 05

61041088000

Unavailable

25

HH collar screw M6x20 TX30

0025060206

Unavailable

26

FUEL FILTER

78141013190

Unavailable

27

PROTECTION CAP TPS

77111014050

Unavailable

28

CLAMP ABA 14MM

77507017000

Unavailable
