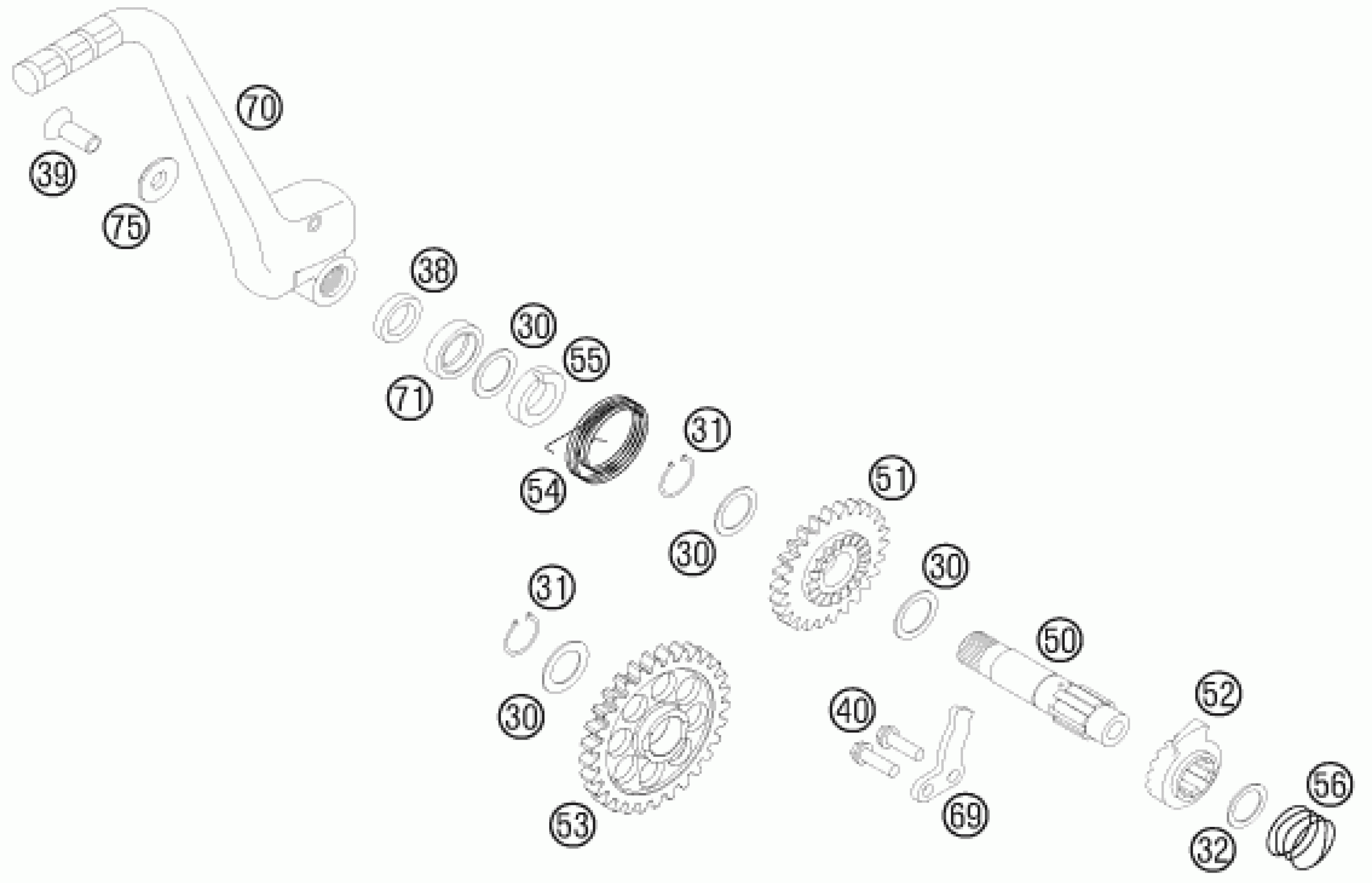

KTM 250 XC-F 2011 KICK STARTER Diagram

#

Description
Price

38

SPACER BUSHING 16X23X26X6,1

50333038100

Unavailable

30

STOP DISK 17,2X24X1

50333030000

Unavailable

31

CIRCLIP DIN0471-17X1

0471170010

Unavailable

39

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

Unavailable

40

HH collar screw M6x16 TX30

0025060166

Unavailable

50

KICKSTARTER SHAFT 05

77033050000

Unavailable

51

KICKSTART. GEAR 28-T 05

77033051000

Unavailable

52

KICKSTARTER RATCHET

50333052000

Unavailable

53

INTERMEDIATE GEAR 05

77033053000

Unavailable

54

KICKSTARTER SPRING 05

77033054000

Unavailable

55

DRIVING HUB ´05

77033055000

Unavailable

56

SPRING 1,4MM '98

50333056000

Unavailable

69

STOP MET.SHEET 4MM 125/200'98

50333069000

Unavailable

70

KICKSTARTER CPL.

77133070144

Unavailable

71

SHAFT SEAL RING 17X28X7 B

0760172870

Unavailable

75

WASHER 8MM GALVANIZED

54633037000

Unavailable

32

THRUST WASHER DIN0988-16X22X1

0988162210

Unavailable
