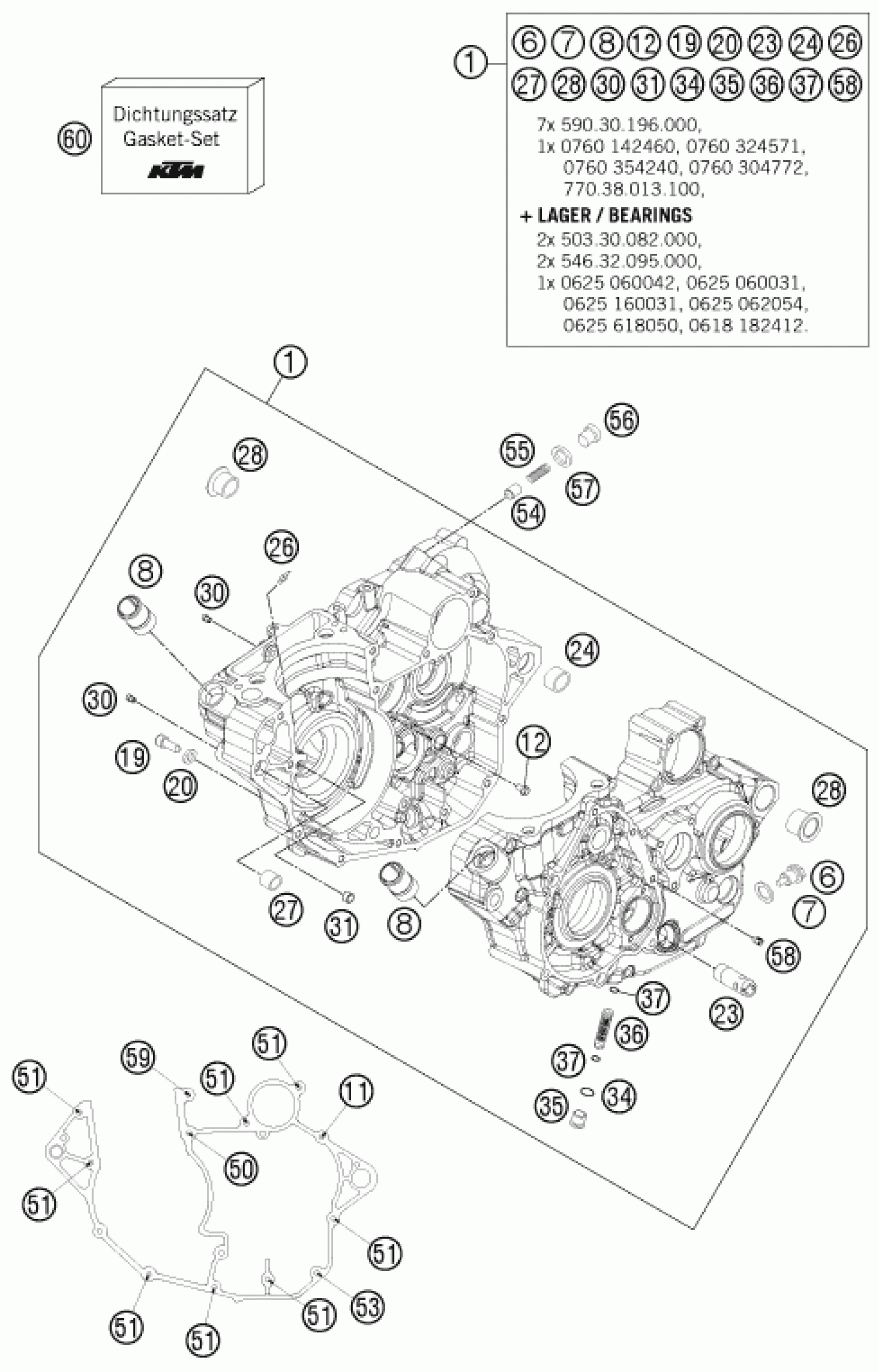

KTM 250 XC-F 2011 ENGINE CASE Diagram

#

Description
Price

27

DOWEL BUSHING 13,8X11X12

54630027000

Unavailable

28

CASE BUSH

75030010000

Unavailable

8

SCREW IN NOZZLE M20X1,5

58030010200

Unavailable

11

HH collar screw M6x40 TX30

0025060406

Unavailable

12

HH collar screw M6x8 TX30

0025060086

Unavailable

19

LOCATING SCREW M8 L=23

58030080000

Unavailable

20

CU-SEAL RING 8 X 14 X 3

58030081000

Unavailable

23

OIL INTAKEPIPE

77038022000

Unavailable

24

DOWEL 17 X 19 X 12

59030024000

Unavailable

26

OIL JET 70 M6X0,75 WS8 03

60030064070

Unavailable

30

JET 100 BING(44-031/180) M4

59030058000

Unavailable

31

DOWEL 6X8X5,5

77130023000

Unavailable

34

O-RING 12,00X2,00 NBR 70

0770120020

Unavailable

35

SCREW PLUG

77038017000

Unavailable

36

OIL SCREEN 11,8x44,5MM

59038015100

Unavailable

37

O-RING 9X1,5 NBR

0770090015

Unavailable

50

HH COLLAR SCREW M6X65 TX30

0025060656

Unavailable

51

HH collar screw M6x50 TX30

0025060506

Unavailable

53

HH collar screw M6x30 TX30

0025060306

Unavailable

54

VALVE PISTON D=10MM

58038028000

Unavailable

55

PRESSURE SPRING L=25MM D=1MM

58038023300

Unavailable

56

threaded plug DIN 908 M12x1.5

0908120153

Unavailable

57

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

58

OIL JET ''60'' M4

80030058060

Unavailable

59

HH collar screw M6x60 TX30

0025060606

Unavailable

60

GASKET SET 05-11

77030099100

Unavailable

7

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

1

ENGINE CASE CPL. W.TR.BEAR.

77130000044

Unavailable

6

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

Unavailable
