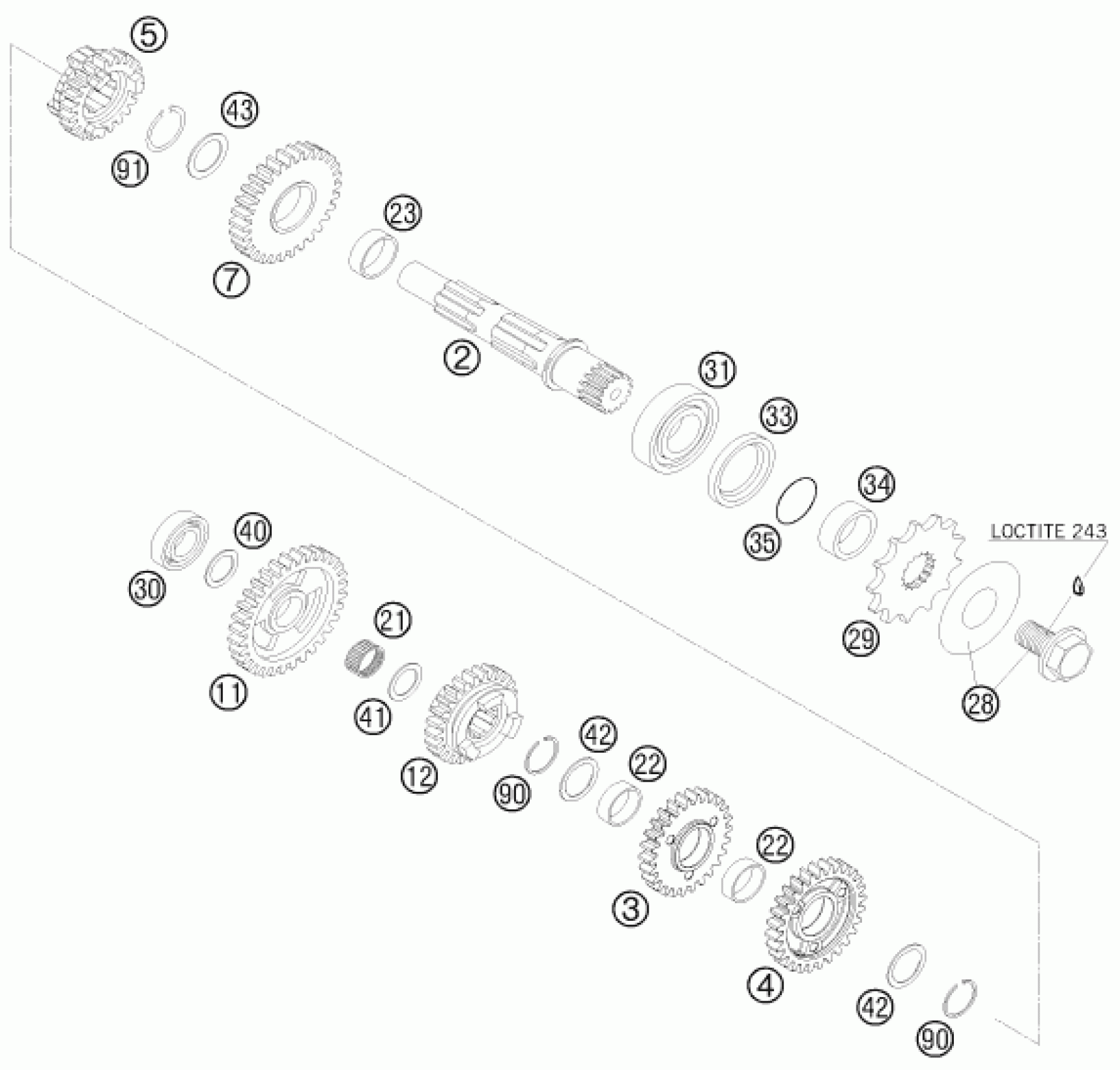

KTM 250 XC-F 2009 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

2

COUNTER SHAFT 05

77033010000

Unavailable

3

IDLER G. 4TH G.26-T 06

77033014000

Unavailable

4

IDLER 3. GEAR T=28

77033013200

Unavailable

5

SLIDING G. 6TH G.24-T

77033016200

Unavailable

7

IDLER G. 2ND G. 30-T 06

77033012000

Unavailable

11

IDLER G. 1ST G. 32-T 06

77033011000

Unavailable

12

SLIDING G. 5TH G.25-T 08

77033015200

Unavailable

21

NEEDLE BEARING K20X24X10

50033098000

Unavailable

22

NEEDLE BEAR.K 22X26X10 DIVIDED

0405222611

Unavailable

23

IDLER GEAR BUSHING 25X28X9,7 D

50333023000

Unavailable

28

SCREW 10.9+SPRING WASHER

59033034044

Unavailable

29

FRONT SPROCKET 13-T

50033029013

Unavailable

29

FRONT SPROCKET 14-T

50033029014

Unavailable

29

FRONT SPROCKET 15-T

50033029015

Unavailable

30

BALL BEARING 6003 TN9 C4

0625060031

Unavailable

31

BALL BEARING 6205 C3 NTN

0625062054

Unavailable

33

SHAFT SEAL RING 32X45X7 BSLNBR

0760324571

Unavailable

34

SPACER BUSHING 12MM

54633014100

Unavailable

35

O-RING 25,12X1,78 NBR70

0770020220

Unavailable

40

STOP DISC 17,2X30X1

56033030000

Unavailable

41

Shim 20x31.9x1

59033080000

Unavailable

42

STOP DISC 25,2X32X1

50333043000

Unavailable

43

Shim ring DIN0988-25X35X1

0988253510

Unavailable

90

AXIAL-CIRCLIP 25X1,65

77033022000

Unavailable

91

CIRCLIP DIN0471-25X1,2

0471250120

Unavailable
