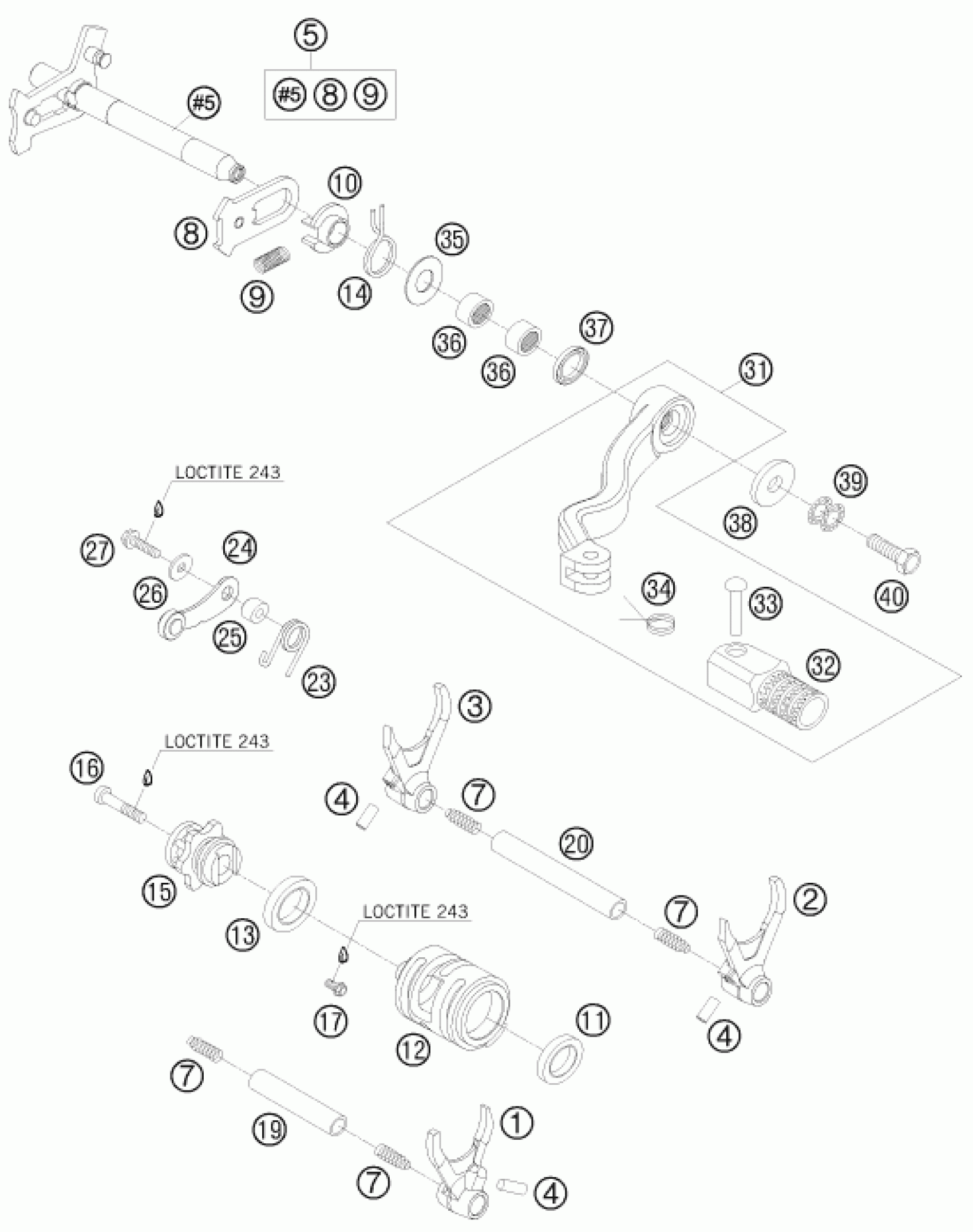

KTM 250 XC-F 2009 SHIFTING MECHANISM Diagram

#

Description
Price

1

SHIFTING FORK 5TH/6TH GEAR 05

77034001000

Unavailable

2

SHIFTING FORK 2ND/3RD GEAR 05

77034002000

Unavailable

3

SHIFTING FORK 1ST/4TH GEAR 05

77034003000

Unavailable

4

NEEDLE ROLLER DIN5402 6X14,8

0402061480

Unavailable

5

SHIFTING SHAFT CPL. 05

77034005044

Unavailable

7

PRESSURE SPRING 0,9MM

58038023200

Unavailable

8

SLIDING PLATE CPL.

54634008044

Unavailable

9

TENSIONING SPRING 0,8MM

56534013100

Unavailable

10

SPRING GUIDE

54634020000

Unavailable

11

BALL BEARING 6903 C4

0625069034

Unavailable

12

SHIFT ROLLER 05

77034012000

Unavailable

13

BALL BEARING 61805 C3

0625618050

Unavailable

14

RETURN SPRING 2,2MM '95

54634014100

Unavailable

15

SHIFT LOCATING DRUM CPL. 05

77034015144

Unavailable

16

AH SCREW DIN6912 M6X30 8.8

0012060303

Unavailable

17

HH collar screw M6x8 TX30

0025060086

Unavailable

19

SHIFT. RAIL MAIN SHAFT 250/300

54834019000

Unavailable

20

SHIFTING MAIN L=93MM 05

77034019000

Unavailable

23

LOCKING LEVER SPRING

77034023000

Unavailable

24

LOCKING LEVER CPL. 08

77034024044

Unavailable

25

SLEEVE FOR LOCKING LEVER

54634052300

Unavailable

26

WASHER DIN7349-5X15X2

0349000050

Unavailable

27

HH collar screw M5x20 TX30

0025050206

Unavailable

31

SHIFT LEVER CPL. 250/300 05

54834031000

Unavailable

32

STEP PLATE FOR SHIFT LEVER 250

54634131000

Unavailable

33

BOLT 6X25 FOR SHIFT LEVER

54634031050

Unavailable

34

SHIFTING LEVER SPRING 250

54634032100

Unavailable

35

STOP DISK 14X30X1

54634050000

Unavailable

36

needle sleeve HK 1412 14x20x12

54632095000

Unavailable

37

radial shaft seal 14x24x6 B

0760142460

Unavailable

38

STEEL WASHER 6,4X17X3

50232050001

Unavailable

39

Pair of washers M6 NORDLOCK

50233041000

Unavailable

40

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

Unavailable
