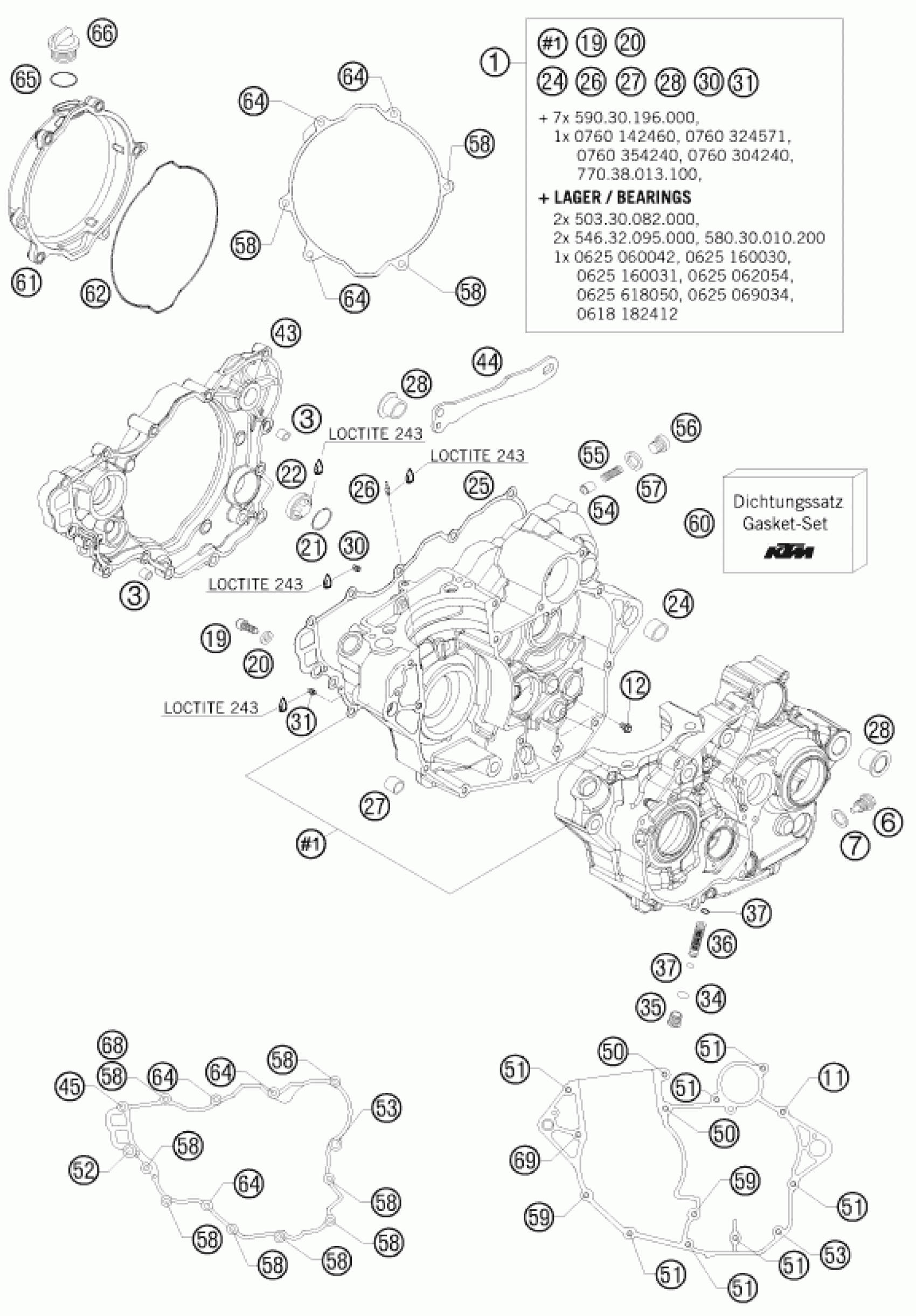

KTM 250 XC-F 2009 ENGINE CASE Diagram

#

Description
Price

1

ENGINE CASE CPL. EXC-F/XC-F 07

77030100144

Unavailable

3

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

6

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

Unavailable

7

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

11

HH COLLAR SCREW M6X45 TX30

0025060456

Unavailable

12

HH collar screw M6x8 TX30

0025060086

Unavailable

19

LOCATING SCREW M8 L=23

58030080000

Unavailable

20

CU-SEAL RING 8 X 14 X 3

58030081000

Unavailable

21

CIRCLIP OIL LEVEL GLASS 03

61030019050

Unavailable

22

OIL LEVEL GLASS G 1777 Y

59030019000

Unavailable

24

DOWEL 17 X 19 X 12

59030024000

Unavailable

25

GASKET FOR CLUTCH COVER 05

77030025100

Unavailable

26

OIL JET 70 M6X0,75 WS8 03

60030064070

Unavailable

27

DOWEL BUSHING 13,8X11X12

54630027000

Unavailable

30

JET 100 BING(44-031/180) M4

59030058000

Unavailable

34

O-RING 12,00X2,00 NBR 70

0770120020

Unavailable

35

SCREW PLUG

77038017000

Unavailable

36

OIL SCREEN 11,8x44,5MM

59038015100

Unavailable

37

O-RING 9X1,5 NBR

0770090015

Unavailable

43

CLUTCH COVER CPL.

7703000124415

Unavailable

44

CHAIN DAMPERSHEET EXC-F 07

77030047100

Unavailable

45

HH collar screw M6x35 TX30

0025060356

Unavailable

50

HH COLLAR SCREW M6X65 TX30

0025060656

Unavailable

51

HH collar screw M6x50 TX30

0025060506

Unavailable

52

HH collar screw M6x40 TX30

0025060406

Unavailable

53

HH collar screw M6x30 TX30

0025060306

Unavailable

54

VALVE PISTON D=10MM

58038028000

Unavailable

55

PRESSURE SPRING L=25MM D=1MM

58038023300

Unavailable

56

threaded plug DIN 908 M12x1.5

0908120153

Unavailable

57

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

58

HH collar screw M6x25 TX30

0025060256

Unavailable

59

HH COLLAR SCREW M6X95 TX30

0025060956

Unavailable

60

GASKET SET 05

77030099000

Unavailable

61

CLUTCH COVER OUTSIDE 09

7703002630015

Unavailable

62

MOLDED RING 05

77030027000

Unavailable

64

HH collar screw M6x55 TX30

0025060556

Unavailable

65

O-RING 19,00X3,00 NBR

0770191015

Unavailable

66

PLUG M 24X3

58030020000

Unavailable

68

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

69

HH collar screw M6x60 TX30

0025060606

Unavailable

31

JET 44-031/150

77030058150

Unavailable

28

CASE BUSH

75030010000

Unavailable
