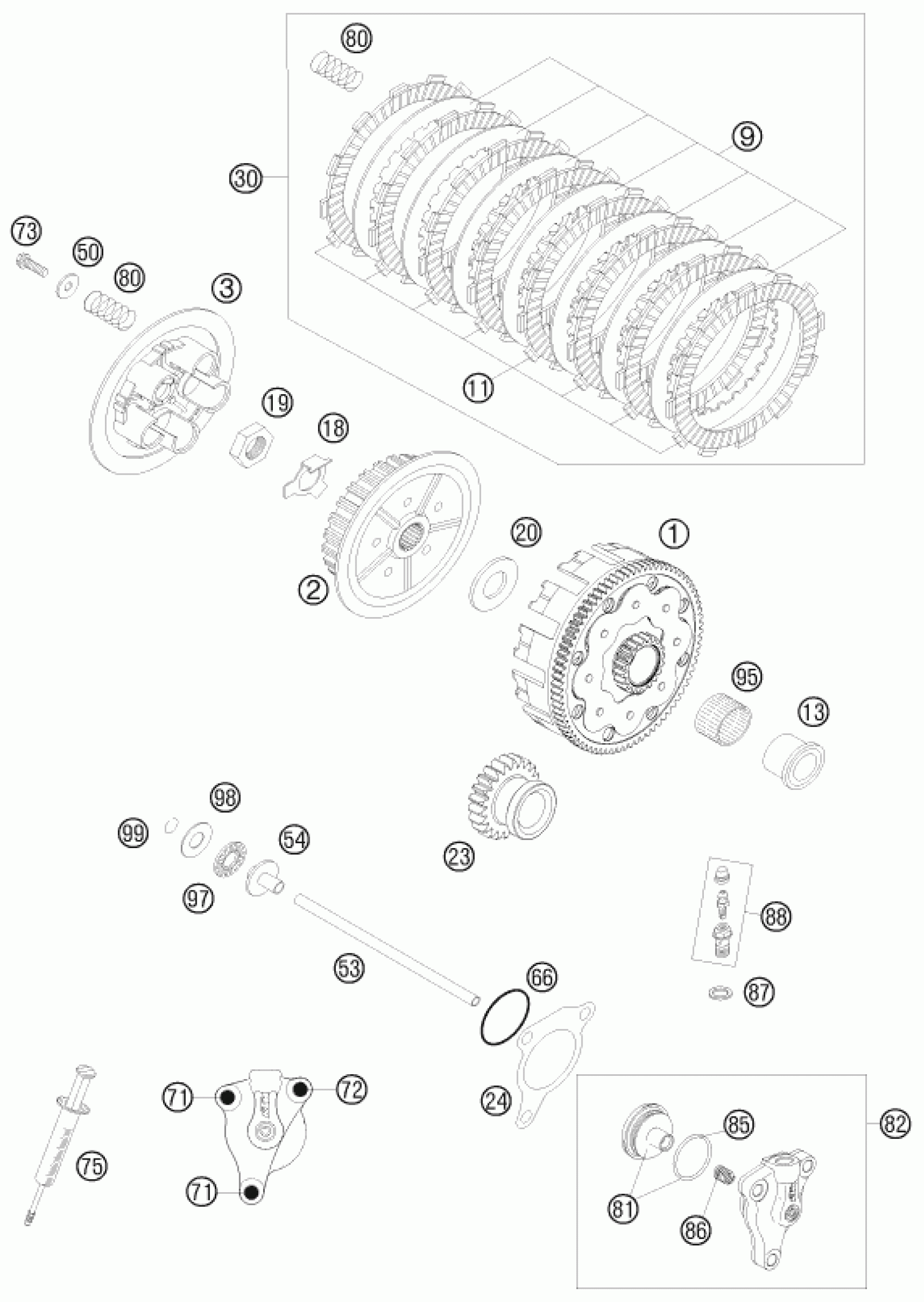

KTM 250 XC-F 2009 CLUTCH Diagram

#

Description
Price

1

OUTER CLUTCH CPL.

77032001100

Unavailable

2

INNER CLUTCH HUB

77032002100

Unavailable

3

PRESSURE PLATE

77032003100

Unavailable

9

INTERMEDI. DISC STEEL 05

77032010000

Unavailable

11

LINING DISC 3,0MM 05

77032011000

Unavailable

13

INNER RING 20X26X25,9 '98

50332013000

Unavailable

18

SHEET METAL LOCK 1,5MM '98

50332018000

Unavailable

19

HEXAGON NUT DIN0936-M18X1,5 R.

0936181505

Unavailable

20

STOP DISK 20X39,6X3 '98

50332020000

Unavailable

23

PRIMARY GEAR 22T. 05

77032000122

Unavailable

24

GASKET FOR SLAVE CYLINDER

59032065000

Unavailable

50

WASHER 6,2X18X2

50232050000

Unavailable

53

PUSH ROD 05

77032054000

Unavailable

54

PRESSURE PIECE 125-380 '98

50332054051

Unavailable

66

O-ring 30x1.5 NBR 70

0770300015

Unavailable

71

HH collar screw M6x20 TX30

0025060206

Unavailable

72

HH collar screw M6x35 TX30

0025060356

Unavailable

73

HH collar screw M6x25 TX30

0025060256

Unavailable

75

VENT INJEKTION HYDR. CLUTCH

50329050000

Unavailable

80

CLUTCH SPRING

77032005000

Unavailable

81

PISTON CPL.

54832066000

Unavailable

82

OUTPUT CYLINDER CPL. 06

54832061044

Unavailable

85

O-RING

54832067000

Unavailable

86

PRESSURE SPRING

54832069000

Unavailable

87

CU-SEAL RING DIN7603-10X16X1

42013226000

Unavailable

88

BLEEDER SCREW CPL. 05

62513020000

Unavailable

95

NEEDLE BEARING K26X30X22ZW.KSE

56532095000

Unavailable

97

AXIAL NEEDLE BEARING AXK 1226

54637097200

Unavailable

98

AXIAL WASHER AS1226 12X26X1

54637098200

Unavailable

99

CIRCLIP DIN7993-RW12

0993012000

Unavailable

30

CLUTCH KIT 250 SXF/EXCF 5-13

77032011010

Unavailable
