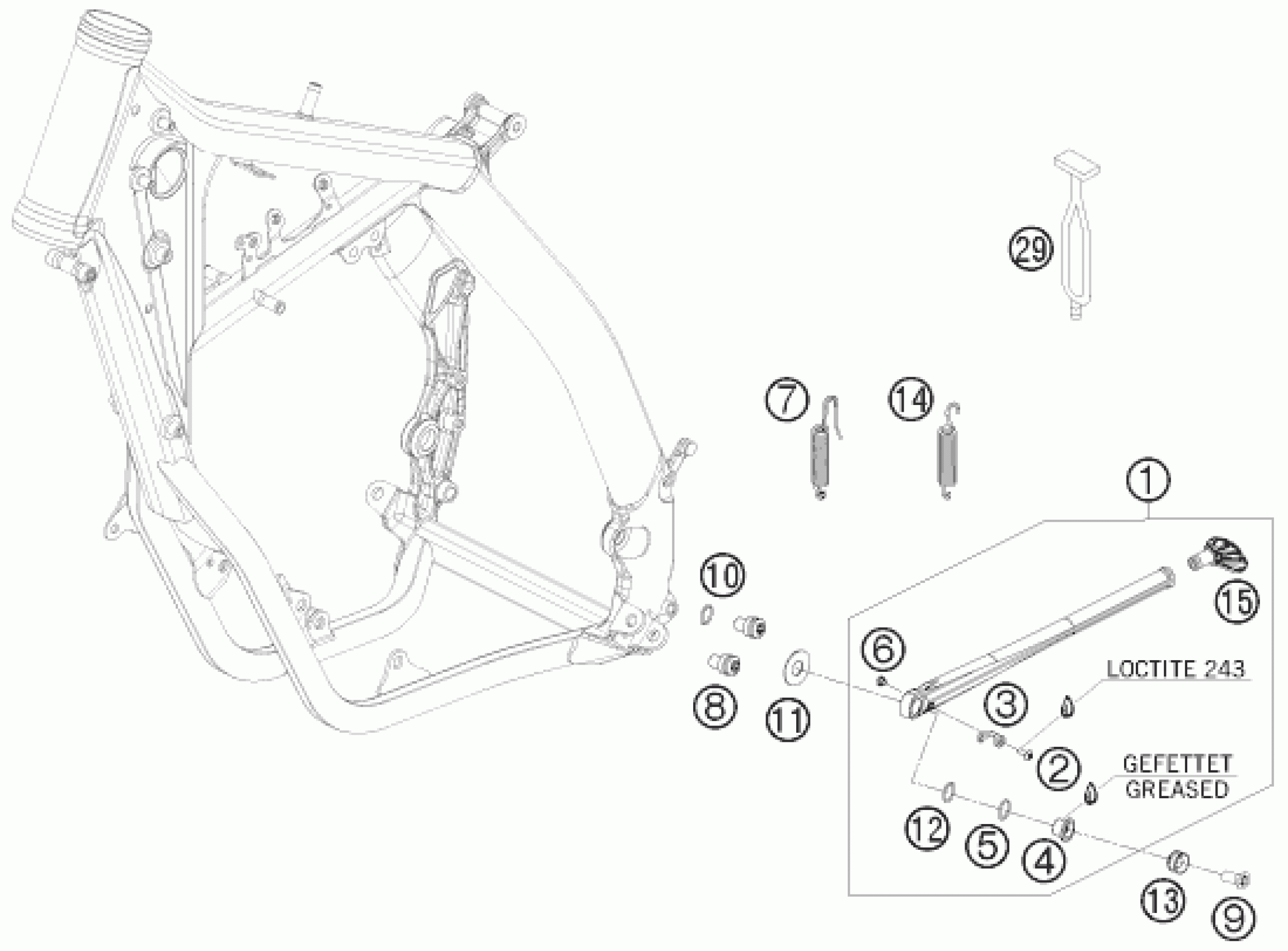

KTM 250 XC-F 2008 SIDE / CENTER STAND Diagram

#

Description
Price

1

SIDE STAND CPL. 08

78003023044

Unavailable

2

Oval head screw M5x14 TX25

58605083014

Unavailable

3

SPRING BRACKET F. SIDE ST. 08

78003023090

Unavailable

4

SIDE STAND BUSHING EXC USA 08

78003023080

Unavailable

5

o-ring 18.00x2.00 NBR70

0770180020

Unavailable

6

SPACER BUSH. SPRING BRACKET

78003023070

Unavailable

7

SIDE STAND SPRING EXC 08

78003024000

Unavailable

8

SIDE STAND STOP SCREW M10X12

78003023182

Unavailable

9

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

Unavailable

9

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

Unavailable

29

RUBBER L=145MM

50303018000

Unavailable

10

O-RING 12,00X2,00 NBR 70

0770120020

Unavailable

13

Side stand bushing

78003023081

Unavailable

14

SIDE STAND SPRING 08

78003024100

Unavailable

15

STAND BASE

78003023055

Unavailable

11

WASHER F. SIDE STAND 12,2X29,5

78003023083

Unavailable

12

O-RING 12,5X1,5 NBR

0770125015

Unavailable
