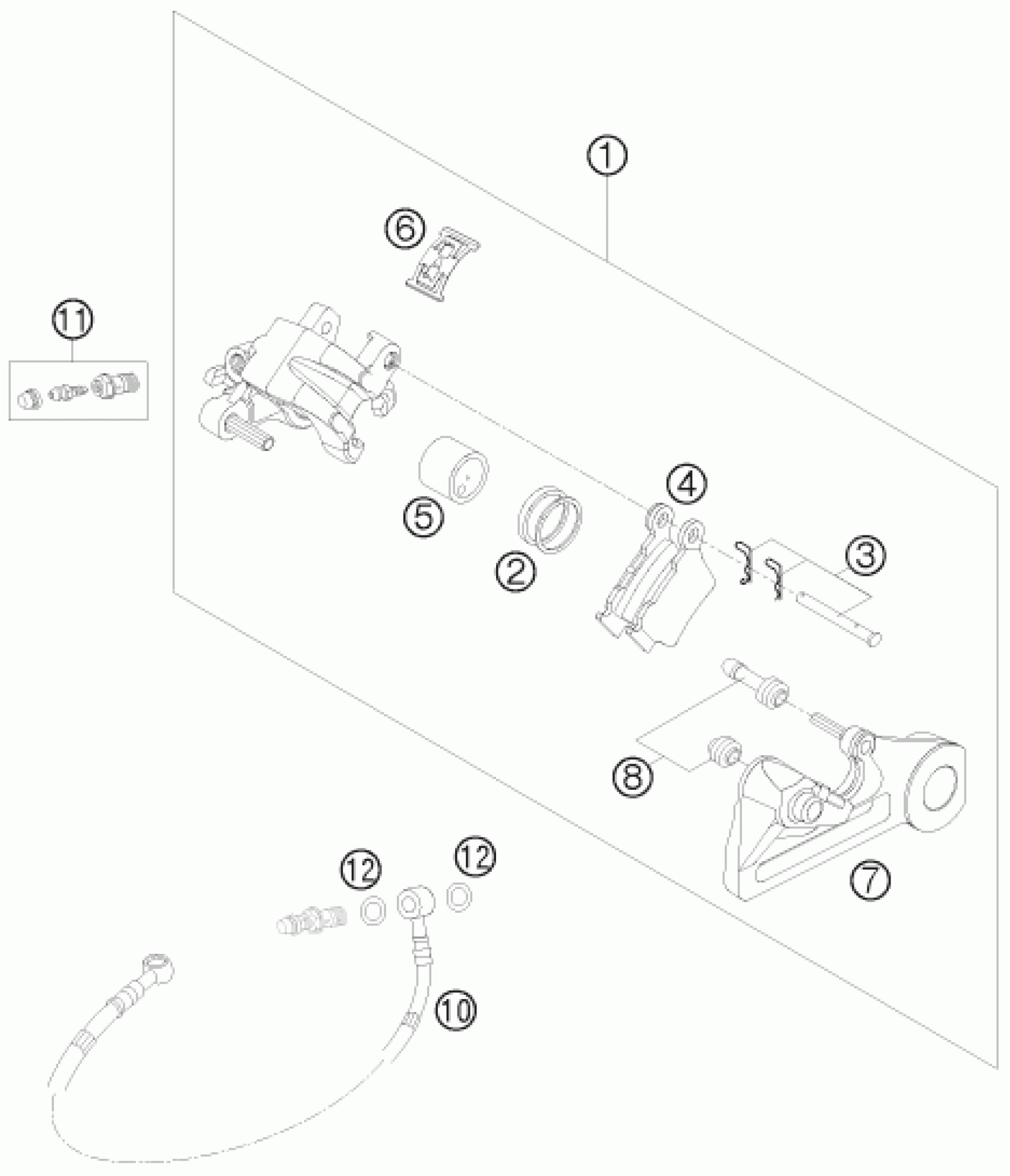

KTM 250 XC-F 2008 REAR BRAKE CALIPER Diagram

#

Description

Price

7

BRAKE CALIPER SUPPORT REAR

54813075000

Unavailable

1

BRAKE CALIPER REAR CPL. 2005

54813080144

Unavailable

2

REPAIR KIT SEALING RINGS 26MM

50313081200

Unavailable

3

Bolt set for brake caliper 03

54813082000

Unavailable

4

BRAKE PAD SET REAR TOYO

54813090300

Unavailable

5

BRAKE PISTON 26MM 2003

54813083000

Unavailable

6

Retaining spring set 2003

54813018000

Unavailable

8

CUP SET SHORT

54613218000

Unavailable

10

BRAKE HOSE REAR 655MM 03

54813070000

Unavailable

11

BLEEDER HOLLOW SCREW M10X1

54813020000

Unavailable

12

sealing ring DIN 7603 10x14x1

0603100141

Unavailable
