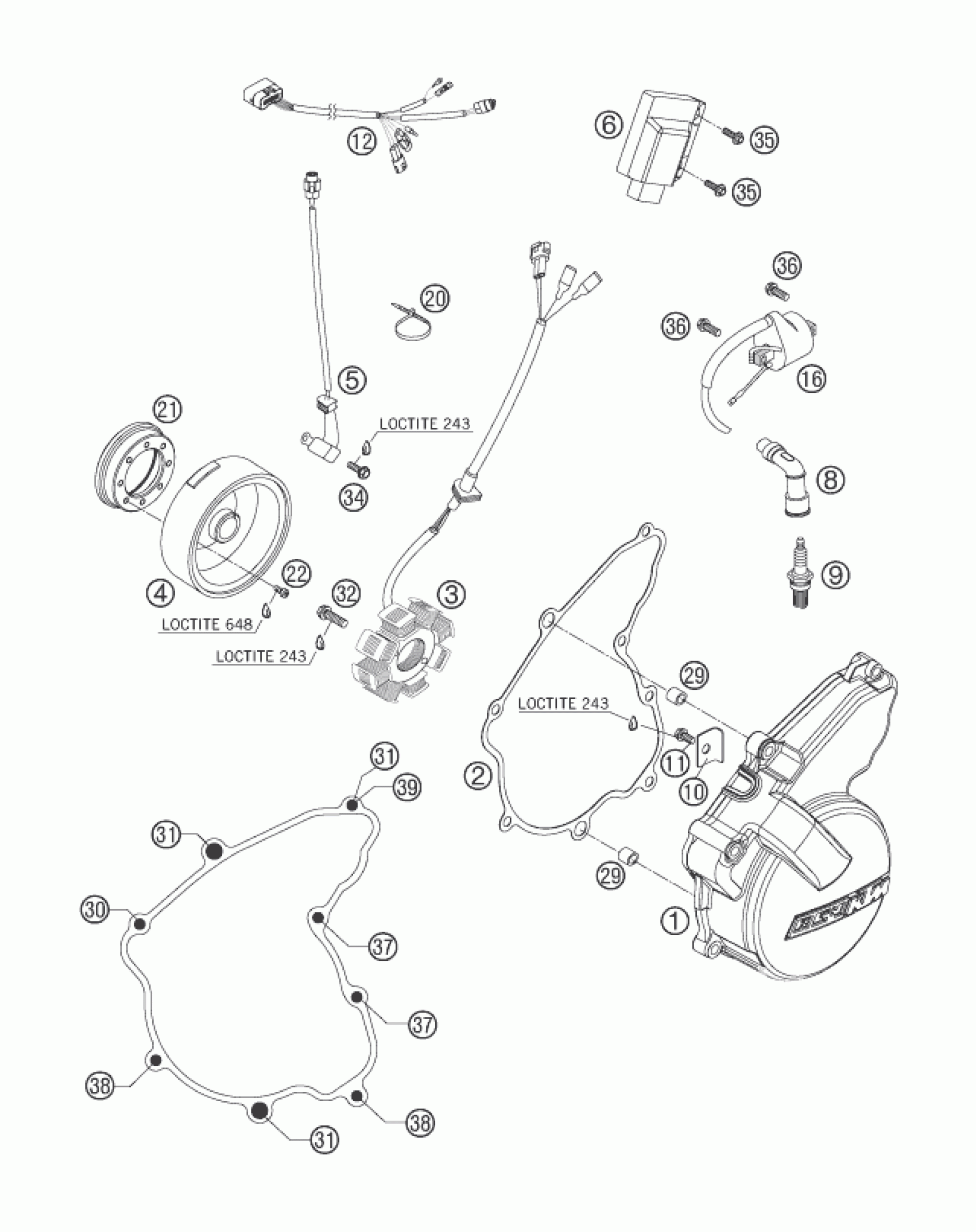

KTM 250 XC-F 2007 IGNITION SYSTEM Diagram

#

Description
Price

1

IGNITION COVER EXC-F

77030102000

Unavailable

2

IGNITION COVER GASKET EXC-F

77030140000

Unavailable

3

STATOR 2007

77039104000

Unavailable

4

FLYWHEEL

77039105100

Unavailable

5

PULSER COIL 08

77039134000

Unavailable

6

CDI UNIT 250 EXC-F 07

77039131100

Unavailable

8

SPARK PLUG CONNECT. VD05EG03

59039090100

Unavailable

9

SPARK PLUG NGK CR9EKB ´05

77039093000

Unavailable

10

WIRE RETAINING BRACKET 06

77030002050

Unavailable

11

HH COLLAR SCREW M 6X8 WS=8

0015060083

Unavailable

12

WIRING HARNESS FOR CDI EXC 04

59439032100

Unavailable

16

IGNITIONCOIL ''IG5128''

59039006000

Unavailable

20

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

21

FREEWHEEL HUB

77040025000

Unavailable

22

AH SCREW DIN6912-M5X8 10.9

00120500810

Unavailable

29

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

30

HH COLLAR SCREW M 6X50 WS=8

0015060503

Unavailable

31

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

32

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

34

HH COLLAR SCREW M 5X16 WS=8

0015050163

Unavailable

35

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

36

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

37

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

38

HH COLLAR SCREW M 6X95 WS=8

0015060953

Unavailable

39

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable
