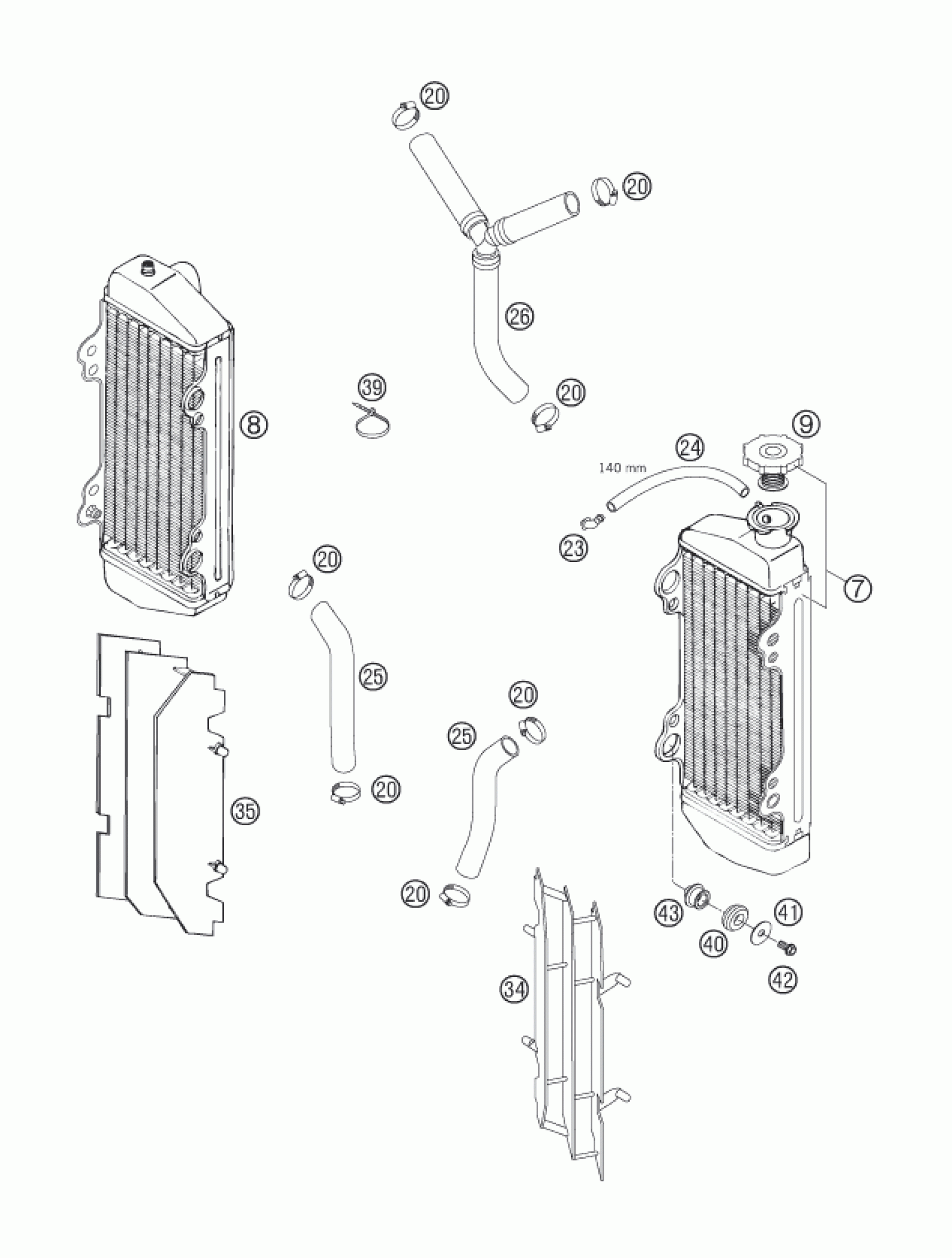

KTM 250 XC-F 2007 COOLING SYSTEM Diagram

#

Description
Price

8

RADIATOR R/S 2005

77035008000

Unavailable

9

RADIAT.CAP 20,3PSI (1,4BAR) 03

59035009000

Unavailable

20

HOSE CLAMP GEMI 18-29

10001020000

Unavailable

23

ANGLE PIECE '97

50303089000

Unavailable

24

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

25

RADIATOR HOSE L/S, R/S 250 SXF

77035025000

Unavailable

7

RADIATOR L/S 2005

77035007000

Unavailable

26

RADIATOR HOSE WITH Y-PART 05

77035026000

Unavailable

39

Cable tie 200/4.6mm black

44011076200

Unavailable

40

RUBBER SLEEVE D=12MM

41001052000

Unavailable

41

Washer DIN9021-A 6.4

0021060003

Unavailable

34

RADIATOR PROTECTOR L. BLACK

5463503420030

Unavailable

35

RADIATOR PROTECTOR RIGHT 06

5463513420030

Unavailable

42

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

43

SPACER BUSHING

77035002100

Unavailable
