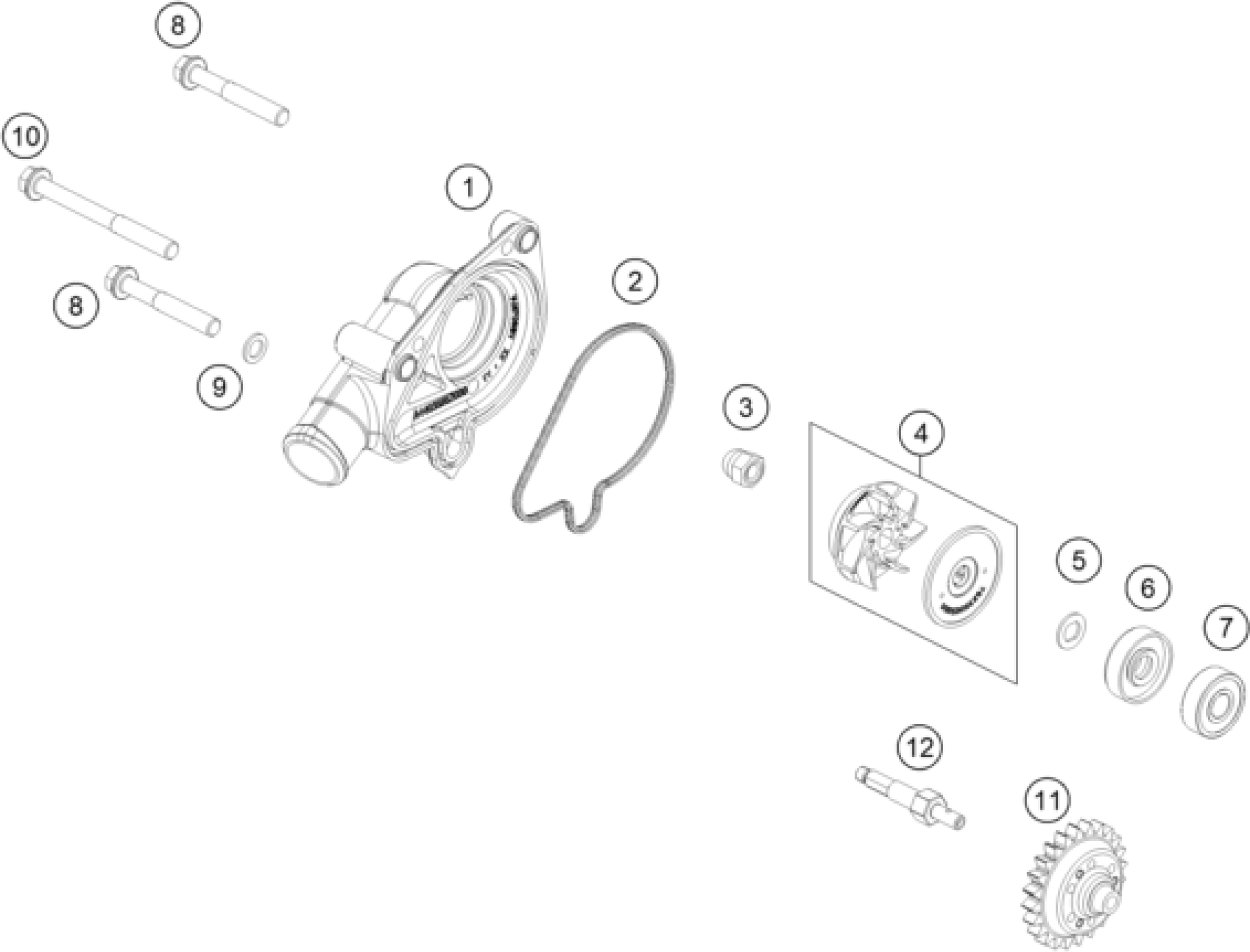

KTM 250 XC 2023 WATER PUMP Diagram

#

Description
Price

1

Water pump cover

A44035052000

Unavailable

3

CAP NUT M6 STAINLESS STEEL

61230045000

Unavailable

4

WATER PUMP WHEEL CPL.

79235055044

Unavailable

5

PREFORMED WASHER

50435049000

Unavailable

6

SHAFT SEAL RING 8X24X7 A DUO

0760082472

Unavailable

7

Grooved ball bearing 608 2RS C

0625006087

Unavailable

10

HH collar screw M6x60 TX30

0025060606

Unavailable

2

Water pump cover seal

A44035052010

Unavailable

8

HH collar screw M6x40 TX30

0025060406

Unavailable

9

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

12

Water pump shaft

A44035054000

Unavailable

11

Drive gear wheel

A44035062024

Unavailable
