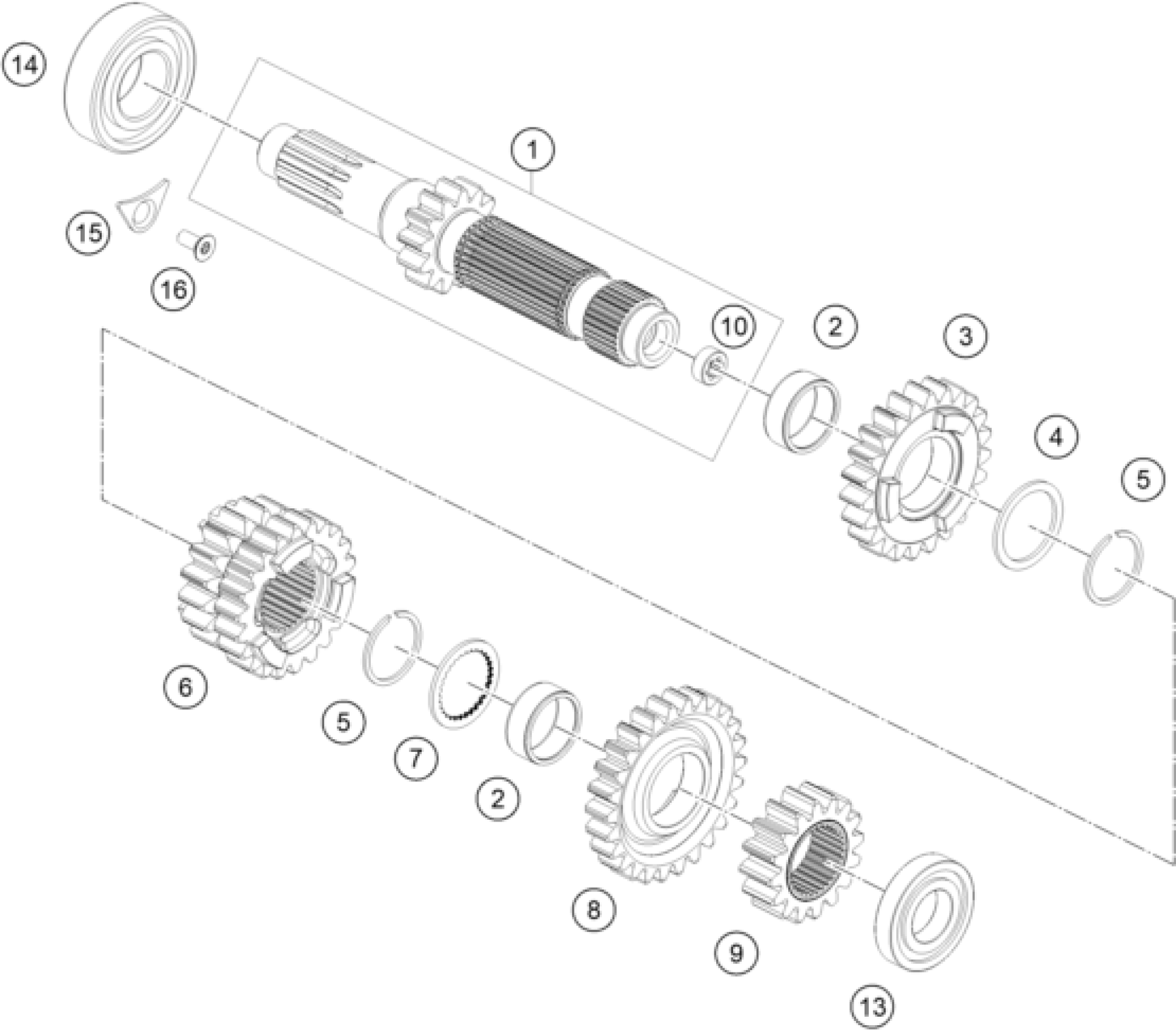

KTM 250 XC 2023 TRANSMISSION I - MAIN SHAFT Diagram

#

Description
Price

1

Main shaft cmpl.

A46033501000

Unavailable

2

NEEDLE BEAR.K 22X26X10 DIVIDED

0405222611

Unavailable

3

Idler gear 5th gear, teeth=23

A46033505000

Unavailable

4

STOP DISC 25X31X1,5

54833044000

Unavailable

5

CIRCLIP WS24

0417024000

Unavailable

6

Sliding gear 3rd/4th gear, tee

A46033503000

Unavailable

7

STOP DISC 25X0,8X30X30X7H

54833043000

Unavailable

8

Idler gear sixth-gear, teeth=2

A46033506000

Unavailable

9

Fixed gear 2nd gear, teeth=16

A46033502000

Unavailable

10

bushing

79133001010

Unavailable

13

BALL BEARING TM 16004 C4

0625160041

Unavailable

14

Groove ball bearing 6205 C4 NT

0625062056

Unavailable

15

RETAINING PLATE F. CS BEARING

75030085000

Unavailable

16

INT. TORX FLAT HEAD M5X12 T25

0019050121S

Unavailable
