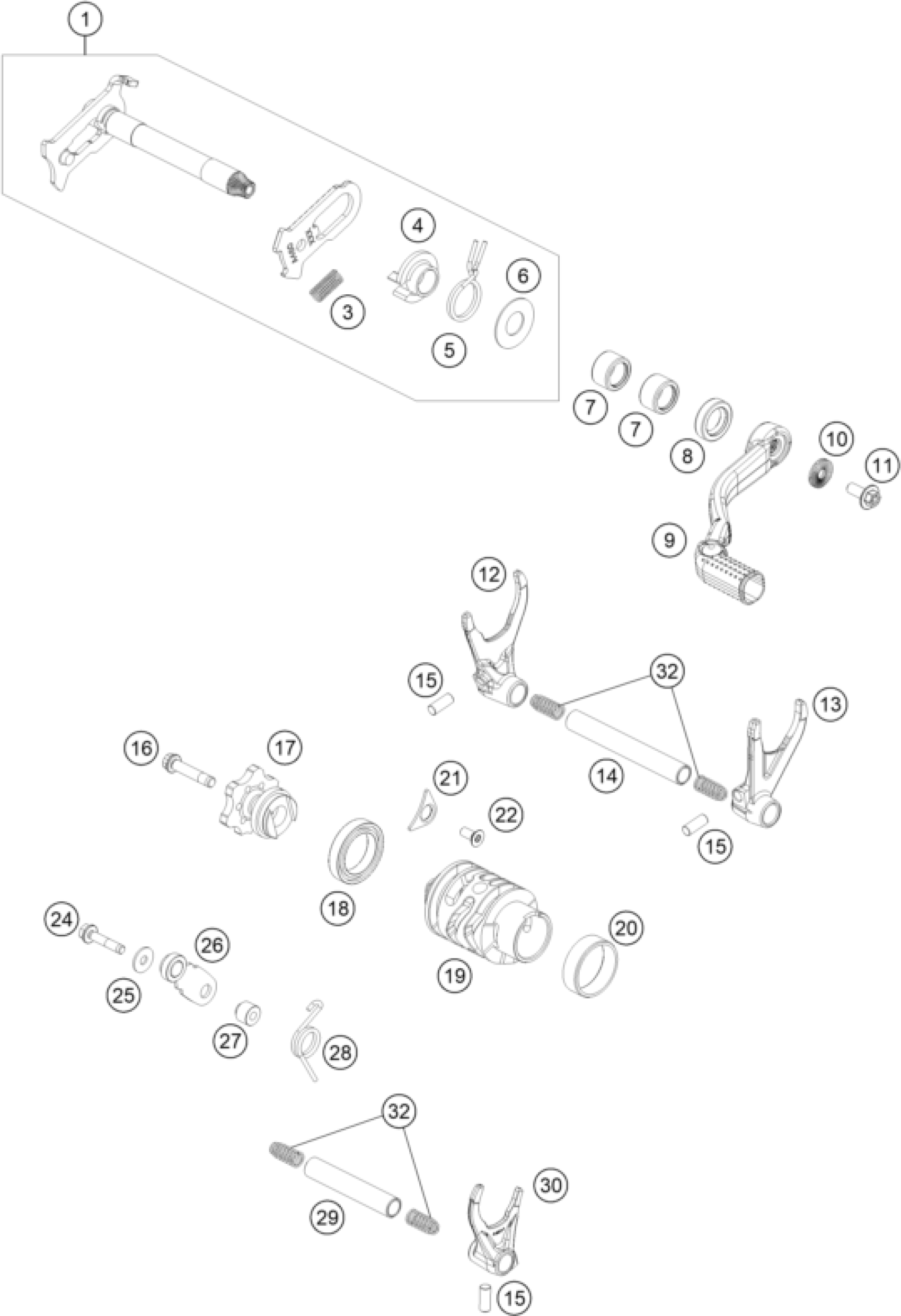

KTM 250 XC 2023 SHIFTING MECHANISM Diagram

#

Description
Price

1

Shift shaft cpl.

A46034005033

Unavailable

3

TENSIONING SPRING 0,8MM

56534013100

Unavailable

4

SPRING GUIDE

54634020000

Unavailable

5

RETURN SPRING 03

54834014000

Unavailable

6

STOP DISK 14X30X1

54634050000

Unavailable

7

needle sleeve HK 1412 14x20x12

54632095000

Unavailable

8

radial shaft seal 14x24x6 B

0760142460

Unavailable

9

Gear shift lever cmpl.

A42034031000

Unavailable

10

PAIR NORDLOCK WASHER M6

50233041500

Unavailable

11

HH collar screw M6x15 TX30

0024060156S

Unavailable

12

shift fork 1.-3. gear

A46034503000

Unavailable

13

shift fork 2.-4. gear

A46034502000

Unavailable

14

Shift fork shaft (L=93 mm)

A46034019000

Unavailable

15

NEEDLE ROLLER DIN5402 6X14,8

0402061480

Unavailable

16

HH collar screw M6x30 TX30

0025060306S

Unavailable

17

Shift star cmpl.

A46034015000

Unavailable

18

Grooved ball bearing 6805 JR C

0410002500700

Unavailable

19

Shift drum 6 gear

A46034512000

Unavailable

20

FRICTION BEARING CONTROLLER

79234012010

Unavailable

24

HH collar screw M5x25 TX30

0025050256S

Unavailable

25

washer DIN 9021 A - 5.3

0021050003

Unavailable

26

Detent arm cmpl.

A46034024044

Unavailable

27

SLEEVE FOR LOCKING LEVER

54634052300

Unavailable

28

LOCKING LEVER SPRING 03

54834023000

Unavailable

29

Shift fork shaft (L=66 mm)

A46034020000

Unavailable

30

shift fork 5.-6. gear

A46034501000

Unavailable

32

Compression spring L=25mm D=0.

58038023400

Unavailable

21

RETAINING PLATE F. CS BEARING

75030085000

Unavailable

22

INT. TORX FLAT HEAD M5X12 T25

0019050121S

Unavailable
