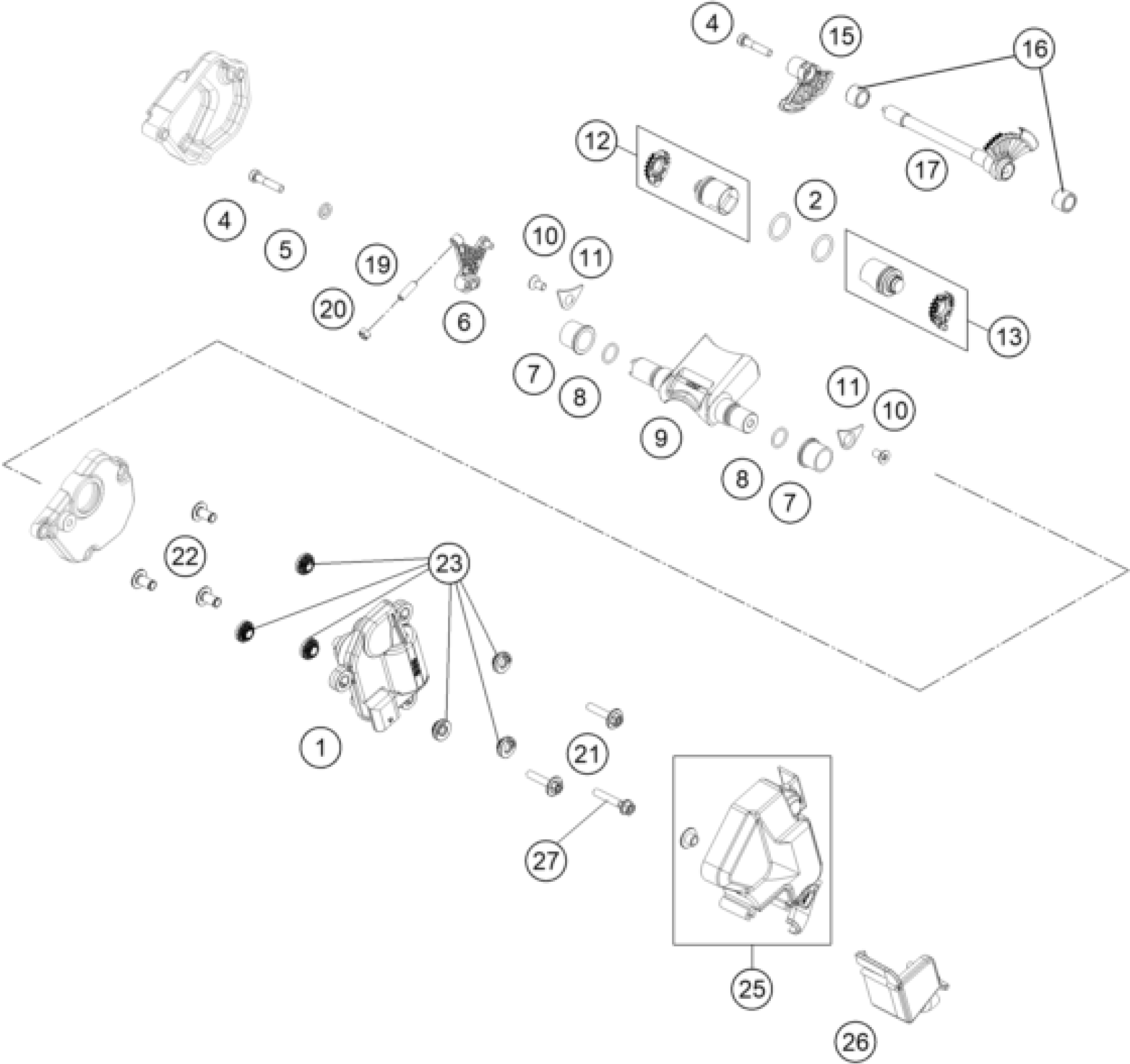

KTM 250 XC 2023 EXHAUST CONTROL Diagram

#

Description
Price

1

Exhaust control actuator cpl.

A45041072033

Unavailable

4

Bolt DIN 6912 - M5x25 SS

0012050253S

Unavailable

5

Pair of washers M6 NORDLOCK

50233041000

Unavailable

6

Control flap lever

A44037080000

Unavailable

7

exaust flap bushing

50437023100

Unavailable

8

O-ring 12x1.5 FPM75

07700120151

Unavailable

9

Control flap 250

A44037020000

Unavailable

10

hex lobe countersunc screw M5x

0019050106S

Unavailable

11

RETAINING PLATE F. CS BEARING

75030085000

Unavailable

12

Power valve right cmpl.

A44037062044

Unavailable

13

Power valve left cmpl.

A44037061044

Unavailable

15

Control gate right

A44037065000

Unavailable

16

needle sleeve HK 1010 10x14x10

0618101410

Unavailable

17

Idler shaft cmpl.

A44037070033

Unavailable

21

HH collar screw, M5x25, ISA 30

0000240502500S

Unavailable

22

Actuator bushing

A45041072010

Unavailable

23

Damper actuator

A45041072005

Unavailable

25

Actuator protection cap

A42037096000

Unavailable

26

Actuator protection cap

A42037096020

Unavailable

19

Grub screw M5x16 with AH

0913050160

Unavailable

20

Nut M5 SW7

0934050040

Unavailable

27

HH COLLAR SCREW M5X30 TX30

0025050306

Unavailable

2

O-ring 16x2 Viton 75

0770160021

Unavailable
