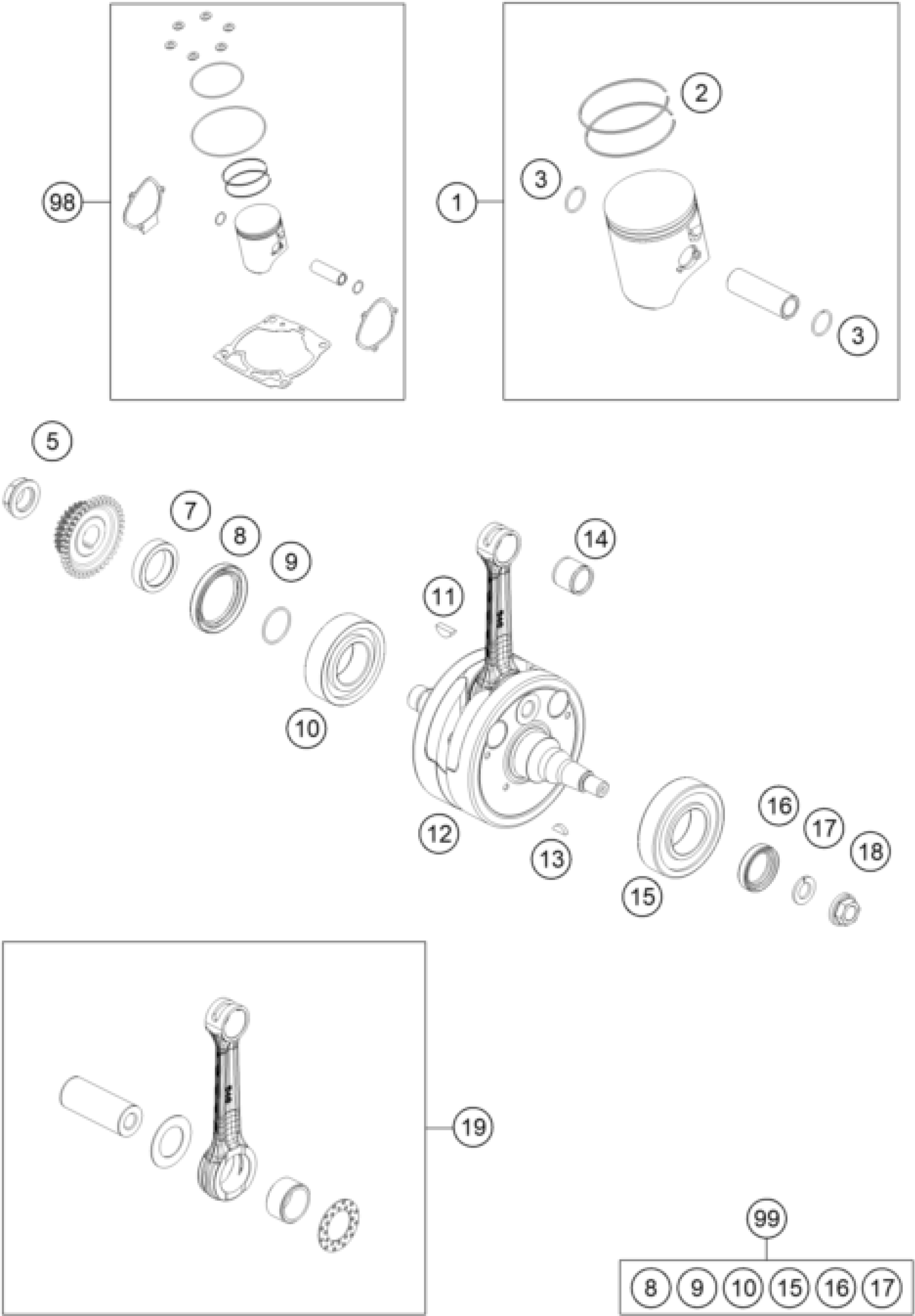

KTM 250 XC 2023 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

Piston cpl. I

55430007000 I

Unavailable

1

Piston cpl. II

55430007000 II

Unavailable

2

TRAPEZOID RING 250 66,4 MM

54830232000

Unavailable

3

WIRE LOCK RING C18X1,5

54030074000

Unavailable

5

HEX.NUT L/SH M18X1,5

54630029000

Unavailable

7

DISTANCE SLEEVE

55430016000

Unavailable

8

SHAFT SEAL RING 38X52X7BTSL

0760385273

Unavailable

9

O-RING 25,00X1,50 NBR 70

0770250015

Unavailable

10

BALL BEARING 32X65X17 NTN

0625623204

Unavailable

11

WOODRUFF KEY 5X6,5 HARDED

6946005

Unavailable

12

CRANKSHAFT EXC

55430118100

Unavailable

13

WOODRUFF KEY DIN6888-3X5X13

0888030050

Unavailable

14

NEEDLE BEARING KBK 18X22X20

54430034000

Unavailable

15

CYLIND.ROL.BEAR. NJ207ET2XCS42

56530123200

Unavailable

16

SHAFT SEAL RING 25X35X7 BTSL

0760253570

Unavailable

17

LOCKING RING VSK 12

50230029012

Unavailable

18

COLLAR NUT M12X1 R/S

49030021000

Unavailable

19

CON.ROD REP.SET 250/300

54830015244

Unavailable

98

Pistonkit Gr.I MX 250

A44030007010 I

Unavailable

98

Pistonkit Gr.II MX 250

A44030007010 II

Unavailable

99

Crankshaft repair kit

54830018488

Unavailable
