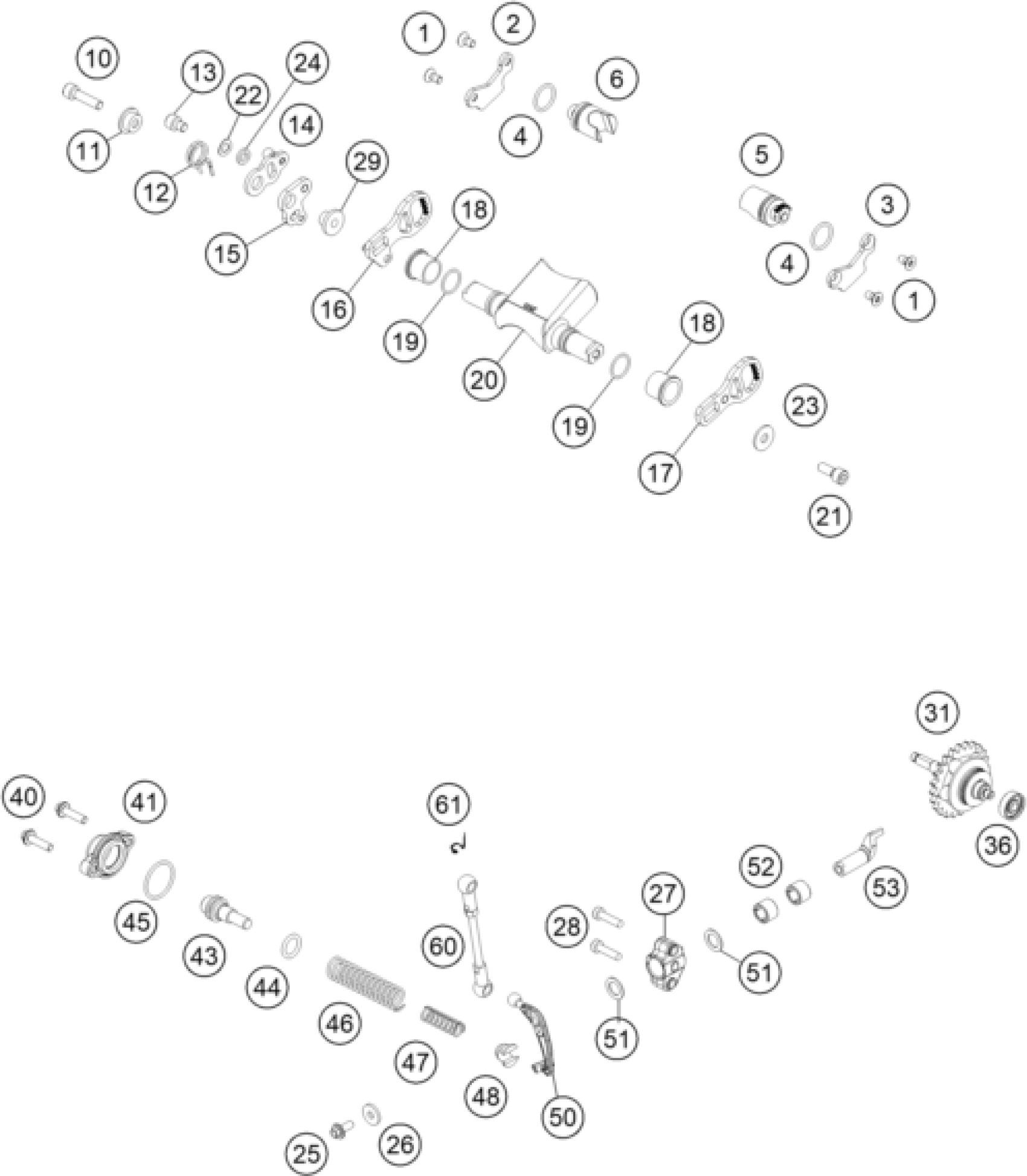

KTM 250 XC 2019 EXHAUST CONTROL Diagram

#

Description
Price

1

hex lobe countersunc screw M5x

0019050106S

Unavailable

2

RETAINING PLATE R/S 07

54837062000

Unavailable

3

RETAINING PLATE L/S 07

54837063000

Unavailable

4

O-ring 16x2 Viton 75

0770160021

Unavailable

5

CONTR.VALVE 250 LEFT KPL.

55437061044

Unavailable

6

CONTR.VALVE 250 RIGHT KPL.

55437062044

Unavailable

10

CYL. SCREW DIN14580 M 6X25

014580060256

Unavailable

11

SPRING SLEEVE

54637067000

Unavailable

12

Overload spring

55537066000

Unavailable

13

Cap head screw M6x10

014580060106

Unavailable

14

Adjusting lever cmpl.

55537065000

Unavailable

15

Post mount cmpl.

55537080000

Unavailable

16

Gear segment right cmpl.

55537064044

Unavailable

17

GEAR SEGMENT L/S 250 07

54837064150

Unavailable

18

exaust flap bushing

50437023100

Unavailable

19

O-RING 15,00X1,50 VITON

0770150151

Unavailable

20

Control hatch 250

55537020000

Unavailable

21

Cap head bold ISO 14580 M6x16

014580060166

Unavailable

22

spring washer DIN 137 B - 6

0137060003

Unavailable

25

HH COLLAR SCREW M 5X12 WS=6

0014050123

Unavailable

26

WASHER DIN7349-5X15X2

0349000050

Unavailable

27

BEARING SUPPORT

55437058000

Unavailable

28

HH collar screw M5x25 TX30

0025050256S

Unavailable

29

Bearing sleeve

55537068000

Unavailable

31

Centrifugal governor assy.

55537050244

Unavailable

36

Grooved ball bearing 626LLBC3/

54637098100

Unavailable

40

HH COLLAR SCREW M 5X20 WS=6

0014050203

Unavailable

41

COVER LID 250-380'98

54637070100

Unavailable

43

SPRING GUIDE 250/300

54837075000

Unavailable

44

O-RING 12,37X2,62 NBR70

0770021120

Unavailable

45

O-RING 24,00X2,00 NBR70

0770240020

Unavailable

46

ADJUST. SPRING 2003

54837069000

Unavailable

47

AUXILIARY SPRING SOFT, RED

54837072000

Unavailable

47

AUXILIARY SPRING MID. YELLOW

54637072300

Unavailable

47

AUXILIARY SPRING HARD GREEN

54837072100

Unavailable

48

SPRING INSERT

54637071200

Unavailable

50

angle lever

47237056000

Unavailable

51

SHIM WASHER DIN988 10X16X1

0988101610

Unavailable

52

needle sleeve HK 1010 10x14x10

0618101410

Unavailable

53

ADJUSTING LEVER 250/300

55437057100

Unavailable

60

Linkage cmpl.

55537095044

Unavailable

61

SECURING DIN-71805-S-8

50237195055

Unavailable

23

Washer DIN9021-A 6.4

0021060003

Unavailable

24

WASHER 6,5X11X2

54637056100

Unavailable
