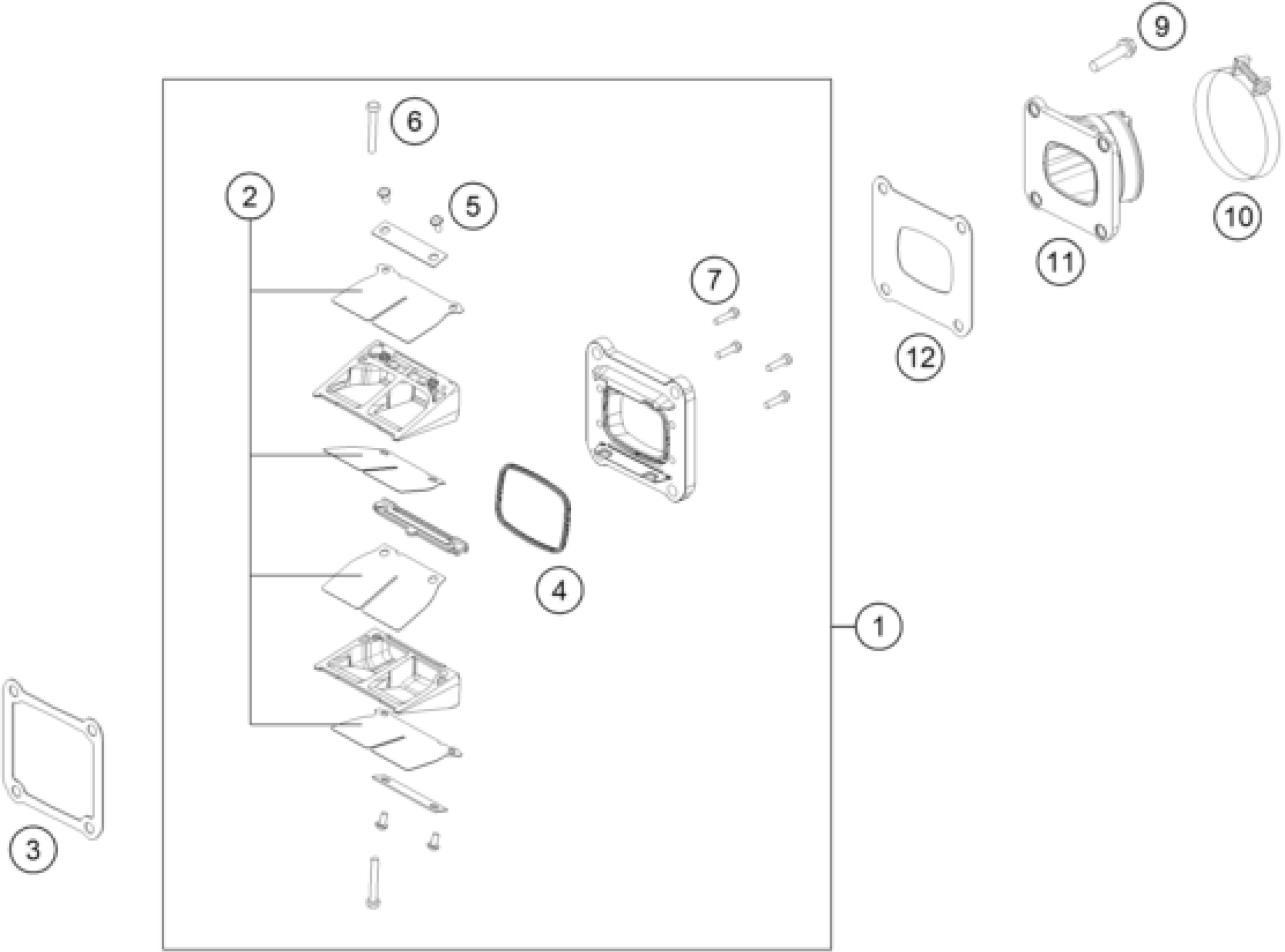

KTM 250 XC 2018 REED VALVE CASE Diagram

#

Description

Price

1

REED VALVE CASE CPL.

50430151044

Unavailable

2

REED VALVE SET

54830052344

Unavailable

3

GASKET REED VALVE CASE

50430098050

Unavailable

4

GASKET SUPPORTING PLATE

54830153050

Unavailable

5

EJOT DELTA PT SCREW 30X5,5

00810300553

Unavailable

6

EJOT DELTA PT SCREW 35X25

0081035253

Unavailable

7

EJOT DELTA PT SCREW 30X12

0081030124

Unavailable

9

HH collar screw M6x25 TX30

0025060256

Unavailable

10

CLAMP 54/09 MIXED

54830061000

Unavailable

11

Intake flange

55430250100

Unavailable

12

GASKET INTAKE FLANGE

50430098060

Unavailable
