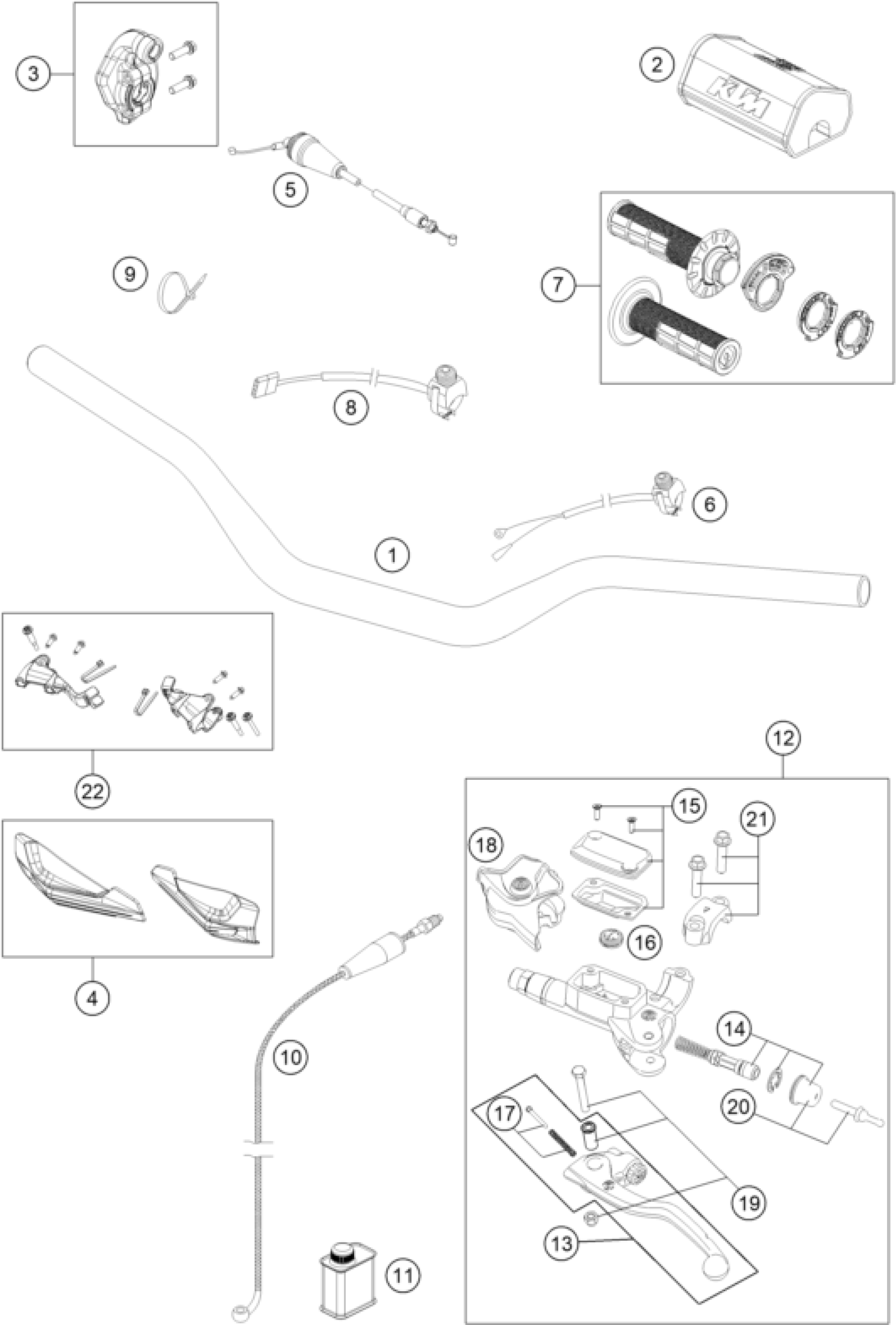

KTM 250 XC 2018 HANDLEBAR, CONTROLS Diagram

#

Description

Price

1

HANDLEBAR D=28MM

7900200100030

Unavailable

2

BAR PAD

79002002000

Unavailable

3

THROTTLE BODY CPL.

50402010025

Unavailable

4

Handguard

79602182044EB

Unavailable

5

THROTTLE CABLE

50402091000

Unavailable

6

Kill switch

50311089200

Unavailable

7

GRIP SET

79002021100

Unavailable

8

STARTER BUTTON GREY 13

78111074000

Unavailable

9

Cable tie 200/4.6mm black

44011076200

Unavailable

10

CLUTCH PIPE

79232063000

Unavailable

11

Brake fluid DOT5.1 0,25L

00062030000

Unavailable

12

MASTER CYLINDER CPL.

54802030144

Unavailable

13

Clutch lever cmpl. BREMBO 06

54802031000

Unavailable

14

REP. KIT PISTON 06

54802032000

Unavailable

15

COVER HYD. CLUTCH CPL. 2014

5480200310030

Unavailable

16

VALVE

54802051000

Unavailable

17

BOLT KPL.

54802052000

Unavailable

18

PROTECTION CAP 06

54802037000

Unavailable

19

Lever screw cmpl. 06

54802038100

Unavailable

20

Push rod cmpl.

54802046000

Unavailable

21

CLAMP CPL. 06

54802005100

Unavailable

22

Handguard assembly kit

79602084044

Unavailable
