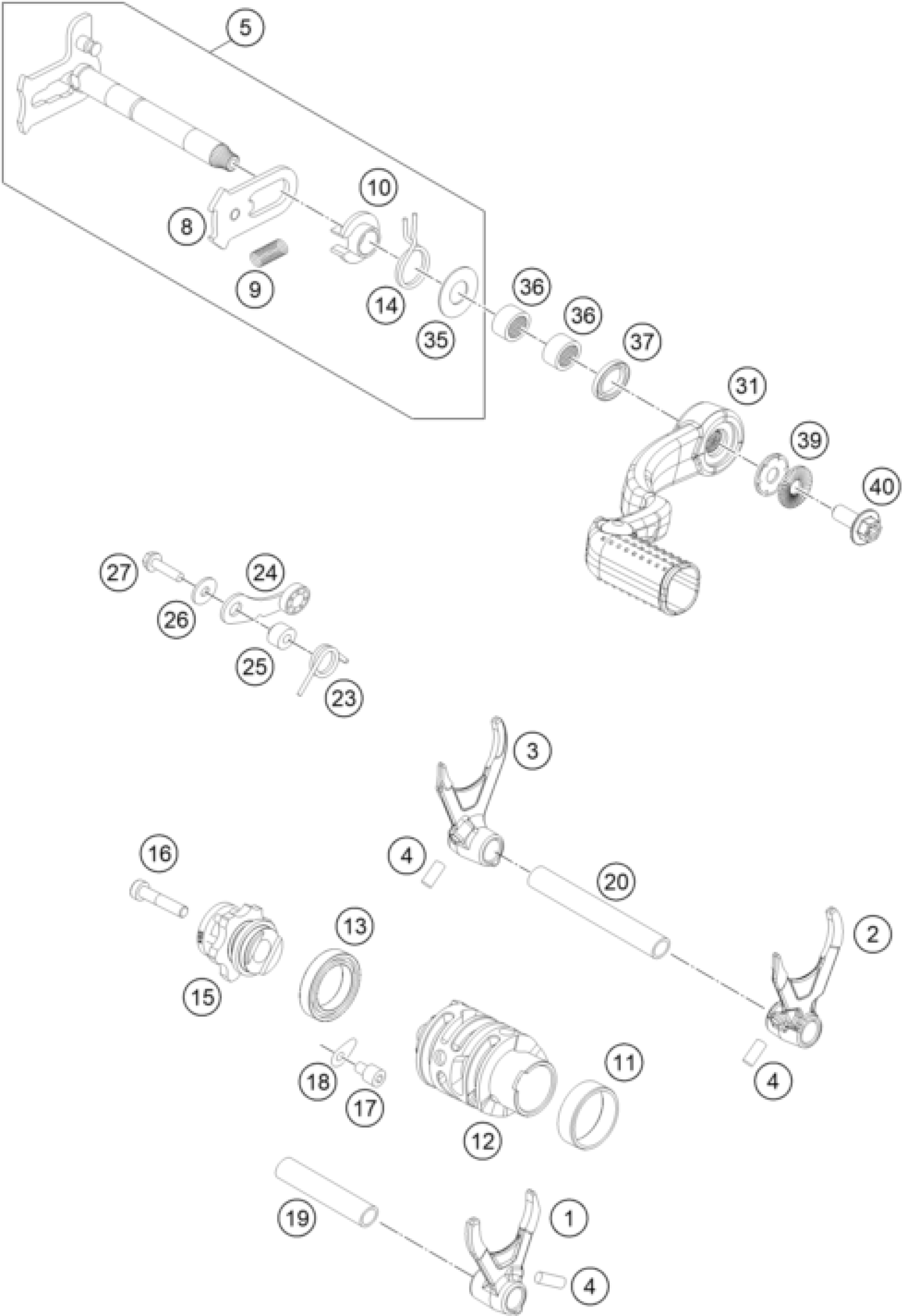

KTM 250 XC 2017 SHIFTING MECHANISM Diagram

#

Description
Price

1

SHIFT FORK 5.-6. GEAR

79234101000

Unavailable

2

SHIFT FORK 2.-4. GEAR

79234102000

Unavailable

3

SHIFT FORK 1.-3. GEAR

79234103000

Unavailable

4

NEEDLE ROLLER DIN5402 6X14,8

0402061480

Unavailable

5

SHIFT SHAFT CPL.

55434005133

Unavailable

8

SLIDING PLATE CPL.

79234008144

Unavailable

9

TENSIONING SPRING 0,8MM

56534013100

Unavailable

10

SPRING GUIDE

54634020000

Unavailable

11

FRICTION BEARING CONTROLLER

79234012010

Unavailable

12

SHIFT ROLLER

79234112000

Unavailable

13

BALL BEARING 61805 C3

0625618050

Unavailable

14

RETURN SPRING 03

54834014000

Unavailable

15

GEARSHIFT CPL.

55434015000

Unavailable

16

AH SCREW DIN6912 M 6X30

0984060302

Unavailable

17

hex lobe countersunc screw M5x

0019050106S

Unavailable

18

RETAINING PLATE F. CS BEARING

75030085000

Unavailable

19

SHIFT. RAIL MAIN SHAFT 250/300

54834019000

Unavailable

20

SHIFTING MAIN L=93MM 05

77034019000

Unavailable

23

LOCKING LEVER SPRING

55434023100

Unavailable

24

LOCKING LEVER CPL.

55434024000

Unavailable

25

SLEEVE FOR LOCKING LEVER

54634052300

Unavailable

26

WASHER DIN7349-5X15X2

0349000050

Unavailable

27

HH collar screw M5x20 TX30

0025050206

Unavailable

31

SHIFTING LEVER CPL.

55434031000

Unavailable

35

STOP DISK 14X30X1

54634050000

Unavailable

36

needle sleeve HK 1412 14x20x12

54632095000

Unavailable

37

radial shaft seal 14x24x6 B

0760142460

Unavailable

39

PAIR NORDLOCK WASHER M6

50233041500

Unavailable

40

HH collar screw M6x15 TX30

0024060156S

Unavailable
