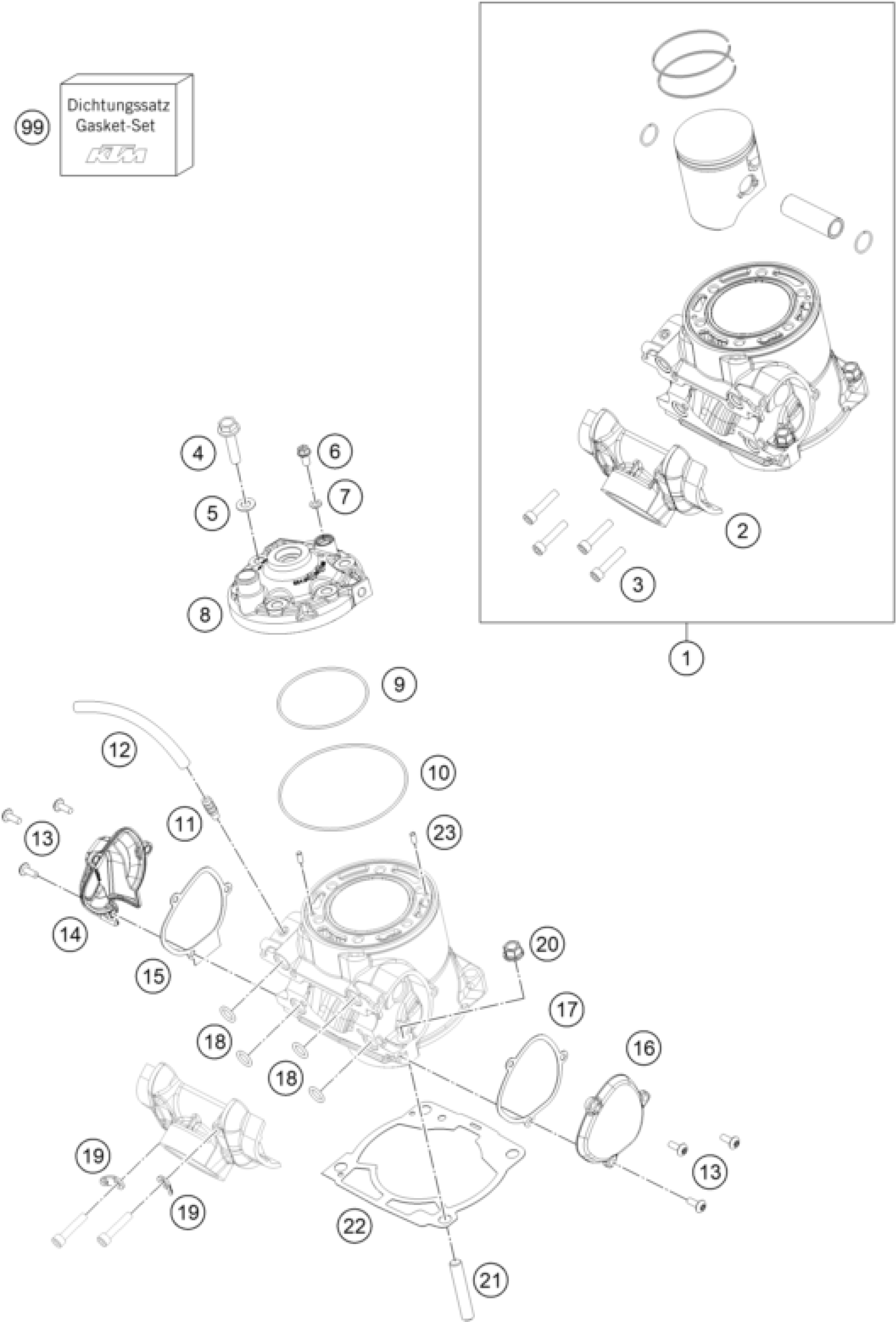

KTM 250 XC 2017 CYLINDER, CYLINDER HEAD Diagram

#

Description
Price

4

COLLAR SCREW M 8X35 WS=13

54830079000

Unavailable

7

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

8

CYLINDER HEAD 250 XC

55430206000

Unavailable

9

O-RING 73,00X2,00 VITON

0770730020

Unavailable

10

O-ring 105x2

0770105020

Unavailable

11

VACUUM CONNECTION M 6X1

58336020090

Unavailable

12

PVC-HOSE 6X9

50335030001

Unavailable

13

Oval head screw M5x14 TX25

58605083014

Unavailable

14

CONTROL COVER R/S 09

5483700700015

Unavailable

15

GASKET FOR CONTROL COVER R/S

54837008000

Unavailable

16

CONTROL COVER L/S 09

5483700500015

Unavailable

17

GASKET FOR CONTROL COVER L/S

54837006000

Unavailable

18

O-RING 11,3 X2,4 SILICON

0770116241

Unavailable

19

RETAINING PLATE

51005074000

Unavailable

20

COLLAR NUT M10 WS=13

54630044000

Unavailable

21

STUD SCREW DIN0835-M10X35

0835100351S

Unavailable

22

CYLINDER BASE GASKET

55430030025

Unavailable

22

CYLINDER BASE GASKET

55430030020

Unavailable

22

CYLINDER BASE GASKET

55430030040

Unavailable

22

CYLINDER BASE GASKET

55430030050

Unavailable

22

CYLINDER FOOT GASKET

55430030075

Unavailable

23

Needle roll.DIN5402 NRB 4X9.8

0402040980

Unavailable

99

Gasket set piston 250/300

55430097000

Unavailable

6

HH collar screw M6x12 TX30

0025060126

Unavailable

1

CYLINDER + PISTON CPL. 17

55430038000

Unavailable

2

Connection Flange

55437001000

Unavailable

3

AH SCREW DIN0912-M 6X35

0912060353

Unavailable

5

CU-SEAL RING 8 X 16 X 1

56530080000

Unavailable
