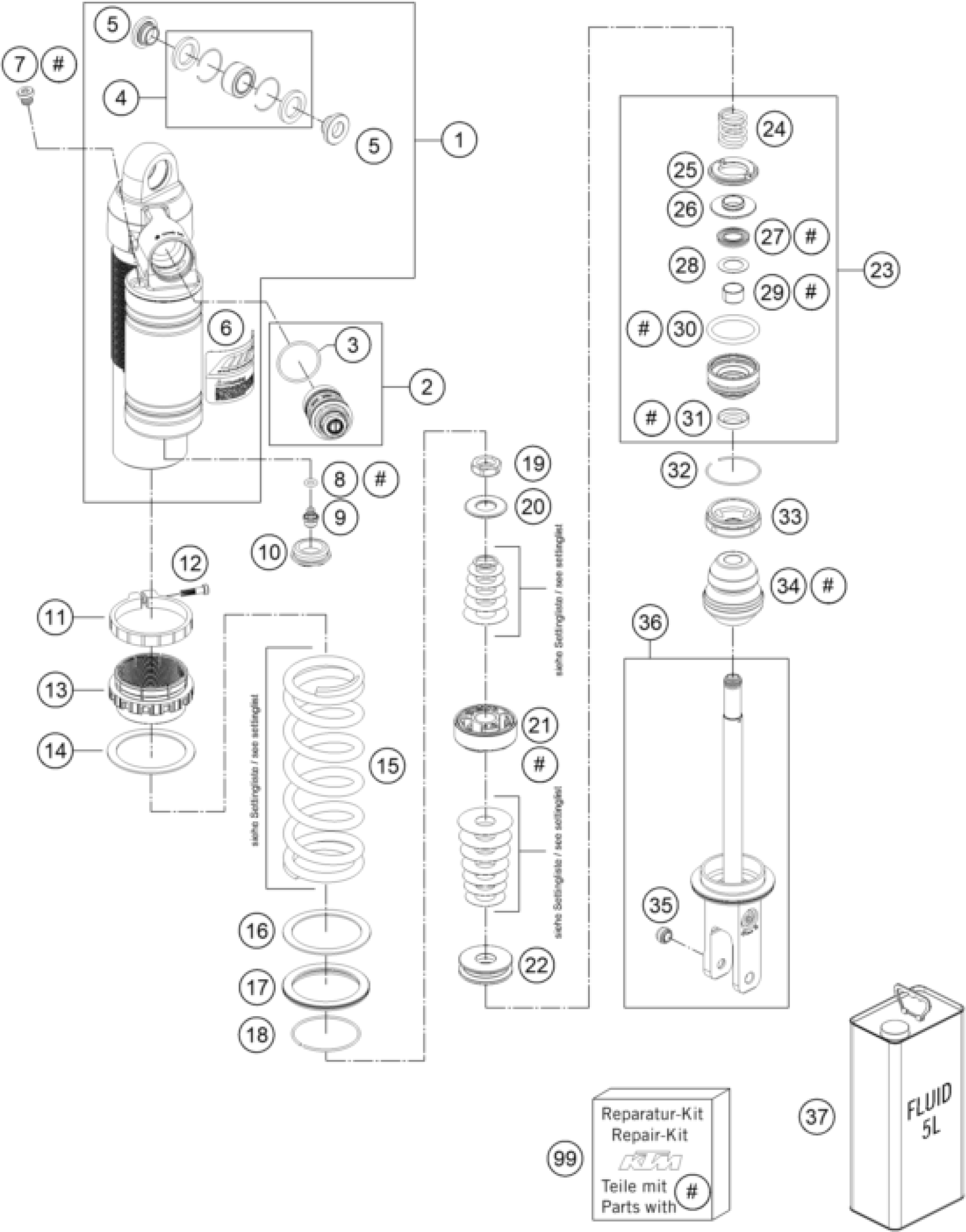

KTM 250 XC 2015 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

20

Rebound disc 16x34x2 h0

50180836

Unavailable

21

PISTON D50

50180786E

Unavailable

22

Rebound disc 16x43x12,5 h8

50180801

Unavailable

23

ADAPTER D50 H28 CPL.

50180603S3

Unavailable

24

Spring (3,2) 30-30

50180780

Unavailable

25

Rubber pad rebound 28,8x48x8

50180798

Unavailable

26

Spring retainer 18,6x43,7x2 re

50180800

Unavailable

27

Seal ring cpl. 18x30x5

50180605S

Unavailable

28

Shim 29.75x19x0.4

50180604

Unavailable

29

Guide bushing 18x20x12

50180974

Unavailable

30

O-ring 41x5 NBR70

50180103

Unavailable

31

Dirt scarper NOK 18mm black

50180606

Unavailable

32

Round-wire snap ring 53x1,75

50180126

Unavailable

33

Cover 50x6 h16

50180626

Unavailable

34

Rubber pad 17x59x64

50180775

Unavailable

1

MONOSHOCK UPPER PART CPL.

50180944S1

Unavailable

2

Compression cpl.

50180213S21

Unavailable

3

O-ring 25x1,5 Viton70

50180218

Unavailable

4

Ball joint bearing kit top 12m

R12012

Unavailable

5

Distance bush 10x15/18/24,5x10

46180010

Unavailable

6

Sticker WP warning 47x63

52000087

Unavailable

7

HS cylinder-head screw R1/8 l8

50180095

Unavailable

8

O-ring 5,28x1,78 NBR70 black

46810893

Unavailable

9

HS lock screw M5x6

36120151

Unavailable

10

Rubber cap do not open 22x5,5

46811208

Unavailable

11

Clamp d64

50180937

Unavailable

12

HS cylinder-head screw M5x20 D

14460042

Unavailable

13

Spring retainer M56x2x63,8x33

50180938

Unavailable

14

Intermediate washer spring 61,

50180114

Unavailable

15

SPRING 260 51 N/MM

91210102S

Unavailable

15

SPRING 260 54 N/MM

91210103S

Unavailable

15

SPRING 260 57 N/MM

91210104S

Unavailable

16

Intermediate washer spring 61,

50180793

Unavailable

17

Spring retainer 61,5x79,1x7

50180824

Unavailable

18

Round-wire snap ring 58,5x2

50180273

Unavailable

19

Piston rod nut 16x1

50180141

Unavailable

35

Bush M10x12/15/13x9,5

46811205

Unavailable

36

MONOSHOCK BOTTOM PART CPL.

50180773SA1

Unavailable

37

SHOCK ABSORBER FLUID 5 LT

50180751S1

Unavailable

99

REPAIR KIT

R12020

Unavailable
