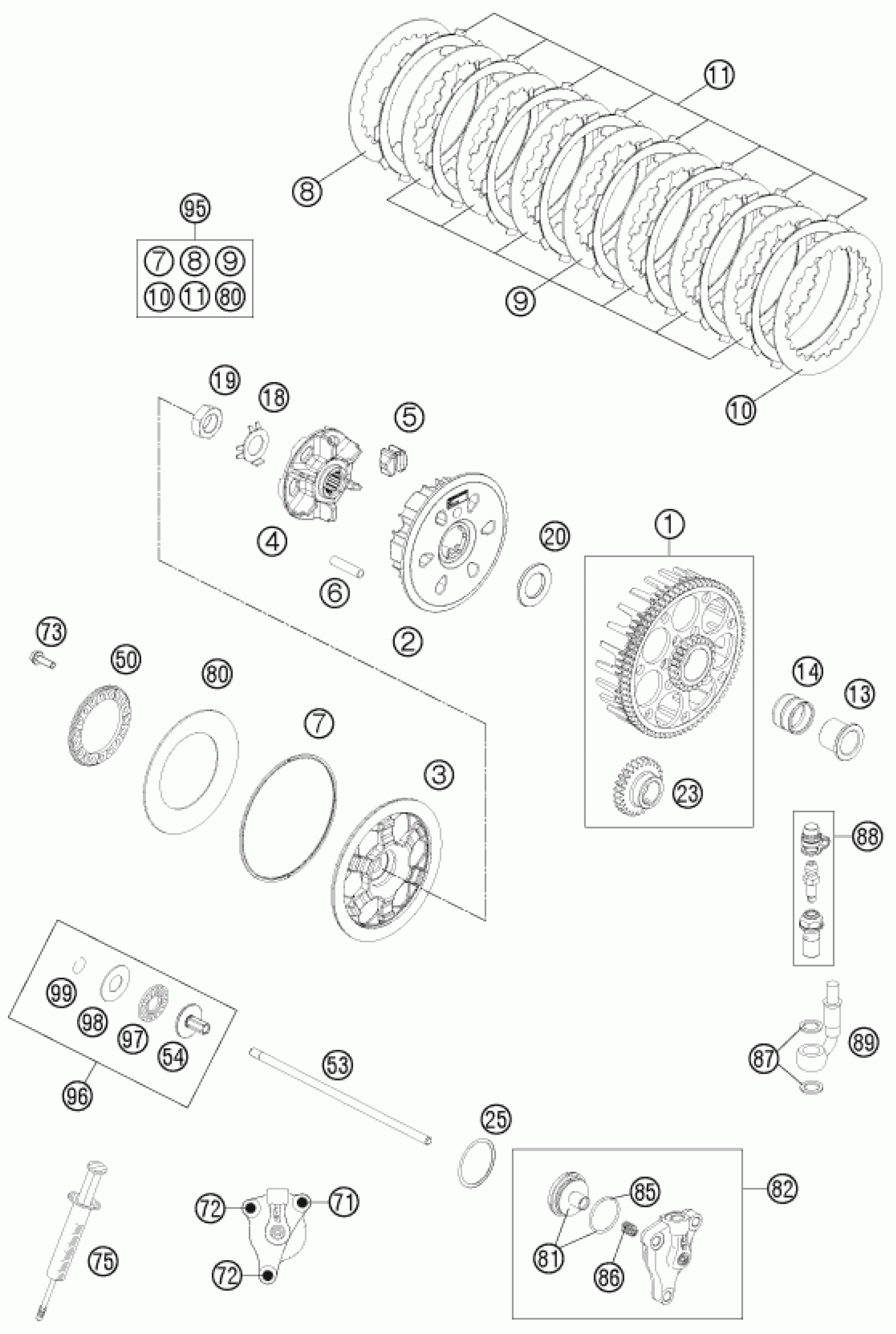

KTM 250 XC 2015 CLUTCH Diagram
#
1
CLUTCH CAGE INCL. PRIM. WHEEL
54832024044
Unavailable
2
INNER CLUTCH HUB 450SX-F 2014
78132002200
Unavailable
3
CLUTCH PRESSURE CAP
78132003100
Unavailable
4
HUB
78132002111
Unavailable
5
DAMPING RUBBER
78132025100
Unavailable
6
SLEEVE 7,5X33.4
78132004000
Unavailable
7
WASHER 112X118X1.5
78132013000
Unavailable
8
INTERMEDIATE DISC 1MM 2002
59032010100
Unavailable
9
INTERMEDIATE DISC 1,4MM 2002
59032010200
Unavailable
10
INTERMEDIATE DISC 1MM
78932010000
Unavailable
11
LINING DISC 1,95 MM
54832011100
Unavailable
13
INNER RING 21.65X26X24.5
54832015100
Unavailable
14
NEEDLE BEARING K26X30X22ZW.KSE
56532095000
Unavailable
18
TAB WASHER
78132018000
Unavailable
19
HEXAGON NUT DIN0936-M18X1,5 R.
0936181505
Unavailable
20
WASHER 21.7 X 37 X 2.5
54832009000
Unavailable
23
PRIMARY GEAR 26T 2003
54832000026
Unavailable
25
O-ring 30x1.5 NBR 70
0770300015
Unavailable
50
SPRING RING
54832006000
Unavailable
53
PUSH ROD
54832054100
Unavailable
54
PRESSURE PIECE
78032057000
Unavailable
71
HH collar screw M6x30 TX30
0025060306
Unavailable
72
HH collar screw M6x20 TX30
0025060206
Unavailable
73
HH collar screw M5x16 TX30
0025050166
Unavailable
75
VENT INJEKTION HYDR. CLUTCH
50329050000
Unavailable
80
BELLEVILLE SPRING 71X115X1,5 I
78132005000
Unavailable
81
PISTON CPL.
54832066000
Unavailable
82
OUTPUT CYLINDER CPL. 06
54832061044
Unavailable
85
O-RING
54832067000
Unavailable
86
PRESSURE SPRING
54832069000
Unavailable
87
sealing ring DIN 7603 10x14x1
0603100141
Unavailable
88
BLEEDER SCREW CPL. 05
62513020000
Unavailable
89
CLUTCH PIPE 06
54832063000
Unavailable
95
CLUTCH KIT 250/300 13-15
54832011110
Unavailable
96
PRESSURE PIECE CPL. 08
78032057044
Unavailable
97
AXIAL NEEDLE BEARING AXK 1226
54637097200
Unavailable
98
AXIAL WASHER AS1226 12X26X1
54637098200
Unavailable
99
CIRCLIP DIN7993-RW12
0993012000
Unavailable
