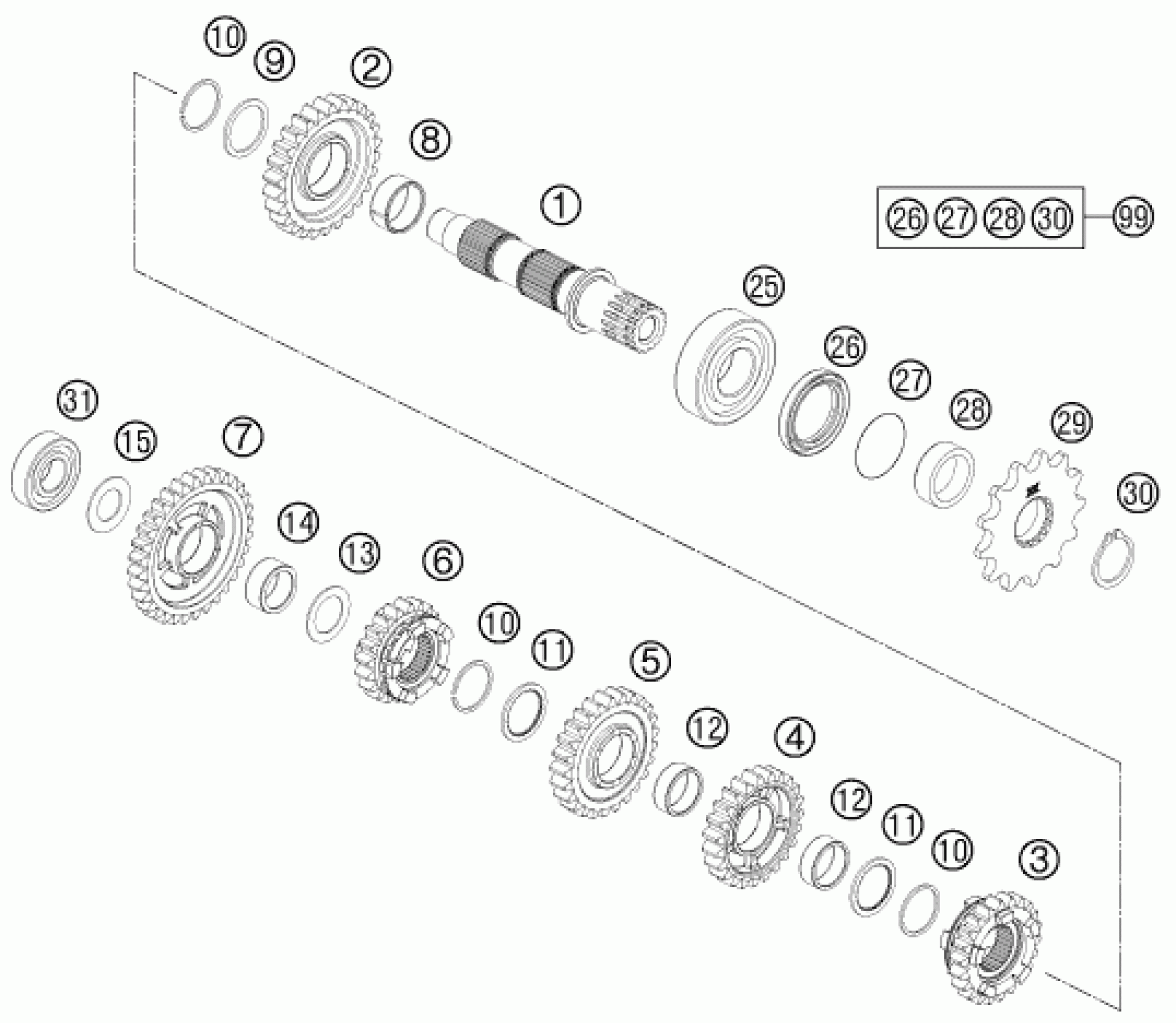

KTM 250 XC 2014 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

1

COUNTER SHAFT CPL.

54833210100

Unavailable

2

IDLER GEAR 2. GEAR, 25

54833312000

Unavailable

3

SLIDING GEAR 5.G., Z=22

54833215000

Unavailable

4

IDLER GEAR 4.G., Z=23

54833214000

Unavailable

5

IDLER GEAR 3.G., Z= 25

54833213000

Unavailable

6

SLIDING GEAR 6.G., Z=20

54833216000

Unavailable

7

IDLER GEAR 1. GEAR, 31

54833311000

Unavailable

8

NEDDLE BEAR. K24X28X11,9 DIV.

0405242812

Unavailable

9

STOP DISC 25X31X1,5

54833044000

Unavailable

10

CIRCLIP WS24

0417024000

Unavailable

11

STOP DISC 25X0,8X30X30X7H

54833043000

Unavailable

12

NEEDLE BEAR.K 22X26X10 DIVIDED

0405222611

Unavailable

13

STOP DISC 20,2X30X1

54833080000

Unavailable

14

NEEDLE BEARING K 20X26X12

0405202612

Unavailable

15

STOP DISC 17,2X30X1

56033030000

Unavailable

25

BALL BEARING TM-SC05C20C4 NTN

54833025000

Unavailable

26

SHAFT SEAL RING 32X45X7 BSLNBR

0760324571

Unavailable

27

O-RING 25,00X2,00 NBR 70

0770250020

Unavailable

28

spacer sleeve drive end

54833032011

Unavailable

29

FRONT SPROCKET 13-T

50033029013

Unavailable

29

FRONT SPROCKET 14-T

50033029014

Unavailable

30

LOCK RING DIN0471-25X1,64SD

52033096000

Unavailable

31

BALL BEARING 6203 JR2 C3

0625062035

Unavailable

99

COUNTER SHAFT REP.KIT 2 STROKE

00050000940

Unavailable
