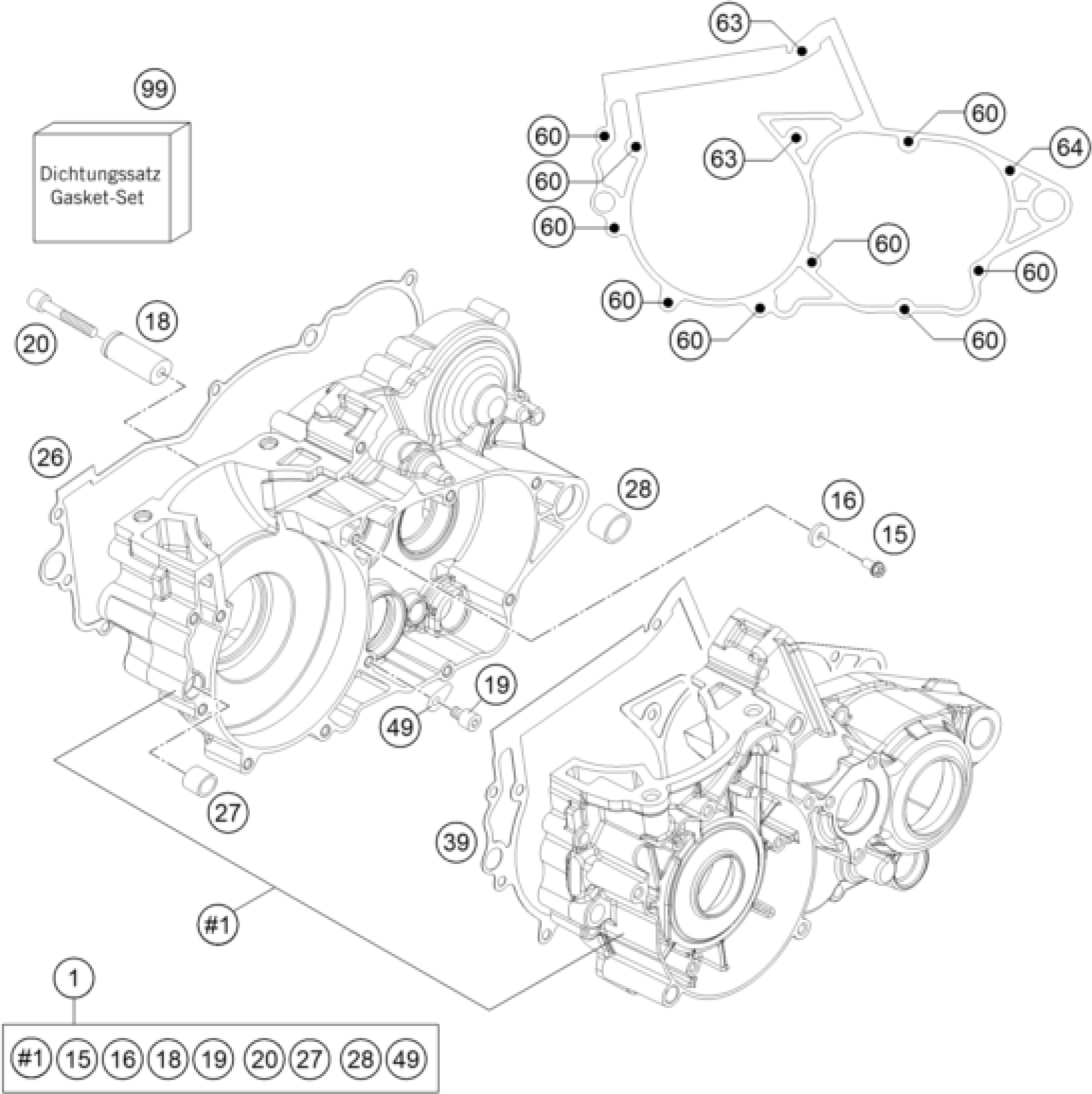

KTM 250 XC 2014 ENGINE CASE Diagram

#

Description
Price

20

AH SCREW DIN0912-M 6X40 A2

0912060404

Unavailable

26

CLUTCH COVER GASKET 2003

54830024000

Unavailable

49

RETAINING PLATE

54634049000

Unavailable

39

ENGINE CASE GASKET 2003

54830039000

Unavailable

27

DOWEL BUSHING 13,8X11X12

54630027000

Unavailable

28

DOWEL 21X12 03

54830027000

Unavailable

19

AH SCREW DIN0912-M 6X12

0912060123

Unavailable

64

HH collar screw M6x60 TX30

0025060606

Unavailable

99

GASKET SET 250/300 08

55130099000

Unavailable

1

ENGINE CASE CPL. 250/300 2012

55130000344

Unavailable

15

HH collar screw M6x12 TX30

0025060126

Unavailable

16

STEEL WASHER 6,4X17X3

50232050001

Unavailable

18

BUSHING PIN 2000

59033018000

Unavailable

60

HH collar screw M6x40 TX30

0025060406

Unavailable

63

HH collar screw M6x55 TX30

0025060556

Unavailable
