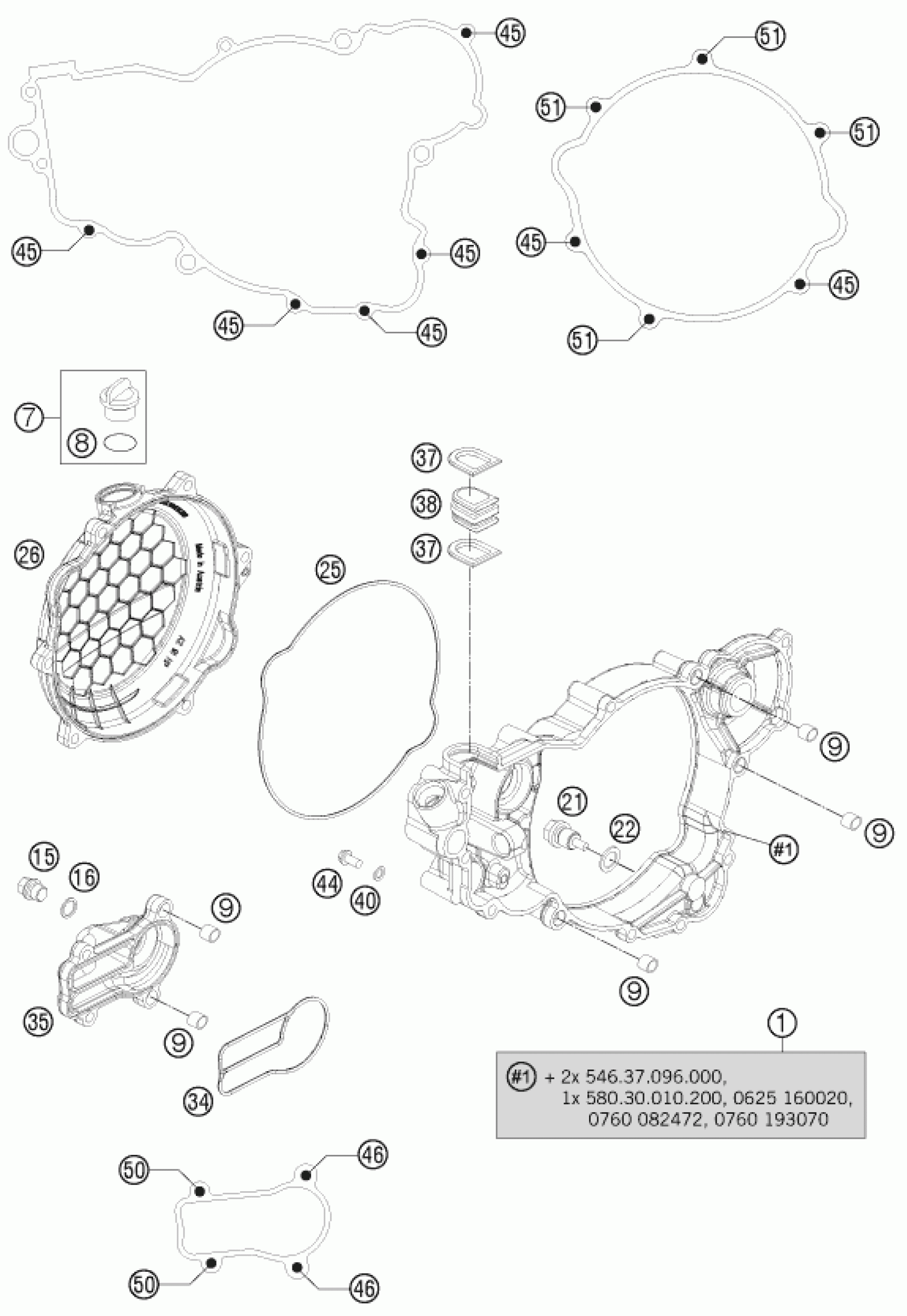

KTM 250 XC 2014 CLUTCH COVER Diagram

#

Description
Price

1

INTERM. CLUTCH COVER CPL.

54830001244

Unavailable

7

OIL FILLER CAP M24x3 W. O-R

58030120000

Unavailable

8

O-RING 19,00X3,00 NBR

0770191015

Unavailable

9

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

15

PLUG DIN0910-M 10X1

0910100003

Unavailable

16

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

21

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

Unavailable

22

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

25

CLUTCH COVER GASKET

55130027000

Unavailable

26

CLUTCH OUTSIDE COVER

5513002610015

Unavailable

34

GASKET WAPU-COVER 250 2003

54835003000

Unavailable

35

WATERPUMP COVER 250/300

54835001100

Unavailable

37

SEALING ELEMENT BOTTOM

54637107000

Unavailable

38

SEALING CARRIER 07

54837091100

Unavailable

40

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

44

HH collar screw M6x12 TX30

0025060126

Unavailable

45

HH collar screw M6x20 TX30

0025060206

Unavailable

46

HH collar screw M6x25 TX30

0025060256

Unavailable

50

HH collar screw M6x55 TX30

0025060556

Unavailable

51

HH collar screw M6x60 TX30

0025060606

Unavailable
