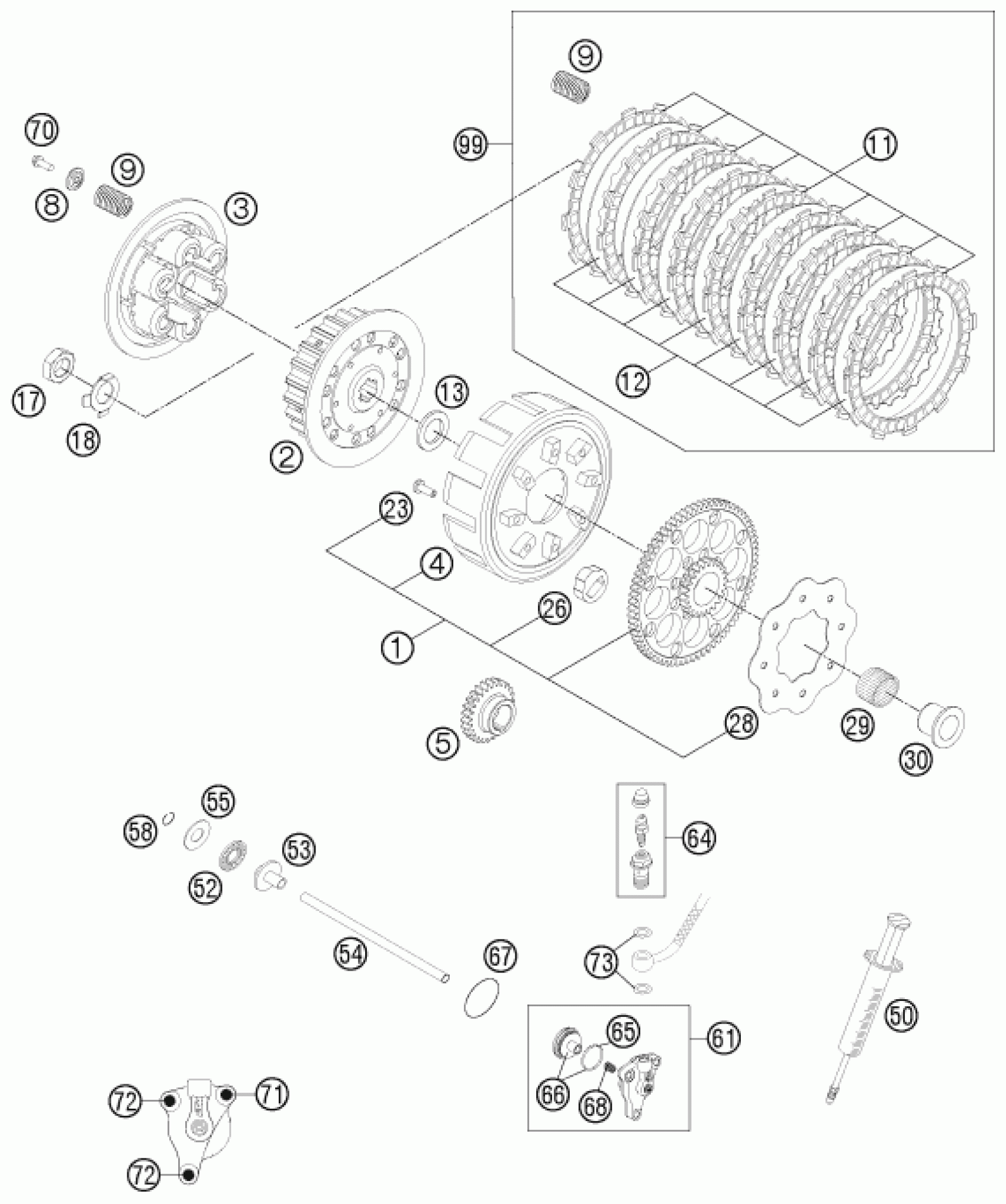

KTM 250 XC 2012 CLUTCH Diagram
#
5
PRIMARY GEAR 26T 2003
54832000026
Unavailable
1
OUTER CLUTCH HUB 72-T CPL. 03
54832001072
Unavailable
2
INNER CLUTCH HUB 546/548 2003
54832002000
Unavailable
3
PRESSURE CAP
54632003100
Unavailable
4
OUTER CLUTCH HUB LOOSE 2003
54832001000
Unavailable
8
SPRING RETAINER 6,2 X 20 X 3,2
58132081000
Unavailable
9
CLUTCH SPRING 2,5X41,9 8,75W
54832080000
Unavailable
11
LINING DISC FCC 04
54832011000
Unavailable
12
STEEL DISC
54832012100
Unavailable
13
SUPPORTWASHER 22,2X35X3 HARDE.
57532013000
Unavailable
17
HEXAGON NUT DIN0936-M18X1,5 R.
0936181505
Unavailable
18
TAB WASHER
78132018000
Unavailable
23
CLUTCH RIVET DIN7338- 6X15
0733060150
Unavailable
26
DAMPING ELEMENT
58132026000
Unavailable
28
RETAINING PLATE
58132028000
Unavailable
29
NEEDLE BEARING K26X30X22ZW.KSE
56532095000
Unavailable
30
INNER RING WITH COLLAR
50332070000
Unavailable
50
VENT INJEKTION HYDR. CLUTCH
50329050000
Unavailable
52
AXIAL NEEDLE BEARING AXK 1226
54637097200
Unavailable
53
PRESSURE PIECE 125-380 '98
50332054051
Unavailable
54
PUSH ROD 250 2003
54832054000
Unavailable
55
AXIAL WASHER AS1226 12X26X1
54637098200
Unavailable
58
CIRCLIP DIN7993-RW12
0993012000
Unavailable
61
OUTPUT CYLINDER CPL. 06
54832061044
Unavailable
64
BLEEDER SCREW CPL. 05
62513020000
Unavailable
65
O-RING
54832067000
Unavailable
66
PISTON CPL.
54832066000
Unavailable
67
O-ring 30x1.5 NBR 70
0770300015
Unavailable
68
PRESSURE SPRING
54832069000
Unavailable
70
HH collar screw M6x16 TX30
0025060166
Unavailable
71
HH collar screw M6x35 TX30
0025060356
Unavailable
72
HH collar screw M6x20 TX30
0025060206
Unavailable
73
sealing ring DIN 7603 10x14x1
0603100141
Unavailable
99
CLUTCH KIT 250/300 '04-'12
54832011010
Unavailable
