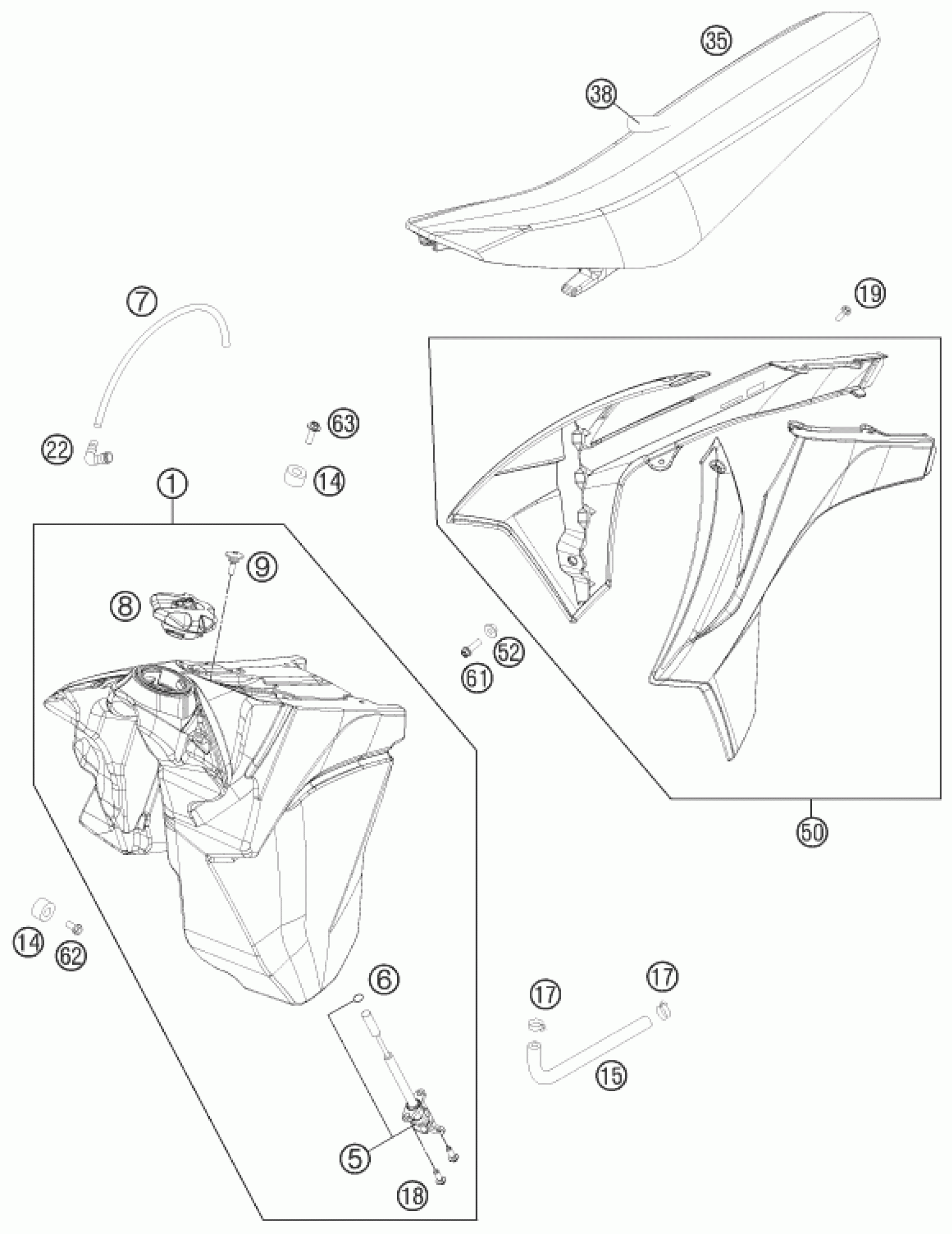

KTM 250 XC 2011 TANK, SEAT Diagram

#

Description
Price

1

FUEL TANK CPL. TRANSP.10L 11

5480751303399

Unavailable

63

HH collar screw M6x20 TX30

0024060206

Unavailable

5

GAS COCK ON/OFF/RES 03

54807004000

Unavailable

6

O-RING 11X2 VITON

0770110021

Unavailable

7

PVC-hose 5.6X10X270MM

78007000270

Unavailable

8

TANK PLUG ORANGE/BLACK

78007008044X4

Unavailable

9

SCREW SEAT FASTENING D=6X23/18

50307011000

Unavailable

14

TANK ROLLER 12X26X12 '98

50307014000

Unavailable

15

FUEL PREFORMED HOSE SX 2001

50307016000

Unavailable

17

CLAMP YDNAC 10128 12MM

58031005000

Unavailable

18

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

19

EJOT PT SCREW K60X20 ALU WS=6

0017060204

Unavailable

22

ANGLE PIECE 90 DEGREE M10X1

51030022000

Unavailable

35

SEAT CPL.

77207040000

Unavailable

38

SEAT COVER

77207040050

Unavailable

50

SPOILER KIT ORANGE SX/XC 2011

7720805400004A

Unavailable

52

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

Unavailable

61

HH collar screw M6x20 TX30

0025060206

Unavailable

62

HH collar screw M6x12 TX30

0025060126

Unavailable
