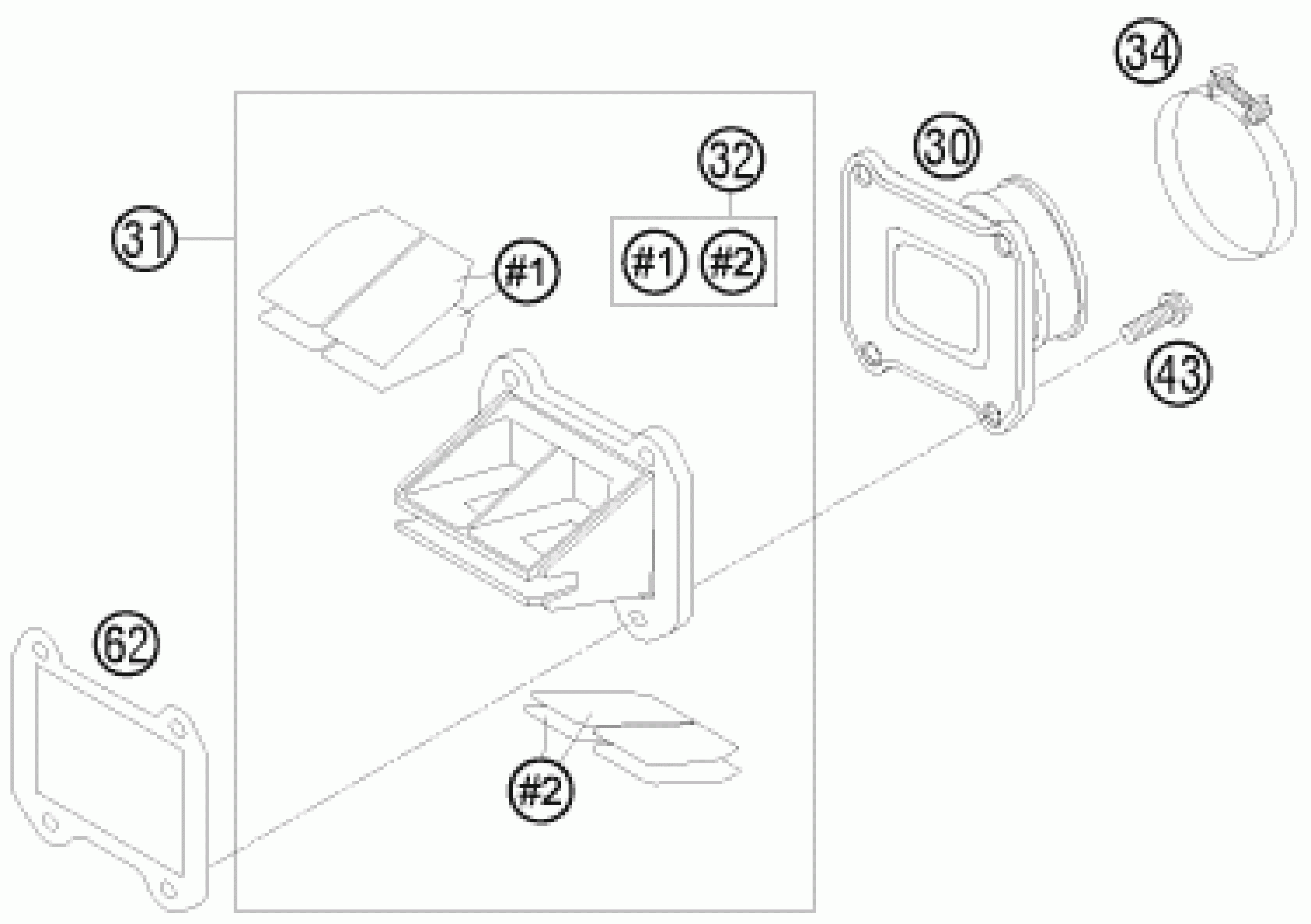

KTM 250 XC 2011 REED VALVE CASE Diagram

#

Description

Price

30

INTAKE FLANGE V-FORCE 04

54830050000

Unavailable

31

REED VALVE ASSY V-FORCE SX

54830051444

Unavailable

32

REED VALVE SET V-FORCE 46X56

54830052100

Unavailable

34

Hose clip GEMI 52mm

54330061000

Unavailable

43

HH collar screw M6x20 TX30

0025060206

Unavailable

62

GASKET REED VALVE CASE

54830062200

Unavailable

32

REED VALVE SETV-FORCE46X64MM

54830052200

Unavailable
