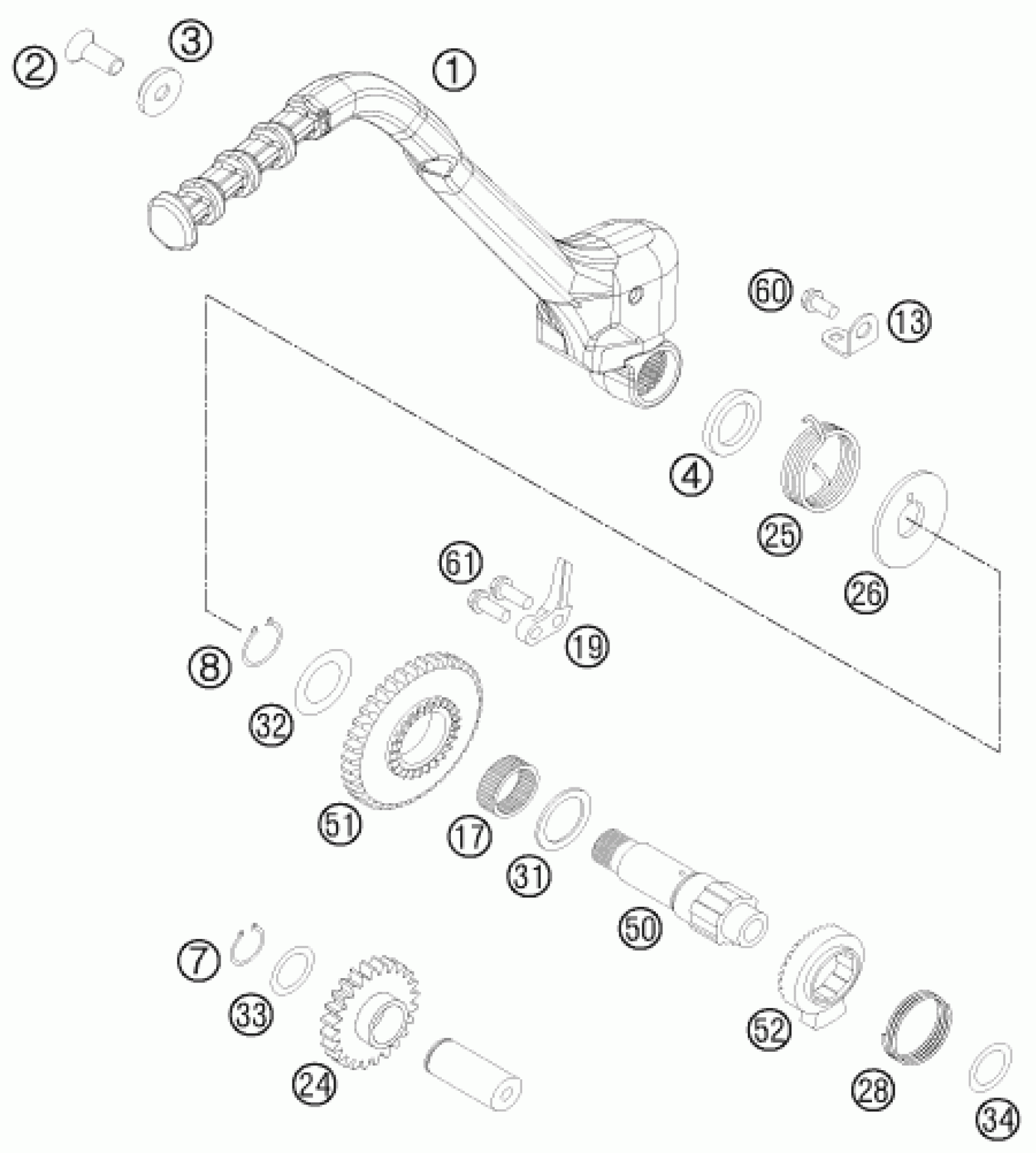

KTM 250 XC 2011 KICK STARTER Diagram

#

Description
Price

1

KICKSTARTER CPL.

77133070144

Unavailable

2

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

Unavailable

3

WASHER 8MM GALVANIZED

54633037000

Unavailable

4

SHAFT SEAL RING 19X30X7 B

0760193070

Unavailable

7

CIRCLIP DIN0471-17X1

0471170010

Unavailable

8

CIRCLIP DIN0471-19X1,2

0471190120

Unavailable

13

SPRING HANGER

54633074000

Unavailable

17

NEEDLE BEARING K 22X26X10 A

0405222610

Unavailable

19

BUMP PART

59033069000

Unavailable

24

INTERMEDIATE GEAR 2003

54833024000

Unavailable

25

KICKSTARTER SPRING

54633025000

Unavailable

26

DRIVING HUB

54633026000

Unavailable

28

RATCHET GEAR SPRING 1,2 MM

58033028000

Unavailable

31

STOP DISK 22,2 X 30 X 1,5

58033031000

Unavailable

32

Shim 20x31.9x1

59033080000

Unavailable

33

STOP DISK 17,2X25X1

54633090000

Unavailable

34

SHIM WASHER DIN0988-17X24X0,5

0988172405

Unavailable

50

KICKSTARTER SHAFT

59033050100

Unavailable

51

KICKSTARTER GEAR 34-T 03

54833051034

Unavailable

52

RATCHET GEAR KICKSTARTER

59033052000

Unavailable

60

HH collar screw M6x10 TX30

0025060106

Unavailable

61

HH collar screw M6x20 TX30

0025060206

Unavailable
