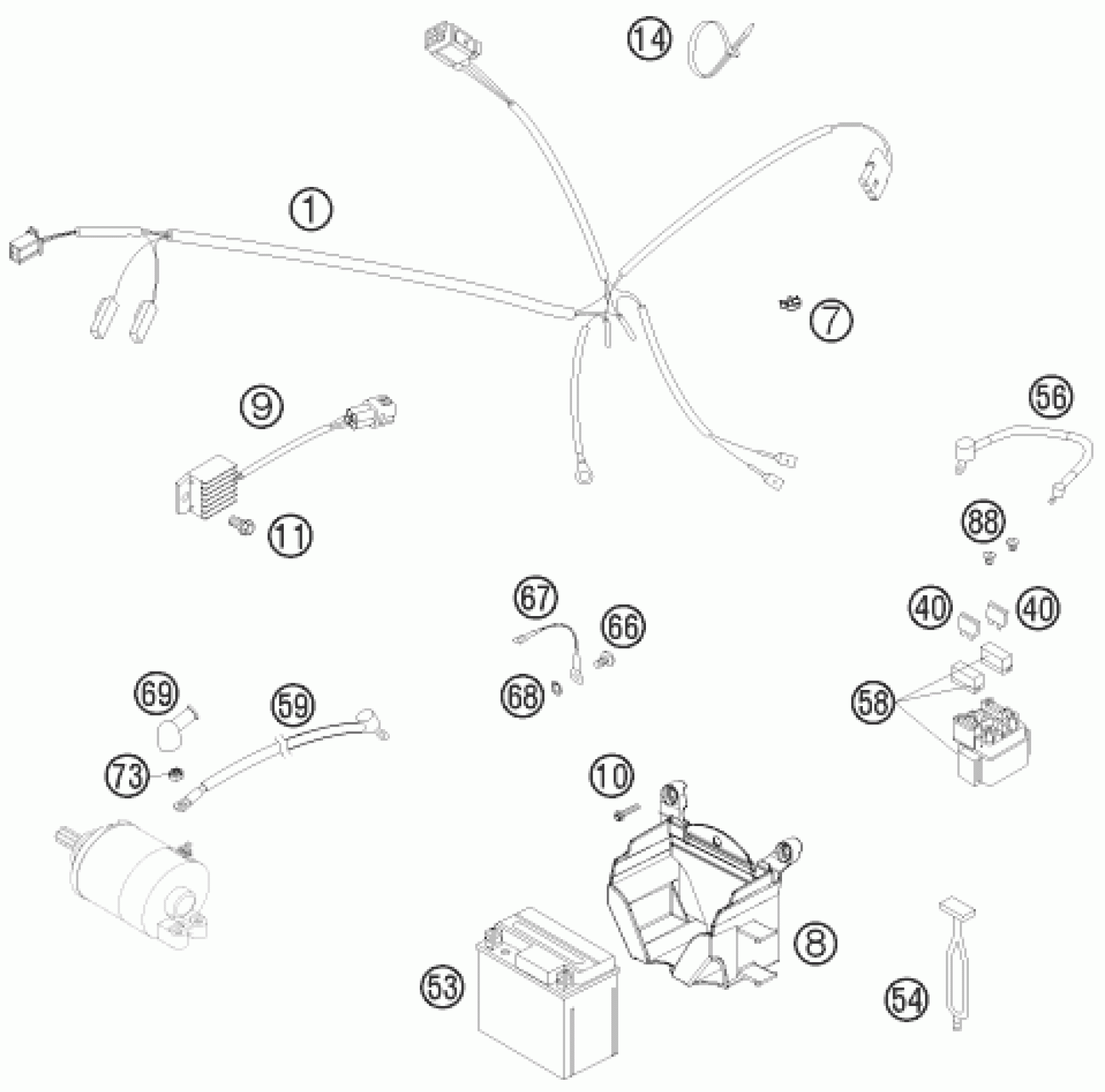

KTM 250 XC 2009 WIRING HARNESS Diagram

#

Description
Price

11

HH collar screw M6x12 TX30

0025060126

Unavailable

14

Cable tie 200/4.6mm black

44011076200

Unavailable

14

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

40

Plug-in fuse, big 10A

58011109110

Unavailable

53

BATTERY 12V 3AH YTX4L-BS

77311053000

Unavailable

54

RUBBER L=145MM

50303018000

Unavailable

56

WIRING HARNESS BATTERY DUKE'99

58711086000

Unavailable

58

Starter reley 12V 99

58211058000

Unavailable

59

STARTERCABLE 1100MM 07

55111059000

Unavailable

66

SPECIAL SCREW M 5,0X10

0009050103

Unavailable

67

GROUND CABLE D=6MM L=140MM '97

58411097100

Unavailable

68

CONTACT WASHER M6 VSV-K6

58411098100

Unavailable

69

PROTECTION CAP F. STARTER ENG.

58440099000

Unavailable

73

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

88

Oval head screw ISO 7380 M 6X8

0902060083

Unavailable

14

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

1

WIRING HARNESS RACING USA 05

59411075100

Unavailable

7

WIRING HOLDER 16MM

57013072100

Unavailable

8

BATTERY CASING

77311055000

Unavailable

9

VOLTAGE REGULATOR 04

80011034000

Unavailable

10

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable
