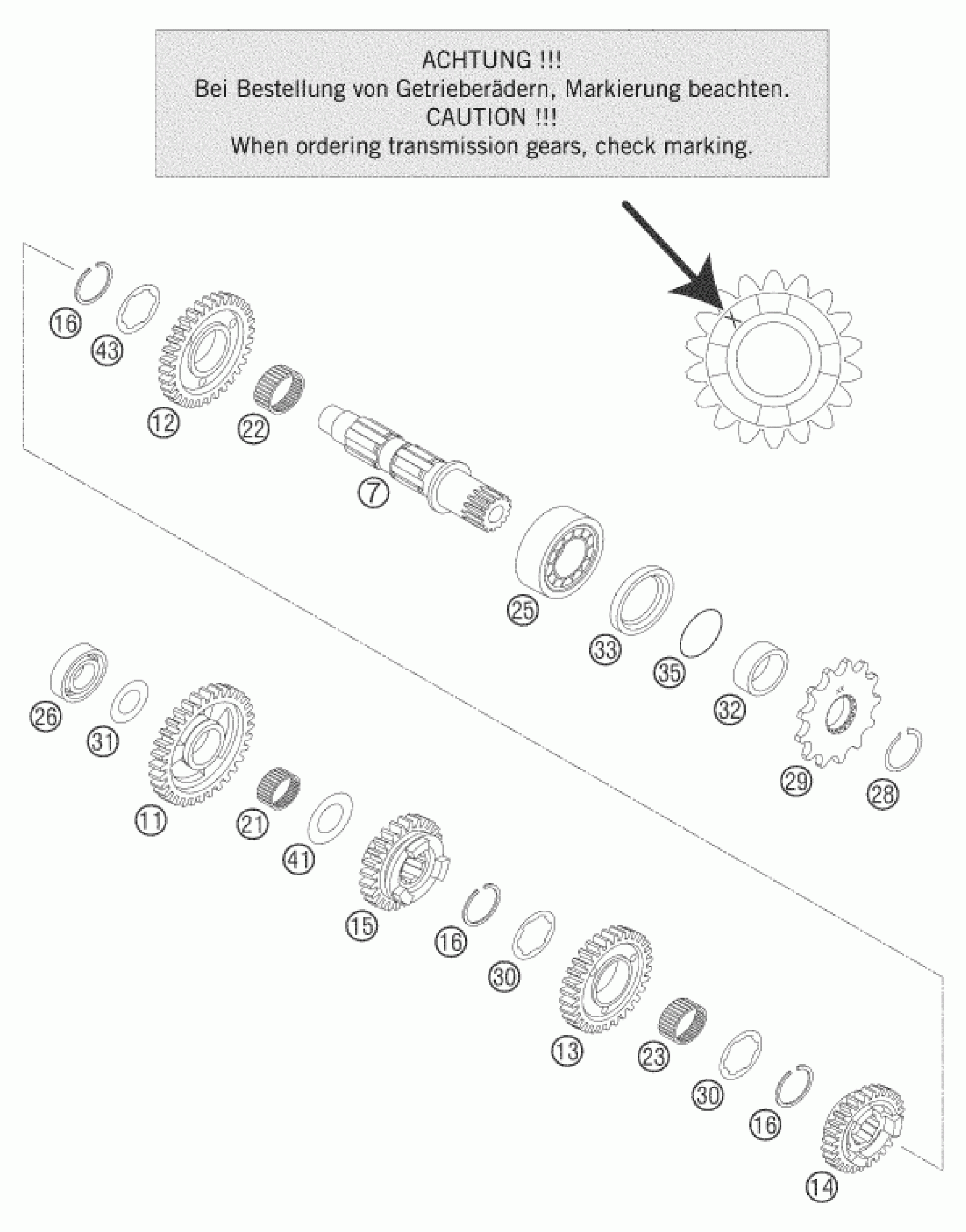

KTM 250 XC 2006 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

7

COUNTERSHAFT 2003

54833007000

Unavailable

11

IDLER GEAR 1ST G. 28-T''1S28''

54833011000

Unavailable

12

IDLER GEAR 2.G 24-Z ''2S24''

54833012200

Unavailable

13

IDLER GEAR 3RD G. 24-T ''3S24'

54833013000

Unavailable

14

SLIDING GEAR 4TH G.24-T ''4S24

54833014000

Unavailable

15

SLIDING GEAR 5TH G.21-T ''5S21

54833015000

Unavailable

16

AXIAL-CIRCLIP 25X1,64

54633096000

Unavailable

21

NEEDLE BEAR. K20X24X13

0405202413

Unavailable

22

NEDDLE BEAR. K24X28X11,9 DIV.

0405242812

Unavailable

23

NEEDLE BEAR. K 22X26X13 TN

0405222613

Unavailable

25

BALL BEARING TM-SC05C20C4 NTN

54833025000

Unavailable

26

BALL BEARING 6203 JR2 C3

0625062035

Unavailable

28

LOCK RING DIN0471-25X1,64SD

52033096000

Unavailable

29

FRONT SPROCKET 13-T

50033029013

Unavailable

29

FRONT SPROCKET 14-T

50033029014

Unavailable

29

FRONT SPROCKET 15-T

50033029015

Unavailable

30

STOP DISC 25,2X32X1,5

59033030000

Unavailable

31

STOP DISC 17,2X30X1

56033030000

Unavailable

32

spacer sleeve drive end

54833032011

Unavailable

33

SHAFT SEAL RING 32X45X6,5

0760324565

Unavailable

35

O-RING 24,80X2,20 P431 NBR 70

0770248022

Unavailable

41

Shim 20x31.9x1

59033080000

Unavailable

43

STOP DISC 25,2X32X1

50333043000

Unavailable
