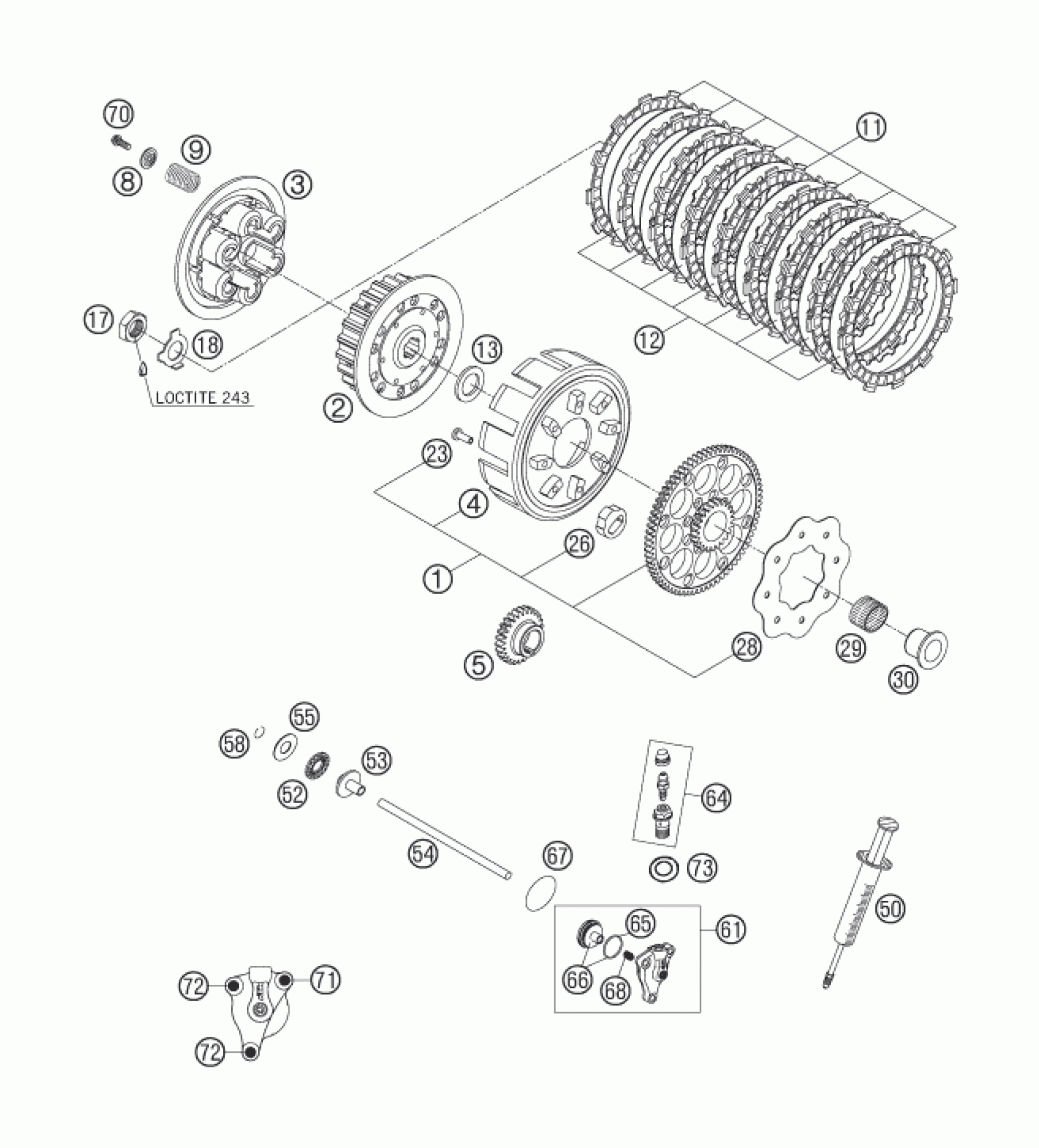

KTM 250 XC 2006 CLUTCH Diagram
#
1
OUTER CLUTCH HUB 72-T CPL. 03
54832001072
Unavailable
2
INNER CLUTCH HUB 546/548 2003
54832002000
Unavailable
3
PRESSURE CAP 250-380 '98
54632003000
Unavailable
18
LOCK WASHER
56532018000
Unavailable
72
HH COLLAR SCREW M 6X20 WS=8
0015060203
Unavailable
68
PRESSURE SPRING
54832069000
Unavailable
13
SUPPORTWASHER 22,2X35X3 HARDE.
57532013000
Unavailable
4
OUTER CLUTCH HUB LOOSE 2003
54832001000
Unavailable
8
SPRING RETAINER 6,2 X 20 X 3,2
58132081000
Unavailable
12
STEEL DISC 1,2 MM
54832012000
Unavailable
17
HEXAGON NUT DIN0936-M18X1,5 R.
0936181505
Unavailable
9
CLUTCH SPRING 2,5X41,9 8,75W
54832080000
Unavailable
11
LINING DISC FCC 04
54832011000
Unavailable
23
CLUTCH RIVET DIN7338- 6X15
0733060150
Unavailable
26
DAMPING ELEMENT
58132026000
Unavailable
28
RETAINING PLATE
58132028000
Unavailable
29
NEEDLE BEARING K26X30X22ZW.KSE
56532095000
Unavailable
30
INNER RING WITH COLLAR
50332070000
Unavailable
50
VENT INJEKTION HYDR. CLUTCH
50329050000
Unavailable
52
AXIAL NEEDLE BEARING AXK 1226
54637097200
Unavailable
53
PRESSURE PIECE 125-380 '98
50332054051
Unavailable
54
PUSH ROD 250 2003
54832054000
Unavailable
55
AXIAL WASHER AS1226 12X26X1
54637098200
Unavailable
58
CIRCLIP DIN7993-RW12
0993012000
Unavailable
61
OUTPUT CYLINDER CPL. 06
54832061044
Unavailable
64
BLEEDER HOLLOW SCREW M10X1
54813020000
Unavailable
67
O-ring 30x1.5 NBR 70
0770300015
Unavailable
70
HH COLLAR SCREW M 6X16 WS=8
0015060163
Unavailable
71
HH COLLAR SCREW M 6X35 WS=8
0015060353
Unavailable
65
O-RING
54832067000
Unavailable
66
PISTON CPL.
54832066000
Unavailable
73
CU-SEAL RING DIN7603-10X16X1
42013226000
Unavailable
5
PRIMARY GEAR 26T 2003
54832000026
Unavailable
