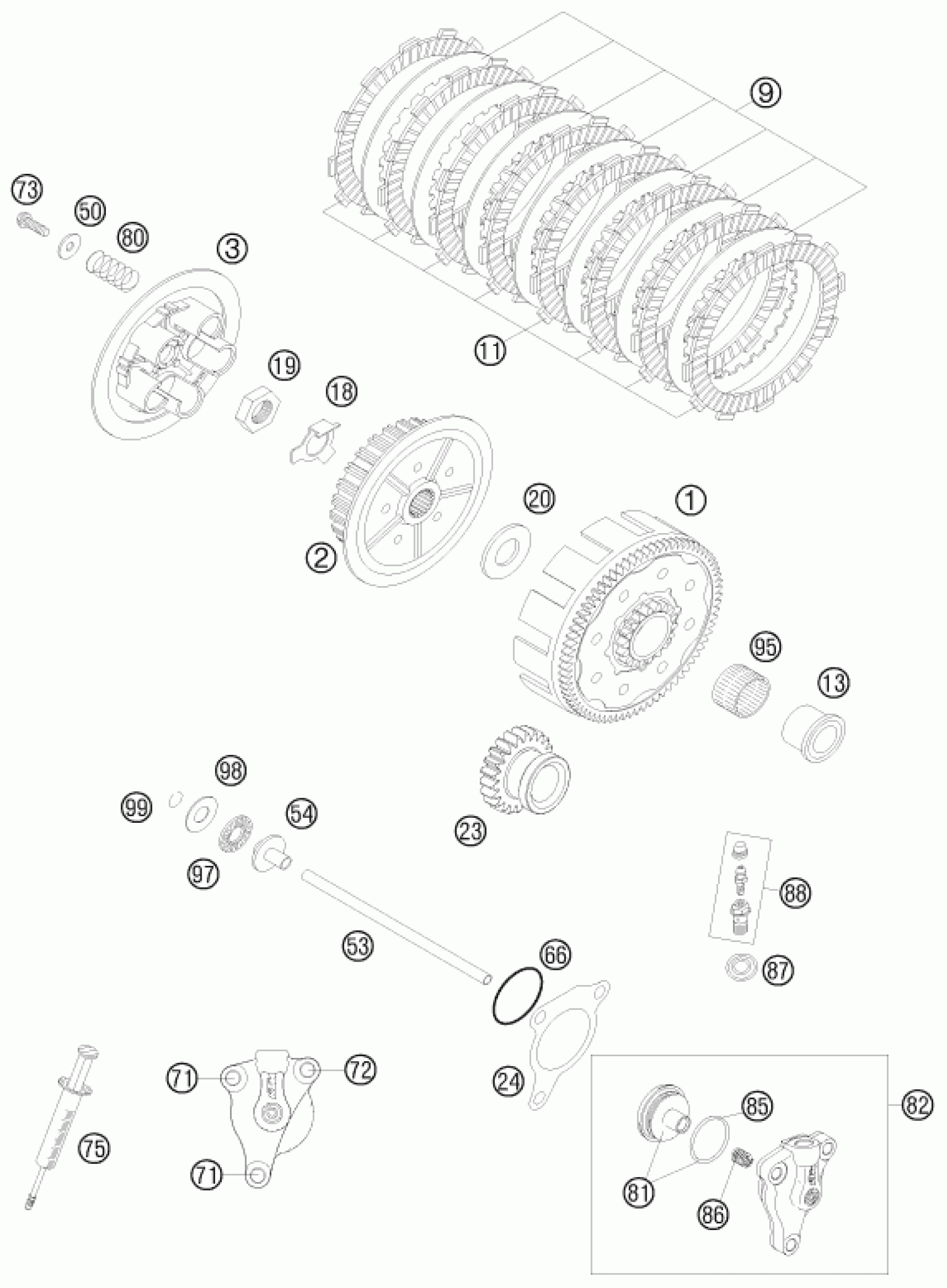

KTM 250 SXS-F 2008 CLUTCH Diagram
#
Description
Price
73
HH COLLAR SCREW M 6X25 WS=8
0015060253
Unavailable
75
VENT INJEKTION HYDR. CLUTCH
50329050000
Unavailable
80
CLUTCH SPRING
77032005000
Unavailable
81
PISTON CPL.
54832066000
Unavailable
82
OUTPUT CYLINDER CPL. 06
54832061044
Unavailable
85
O-RING
54832067000
Unavailable
86
PRESSURE SPRING
54832069000
Unavailable
87
CU-SEAL RING DIN7603-10X16X1
42013226000
Unavailable
88
BLEEDER HOLLOW SCREW M10X1
54813020000
Unavailable
95
NEEDLE BEARING K26X30X22ZW.KSE
56532095000
Unavailable
97
AXIAL NEEDLE BEARING AXK 1226
54637097200
Unavailable
98
AXIAL WASHER AS1226 12X26X1
54637098200
Unavailable
99
CIRCLIP DIN7993-RW12
0993012000
Unavailable
20
STOP DISK 20X39,6X3 '98
50332020000
Unavailable
23
PRIMARY GEAR 22T. 05
77032000122
Unavailable
24
GASKET FOR SLAVE CYLINDER
59032065000
Unavailable
50
WASHER 6,2X18X2
50232050000
Unavailable
53
PUSH ROD 05
77032054000
Unavailable
54
PRESSURE PIECE 125-380 '98
50332054051
Unavailable
66
O-ring 30x1.5 NBR 70
0770300015
Unavailable
71
HH COLLAR SCREW M 6X20 WS=8
0015060203
Unavailable
72
HH COLLAR SCREW M 6X35 WS=8
0015060353
Unavailable
2
INNER CLUTCH HUB 05
77032002000
Unavailable
3
PRESSURE PLATE 05
77032003000
Unavailable
9
INTERMEDI. DISC STEEL 05
77032010000
Unavailable
11
LINING DISC 3,0MM 05
77032011000
Unavailable
13
INNER RING 20X26X25,9 '98
50332013000
Unavailable
18
SHEET METAL LOCK 1,5MM '98
50332018000
Unavailable
19
HEXAGON NUT DIN0936-M18X1,5 R.
0936181505
Unavailable
1
OUTER CLUTCH CPL.
77032001100
Unavailable
