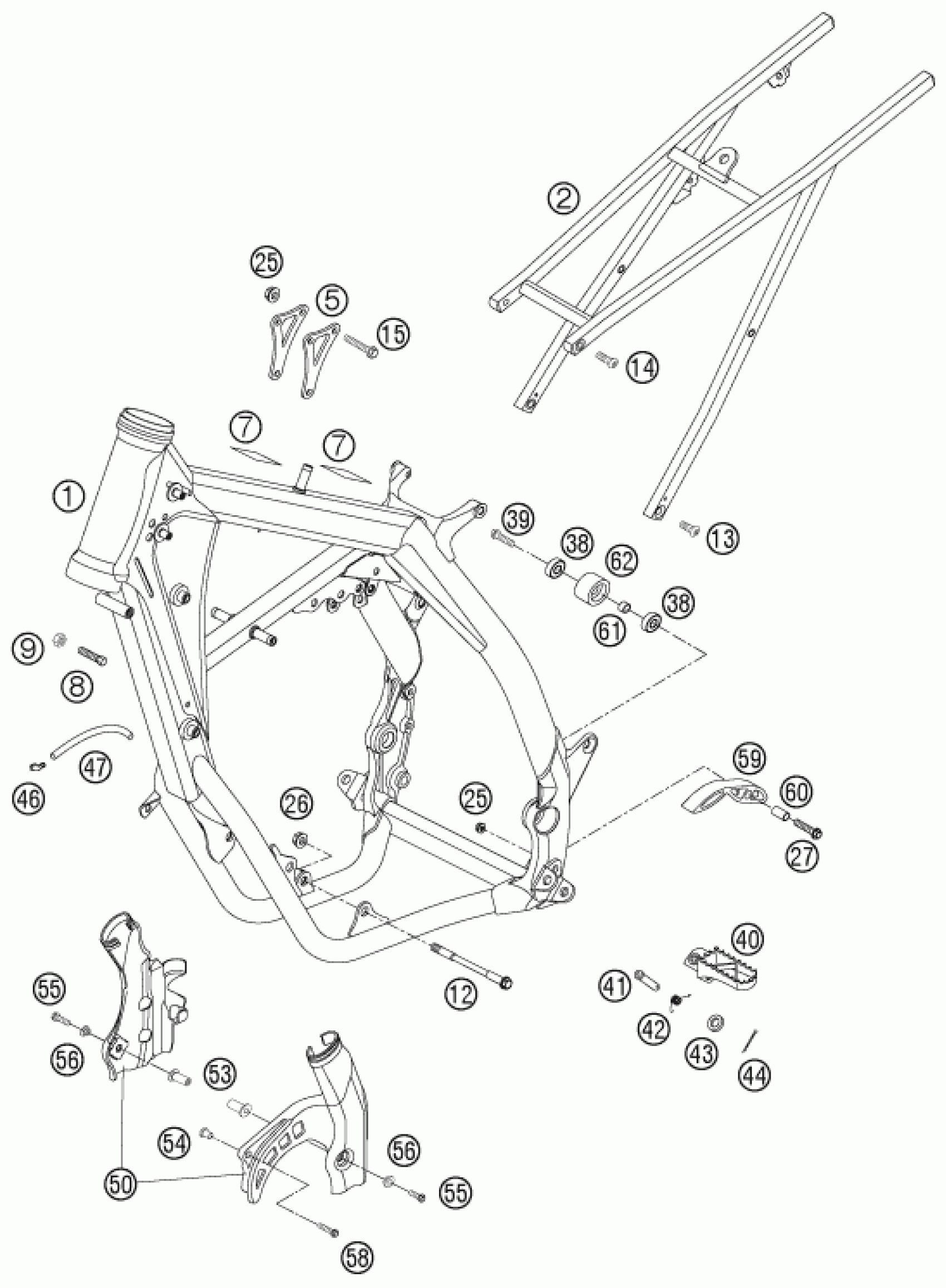

KTM 250 SXS 2006 FRAME Diagram
#
2
SUB FRAME CPL. 2-T. EXC 05
54803002244
Unavailable
5
REINFORCING BRACKET 250 03
54803013000
Unavailable
1
FRAME
SXS06250550
Unavailable
7
ADH. FOIL TRANSP. 80X80 MM 04
50307012000
Unavailable
8
SPECIAL SCREW M8X26 WS=10
59001037000
Unavailable
9
Hexagon nut DIN934 M8
0934080003
Unavailable
12
engine brac.scr. M10x105 WS13
54603013000
Unavailable
13
SPROCKET SCREW-AH M8X20 WS=6
54610052000
Unavailable
14
SPROCKET SCREW-AH M8X26 WS=6
54510052100
Unavailable
15
HH COLLAR SCREW M 8X44 WS13
56530079000
Unavailable
25
Self locking nut M8 10.9
54310086200
Unavailable
26
SELF LOCKING NUT M10 CU WS=14
54310086100
Unavailable
27
HH COLLAR SCREW M 8X35 WS=10
0015080353
Unavailable
38
Grooved ball bearing 608 2RS C
0625006087
Unavailable
39
HH COLLAR SCREW M 8X30 WS=10
0015080303
Unavailable
40
FOOT PEG L/S SILVER 02
59003040250
Unavailable
40
FOOT PEG R/S SILVER 02
59003041250
Unavailable
41
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
Unavailable
42
FOOTREST SPRING L/S & R/S
54603041000
Unavailable
43
washer DIN 125 A 10.5
0125100003
Unavailable
44
PIN DIN0094-3,2X25 STEEL
0094032253
Unavailable
46
ANGLE PIECE '97
50303089000
Unavailable
47
PVC-HOSE 7X10 PER METER
55007016001
Unavailable
50
FRAME PROTECTION SET 05
54803094100
Unavailable
53
BLIND PLUG-IN NUT M5 WN 22A 03
54803092050
Unavailable
54
BUSHING F. SPROCKET COVER RAC.
59030060050
Unavailable
55
HH COLLAR SCREW M 5X25 WS=6
0014050253
Unavailable
56
Bush f. frame protection 03
54803092060
Unavailable
58
HH COLLAR SCREW M 6X40 WS=8
0015060403
Unavailable
59
CHAIN SLIDING PIECE BELOW '97
51103053000
Unavailable
60
BUSHING 8,2X10X20
51103053051
Unavailable
61
BUSHING 8.2 X 12 X 6
74003021000
Unavailable
62
CHAIN ROLL D=30MM
50203053000
Unavailable
