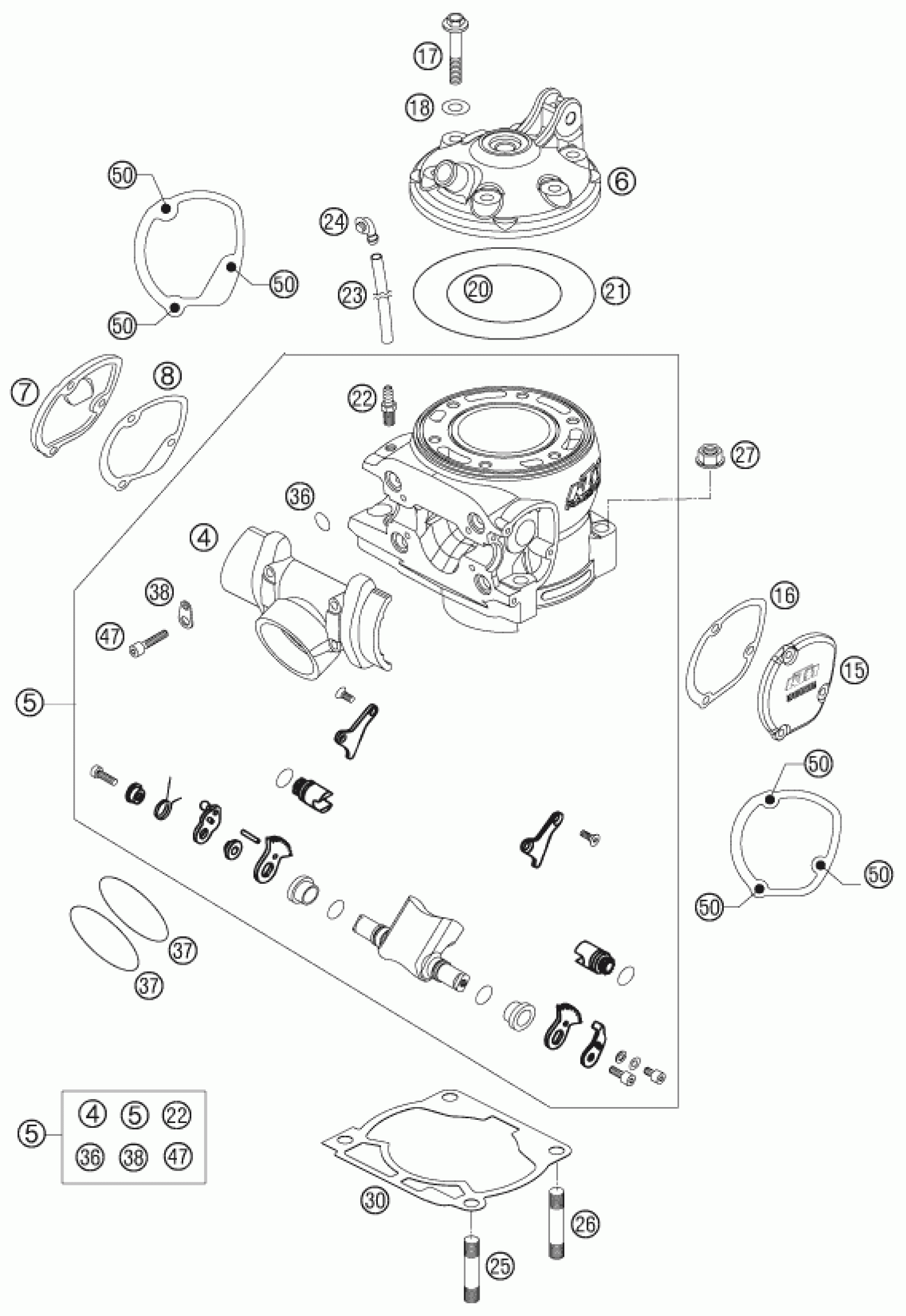

KTM 250 SXS 2006 CYLINDER, CYLINDER HEAD Diagram

#

Description
Price

5

CYLINDER CPL. 250 SXS 06

SXS06250001

Unavailable

6

CYLINDER HEAD 250 SX ''2509''

54830006200

Unavailable

7

CONTROL COVER R/S 2001

5473700700098

Unavailable

8

GASKET FOR CONTROL COVER R/S

54737008000

Unavailable

15

CONTROL COVER L/S 2001

5473700500098

Unavailable

16

GASKET FOR CONTROL COVER L/S

54737006000

Unavailable

17

COLLAR SCREW M 8X35 WS=13

54830079000

Unavailable

18

CU-SEAL RING 8 X 16 X 1

56530080000

Unavailable

20

O-RING 76,00X2,00 VITON

0770760021

Unavailable

21

O-RING 114,00X2,00 SILICONE

0770114020

Unavailable

22

VACUUM CONNECTION M 6X1

58336020090

Unavailable

23

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

24

ANGLE PIECE '97

50303089000

Unavailable

25

STUD DIN0835-M10X35

0835100351

Unavailable

26

STUD DIN0835-M10X40

0835100403

Unavailable

27

COLLAR NUT M10 WS=13

54630044000

Unavailable

30

GASKET CYLINDER BASE 0,2MM 03

54830030002

Unavailable

30

GASKET CYLINDER BASE 0,4MM 03

54830030004

Unavailable

30

GASKET CYLINDER BASE 0,5MM 03

54830030005

Unavailable

4

INTERMEDIATE FLANGE 250/300

54837001100

Unavailable

30

GASKET CYLINDER BASE 0,75MM 03

54830030075

Unavailable

36

O-RING 11,3 X2,4 SILICON

0770116241

Unavailable

37

O-RING 44,00X3,00 VITON

0770440030

Unavailable

38

RETAINING PLATE

51005074000

Unavailable

47

AH SCREW DIN0912-M 6X30

0912060303

Unavailable

50

HH COLLAR SCREW M 5X12 WS=6

0014050123

Unavailable
