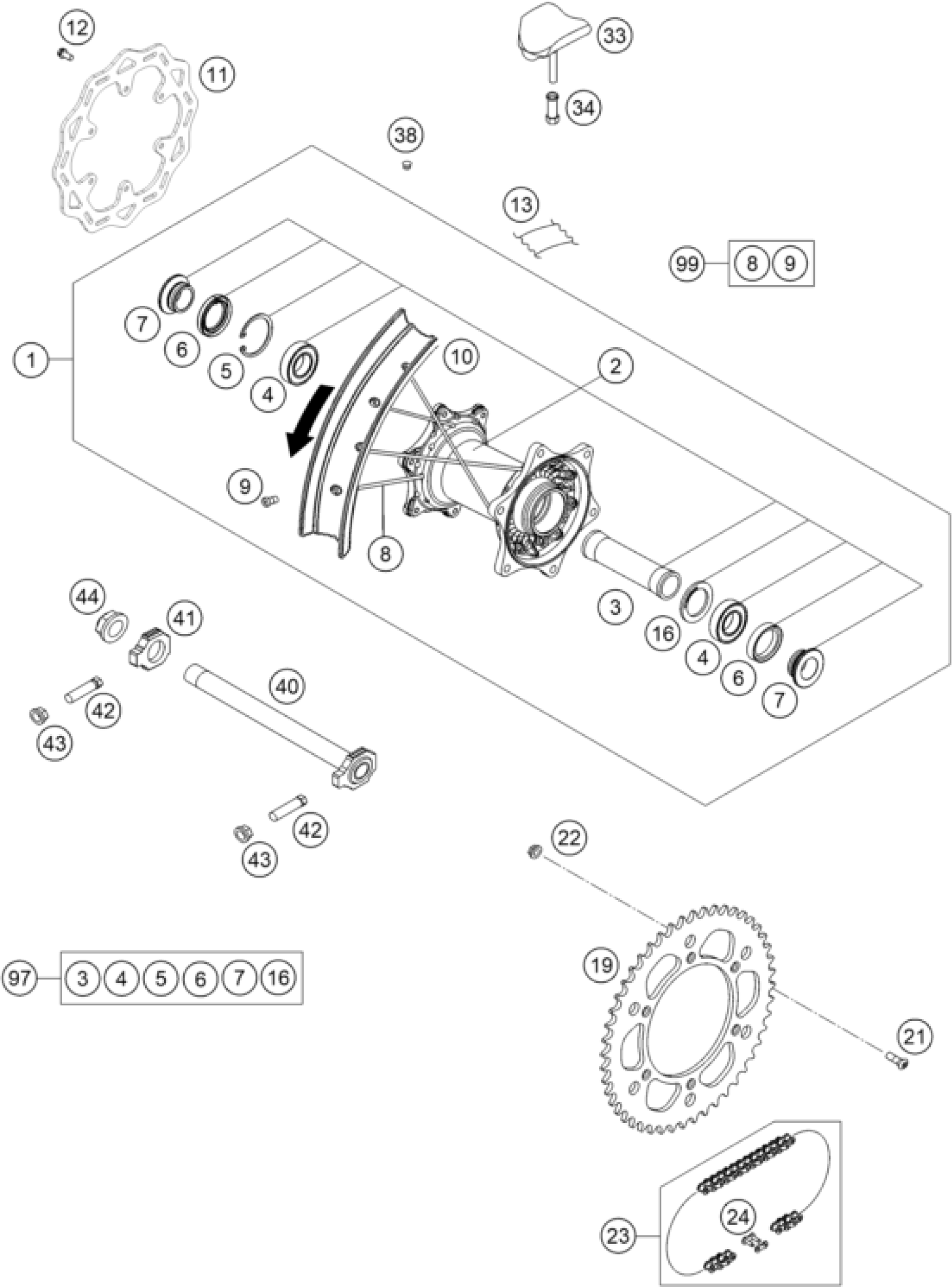

KTM 250 SX-F TROY LEE DESIGNS 2021 REAR WHEEL Diagram

#

Description
Price

1

Factory rear wheel 19”

7901090114404

Unavailable

2

Rear wheel hub cmpl.

7901091024404

Unavailable

3

BEARING DISTANCE TUBE 121,5MM

77710011000

Unavailable

4

Grooved ball bear.6005 DDU2CG2

0625060058

Unavailable

5

CIRCLIP DIN0472-47X1,75

0472047175

Unavailable

6

Radial shaft seal 32X47X7 BSL

0760324771

Unavailable

7

DISTANCE BUSHING REAR WHEEL

77710016000

Unavailable

8

SPOKE M4,5X205-19'' BLACK 1

7901007120530

Unavailable

9

Spoke nipple M4,5 orange

7910907200004S

Unavailable

10

Rim 2,15x19" DID

2501007000030A

Unavailable

11

BRAKE DISC REAR 220MM 16

79010060000

Unavailable

12

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

13

Tube protector 18" and 19"

50310073200

Unavailable

16

DISTANCE RING

77710015000

Unavailable

19

SPROCKET 48-T BLACK

7771015104830

Unavailable

19

Rear sprocket 50-t, black

7771015105030

Unavailable

19

Rear sprocket 51-t

7771015105130

Unavailable

19

Rear sprocket 52-t, black

7771015105230

Unavailable

21

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

Unavailable

22

Hex. nut DIN EN 1661 M8 WS13

06923080003

Unavailable

23

CHAIN 520 GPXV GOLD

78910065118

Unavailable

24

CONNECTING LINK F. 78910065118

78910066000

Unavailable

33

Tyre locker 2,15"

78110090200

Unavailable

34

NUT FOR WHEEL HOLDER

77110090050

Unavailable

38

PLUG FOR RIM

55003135000

Unavailable

40

WHEEL SPINDLE CPL. '13

77710085044

Unavailable

41

CHAIN TENSIONER R/S

77710084000

Unavailable

42

screw M10x1.25x50 WS10

50304040100

Unavailable

43

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

44

Collar nut M25X1.5 WS=32 05

61010086000

Unavailable

97

REAR WHEEL REP. KIT

77710015010

Unavailable

99

Spoke kit back 19#

00050000987S

Unavailable
