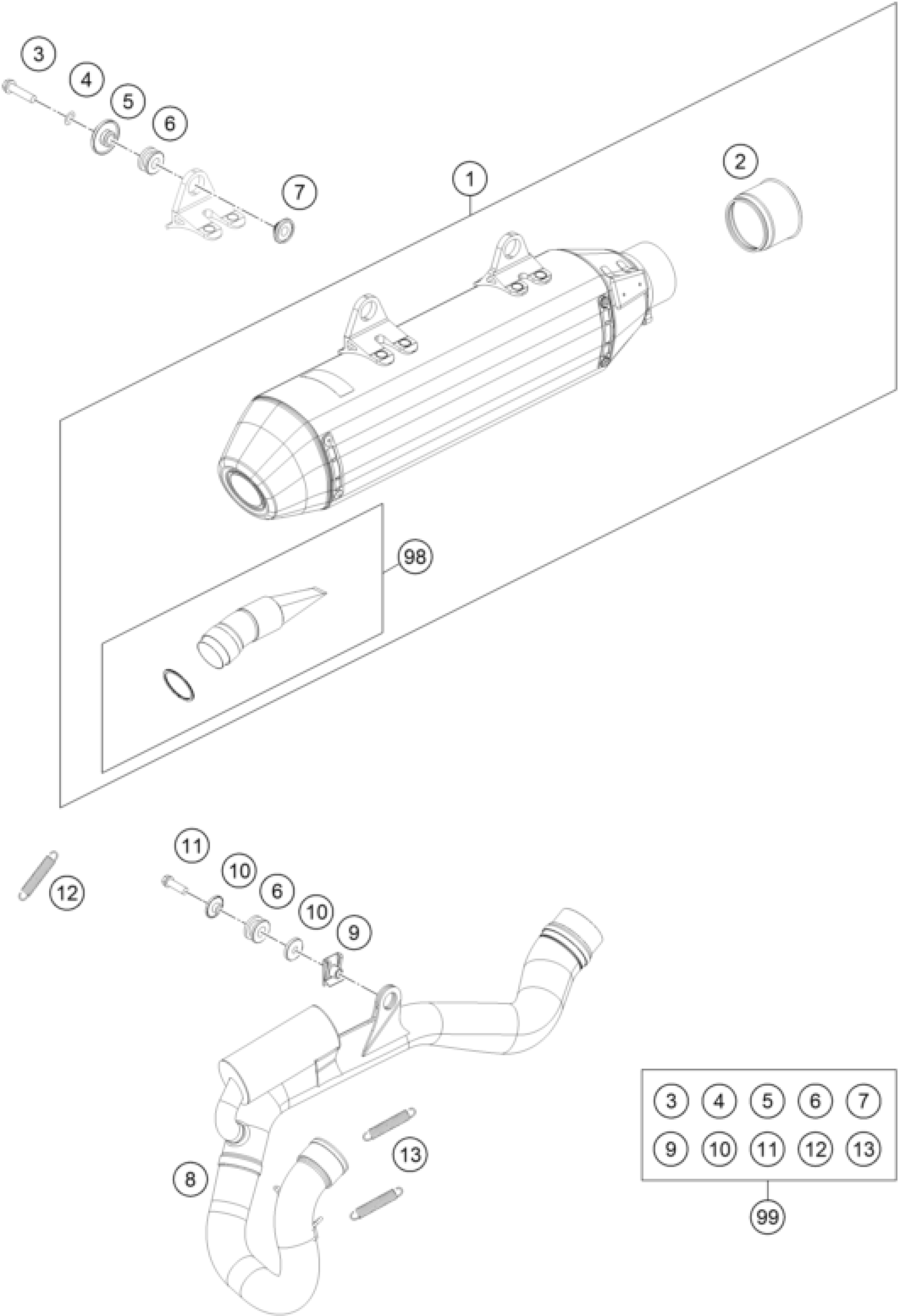

KTM 250 SX-F FACTORY EDITION 2016 EXHAUST SYSTEM Diagram

#

Description
Price

98

FMF SPARK-ARRESTOR INSERT KIT

79005079540

Unavailable

99

EXHAUST PARTS KIT 12-14

00050000815

Unavailable

1

MUFFLER 250/450 FMF

79005079500

Unavailable

2

KTM SXF'15 FE INLET SLEEVE

79005079560

Unavailable

3

HH collar screw M6x35 TX30

0025060356

Unavailable

4

spring washer DIN 137 B - 6

0137060003

Unavailable

5

BUSHING 7.5x12x28x8.3 11

77205169000

Unavailable

6

DAMP. COMPON. BLACK

77205068000

Unavailable

7

BUSHING 7.5x12x20x8.2 11

77205069000

Unavailable

8

EXHAUST PIPE SX

79005007000

Unavailable

9

RANGE CHANGE METAL NUT M8

54603048000

Unavailable

10

BUSHING FOR EXHAUST SUPPORT 03

59405069000

Unavailable

11

HH collar screw M8x25

0025080256

Unavailable

12

TEN.SPRING L=75MM EY.MOVEABLE

50305116000

Unavailable

13

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

Unavailable
