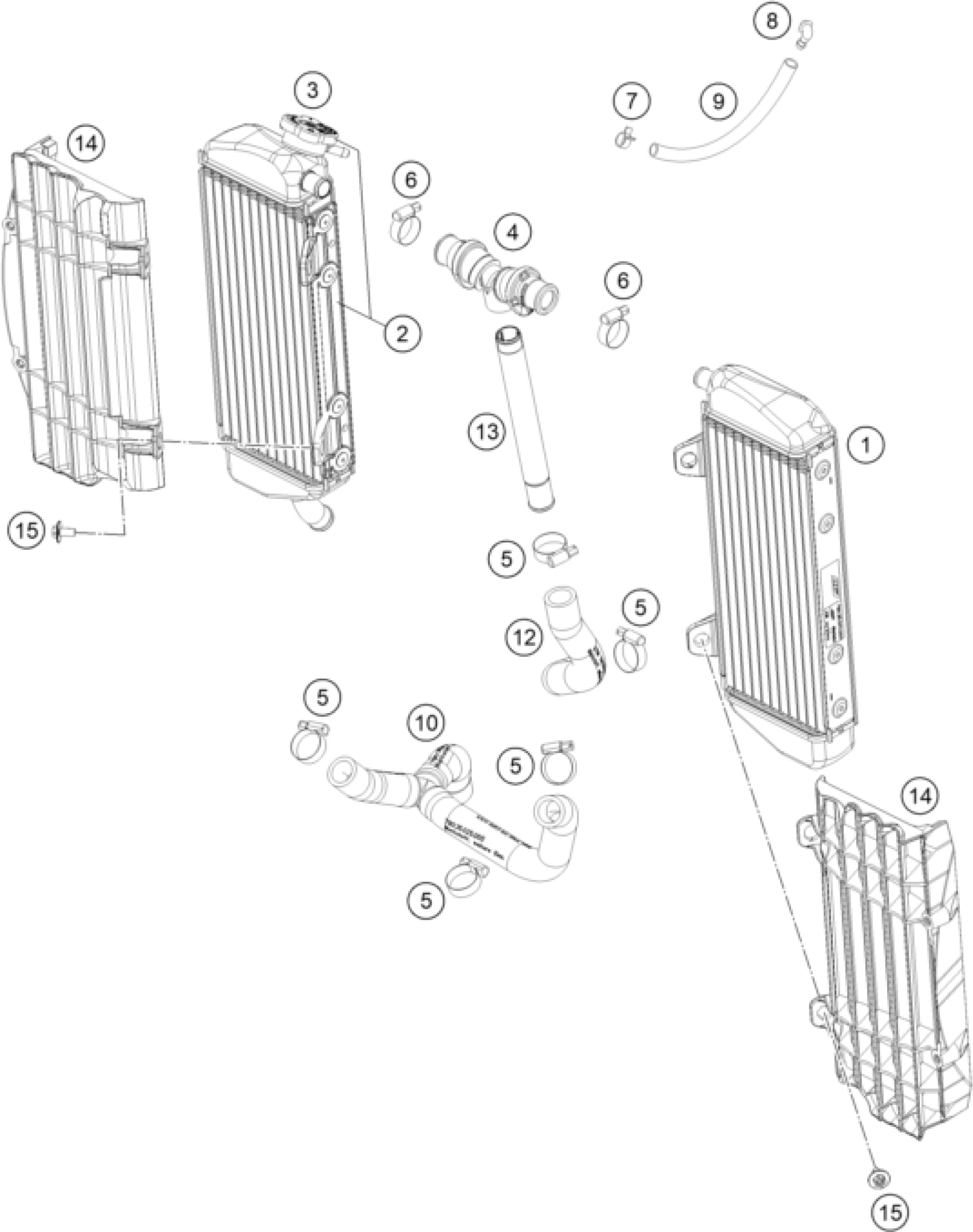

KTM 250 SX-F FACTORY EDITION 2015 COOLING SYSTEM Diagram

#

Description

Price

1

RADIATOR LEFT 2016

79035007000

Unavailable

12

HOSE ENGINE Y-PIECE

79035024000

Unavailable

2

RADIATOR RIGHT 2016

79035008000

Unavailable

3

RADIATOR CAP 1,8 BAR

79035016000

Unavailable

4

Y-PIECE CPL.

79035071044

Unavailable

5

HOSE CLAMP GEMI 18-29

10001020000

Unavailable

6

HOSE CLAMP NORMA 14/24

42013037400

Unavailable

7

CLAMP YDNAC 10096F (9,6MM)

59007017000

Unavailable

8

ANGLE PIECE '97

50303089000

Unavailable

9

PVC-HOSE 6X9

50335030001

Unavailable

10

RADIATOR HOSE WITH Y-PIECE

79035025033

Unavailable

13

HOSE CONNECTOR L=172,5

77235073000

Unavailable

14

RADIATOR PROTECT 2016

7903503400030

Unavailable

15

COLLAR SCREW M6X12 TX

0024060123

Unavailable
